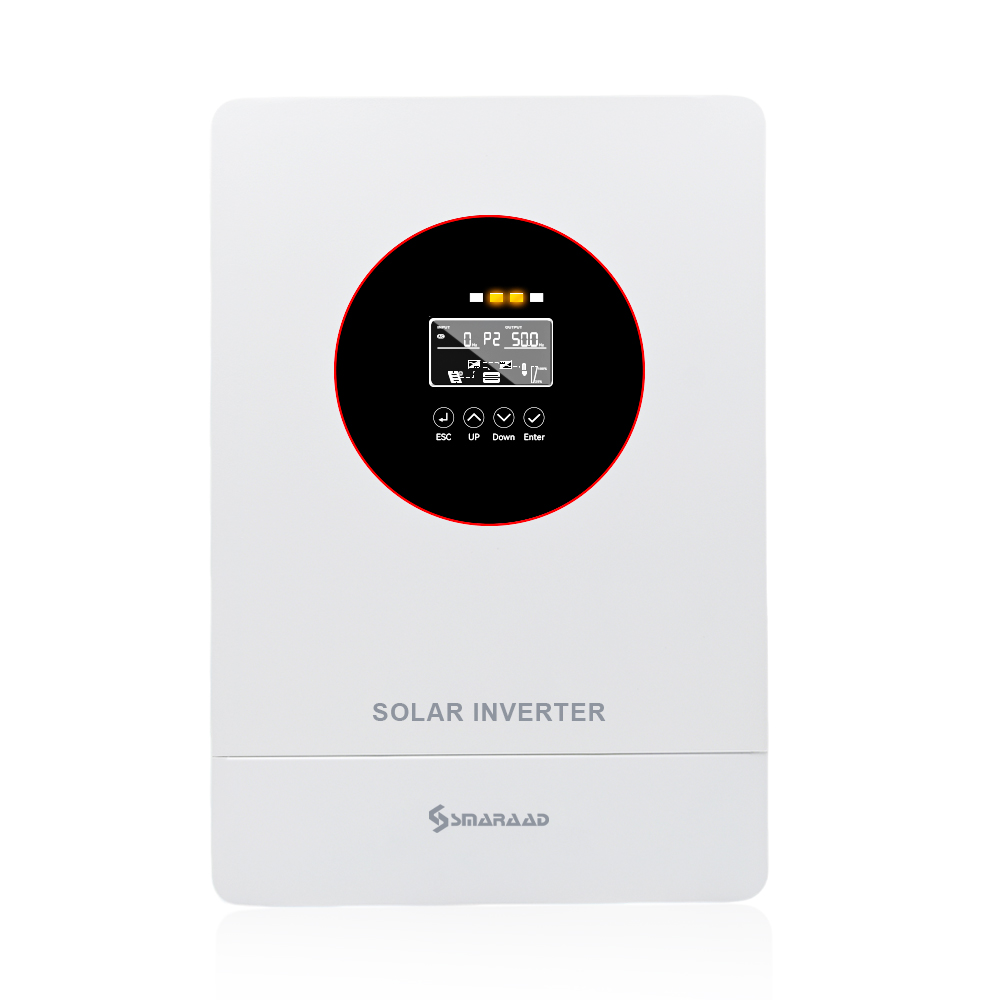

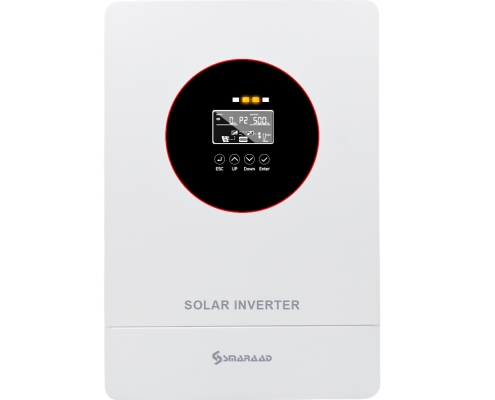

DFHY Series All-In-One Hybrid Solar Energy Storage Inverter With Mppt & Ups Function 3.6KW

All-In-One Hybrid Solar Energy Storage Inverter With Mppt & Ups Function

The Dfhy Series 3.6kw Solar Inverter is a multifunctional hybrid solar energy storage solution, integrating a high-efficiency MPPT solar charge controller, a high-frequency pure sine wave inverter, and a professional UPS function module in one compact unit. Designed for off-grid backup power and self-consumption applications, this inverter can operate with or without lithium/lead-acid batteries, seamlessly integrating solar panels, the utility grid, and backup generators to power household loads. With optional WIFI/GPRS remote monitoring and CAN/RS485 BMS communication, it delivers intelligent energy management, stable power output, and flexible system configuration for residential and small commercial renewable energy setups.

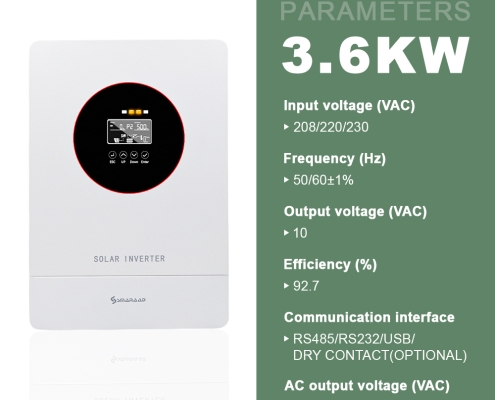

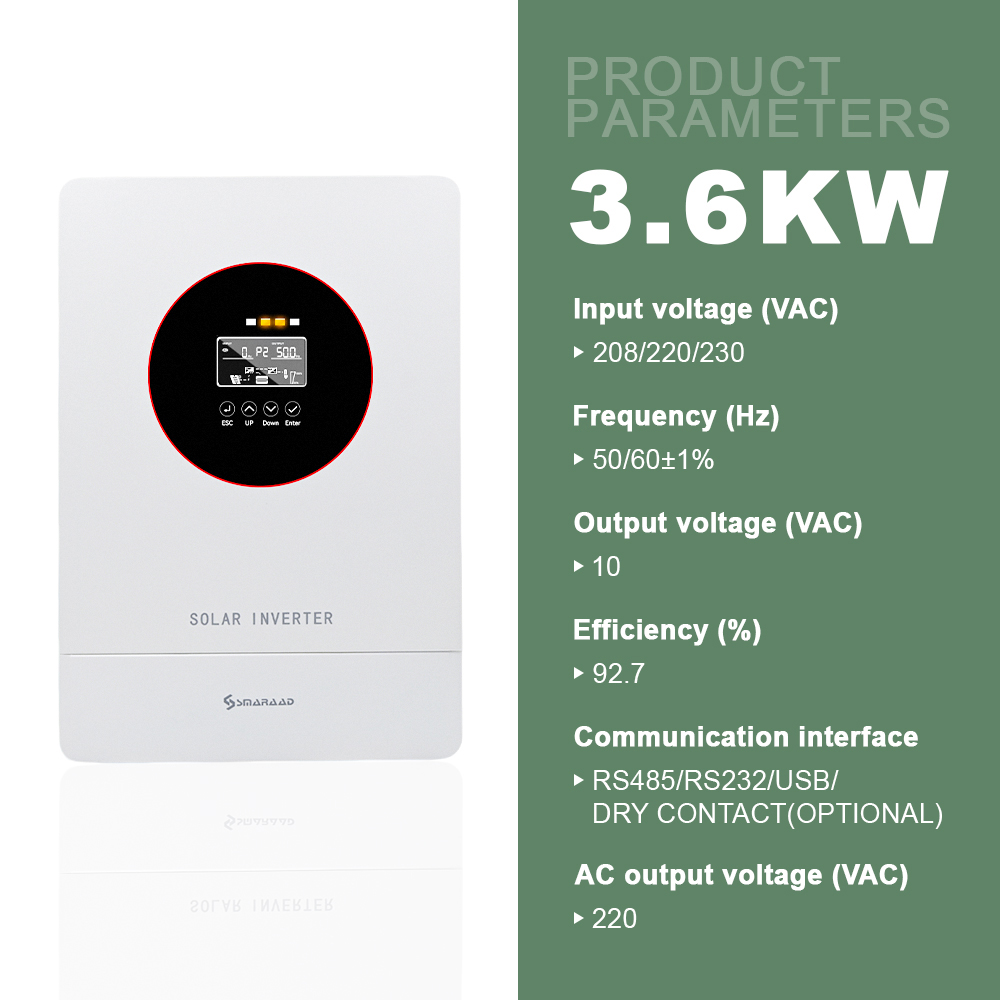

Rated Power: 3.6kw, power factor 1
Mppt Range: 40V~450V (max 500Vdc)
Output: Pure sine wave AC output
Communication: CAN/RS485 for BMS communication
Remote Monitoring: WIFI/GPRS (optional)
Battery Support: Works with lithium/lead-acid batteries, or can operate without batteries

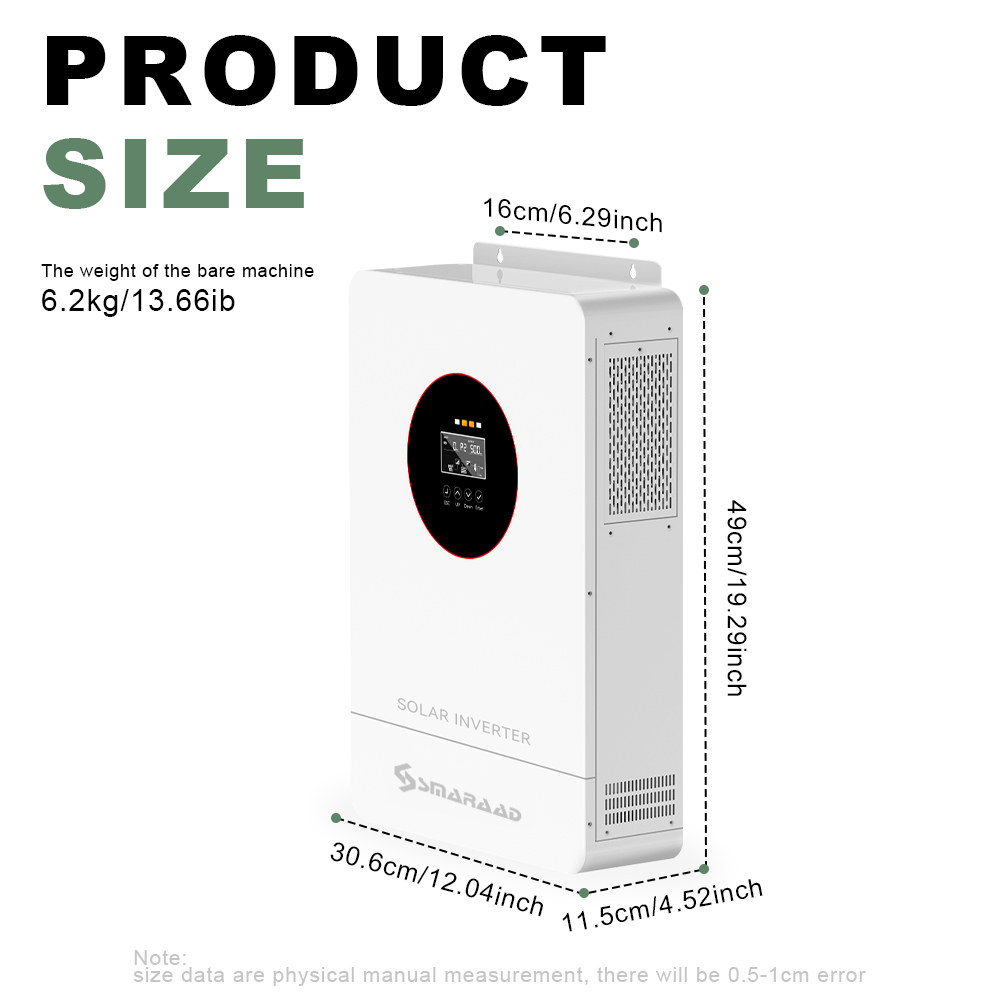

Weight: 6.2kg (13.66lb)

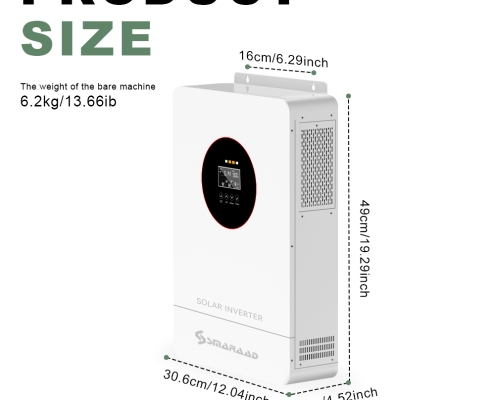

Dimensions: 49cm × 30.6cm × 11.5cm (19.29 × 12.04 × 4.52 inches)

Get A Quote

System Integration & Working Principle

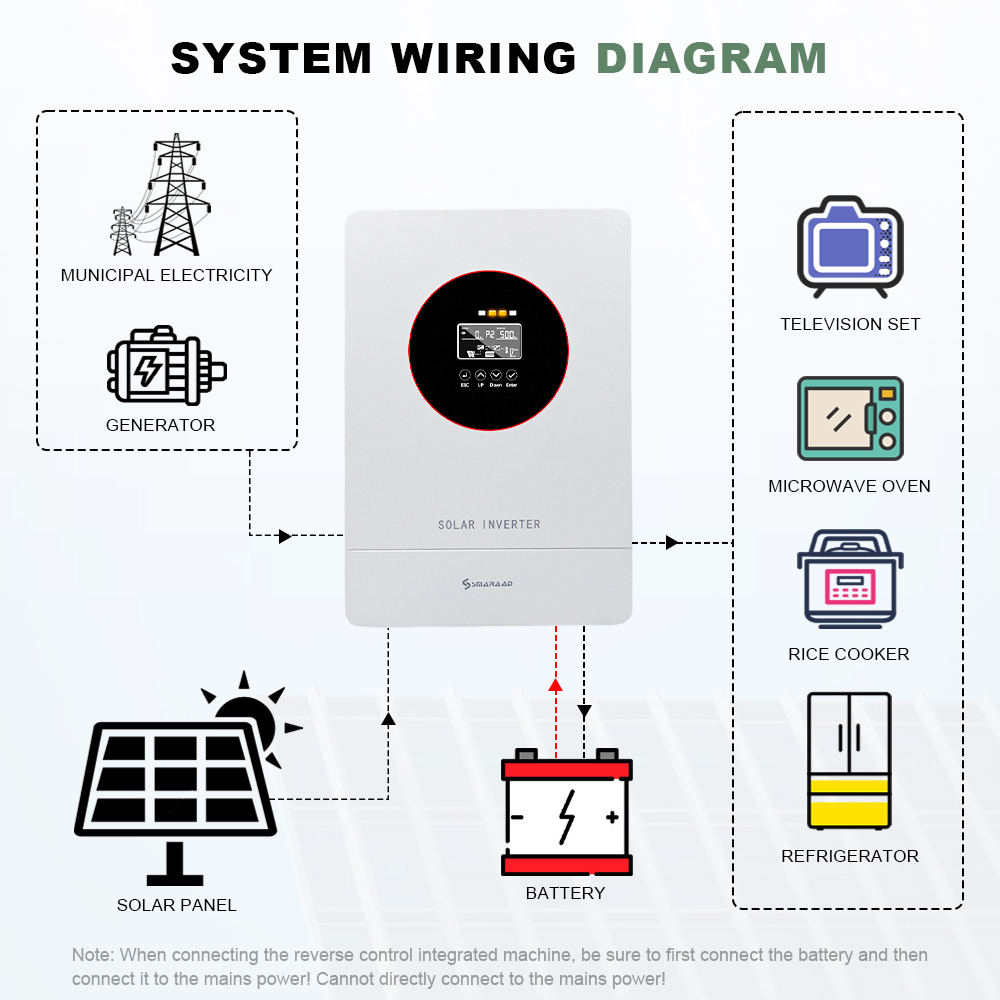

The Dfhy 3.6kw Solar Inverter acts as the central hub of a hybrid solar energy storage system, connecting PV modules, AC utility/generator, lithium/lead-acid batteries, and household loads (refrigerators, computers, televisions, etc.). It features three core working modes with customizable energy priority:
- Solar First Mode: Prioritizes solar energy to power loads; charges batteries with excess solar power, and supplements with grid power when solar energy is insufficient, maximizing renewable energy utilization.
- Grid First Mode: Takes the utility grid as the primary power source; uses solar energy to charge batteries first, and supplements load power with solar energy when grid power is insufficient, reducing electricity costs.
- Ups Mode: Ensures uninterrupted power supply for critical devices; switches to battery/solar power during grid outages, and automatically switches back to grid mode when power is restored.
The inverter also supports battery equalization function for lead-acid batteries, reversing sulfation and stratification to extend battery service life, with fully configurable equalization voltage, time, and interval parameters.

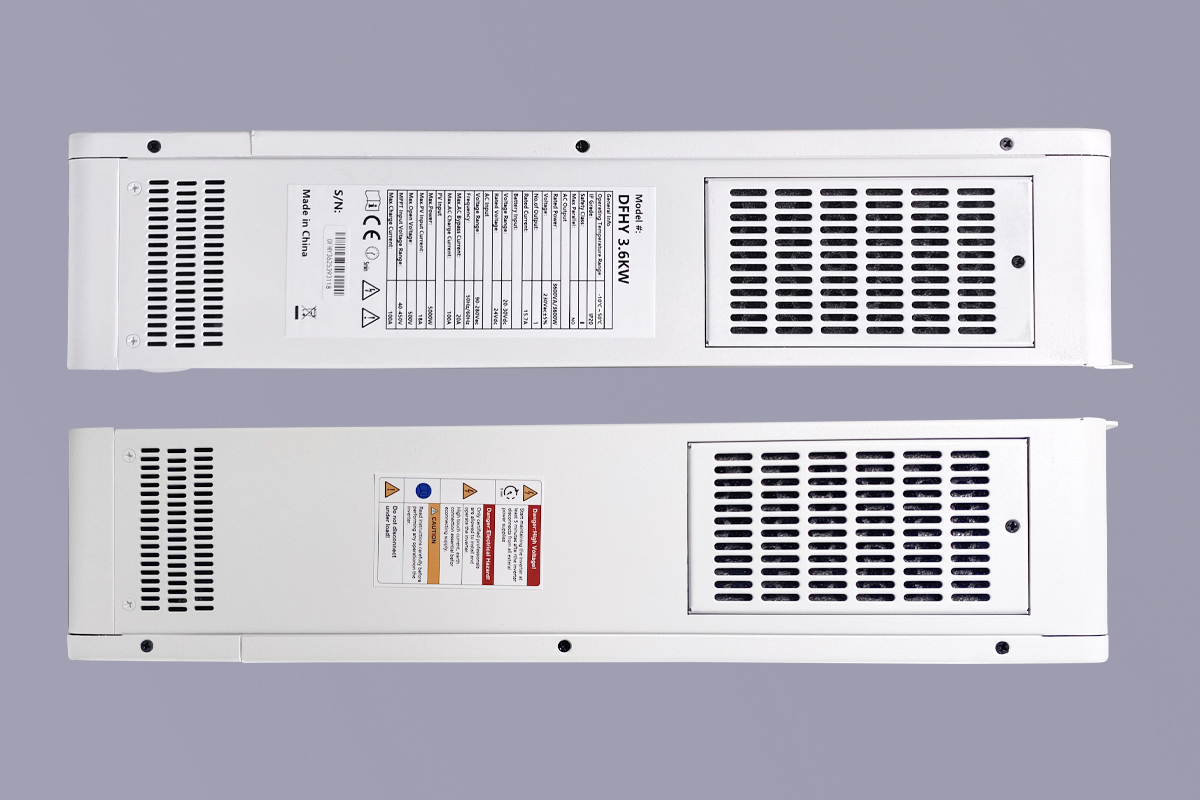

DFHY Series All-In-One Hybrid Solar Energy Storage Inverter With Mppt & Ups Function 3.6KW (12)

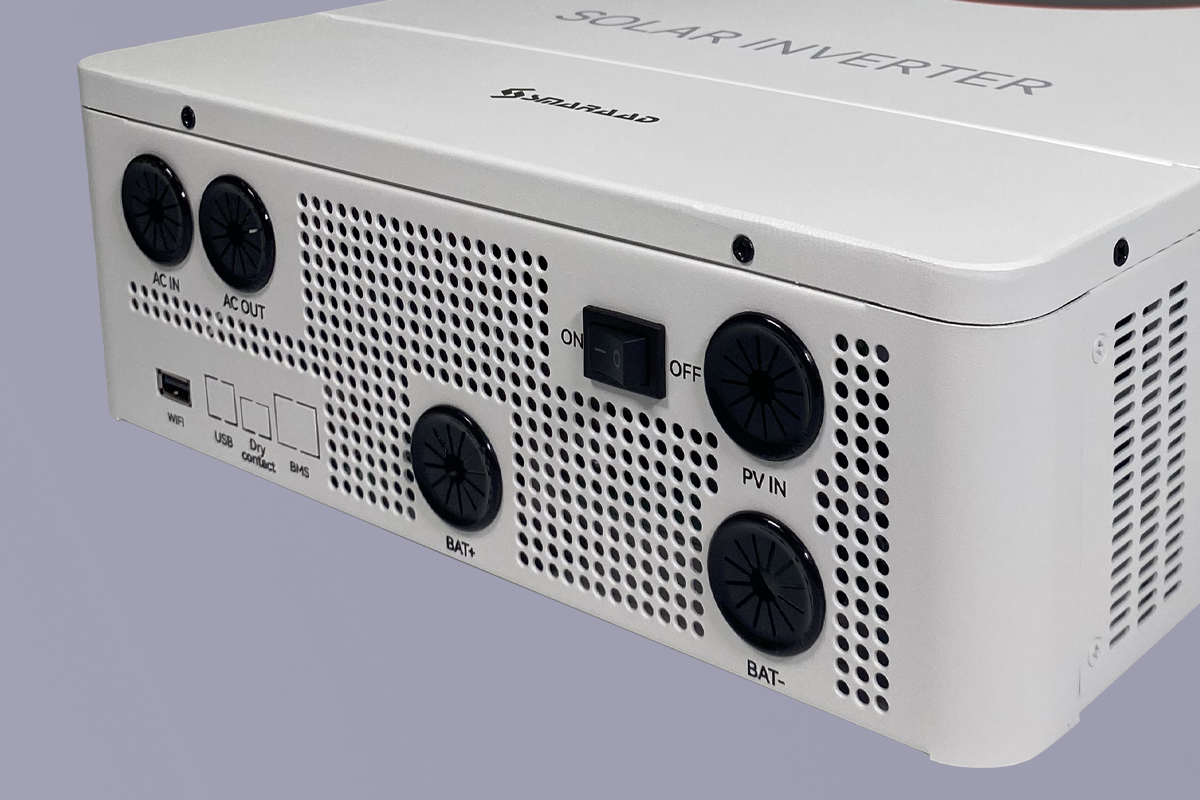

DFHY Series All-In-One Hybrid Solar Energy Storage Inverter With Mppt & Ups Function 3.6KW (14)

Easy Installation & Intuitive Operation

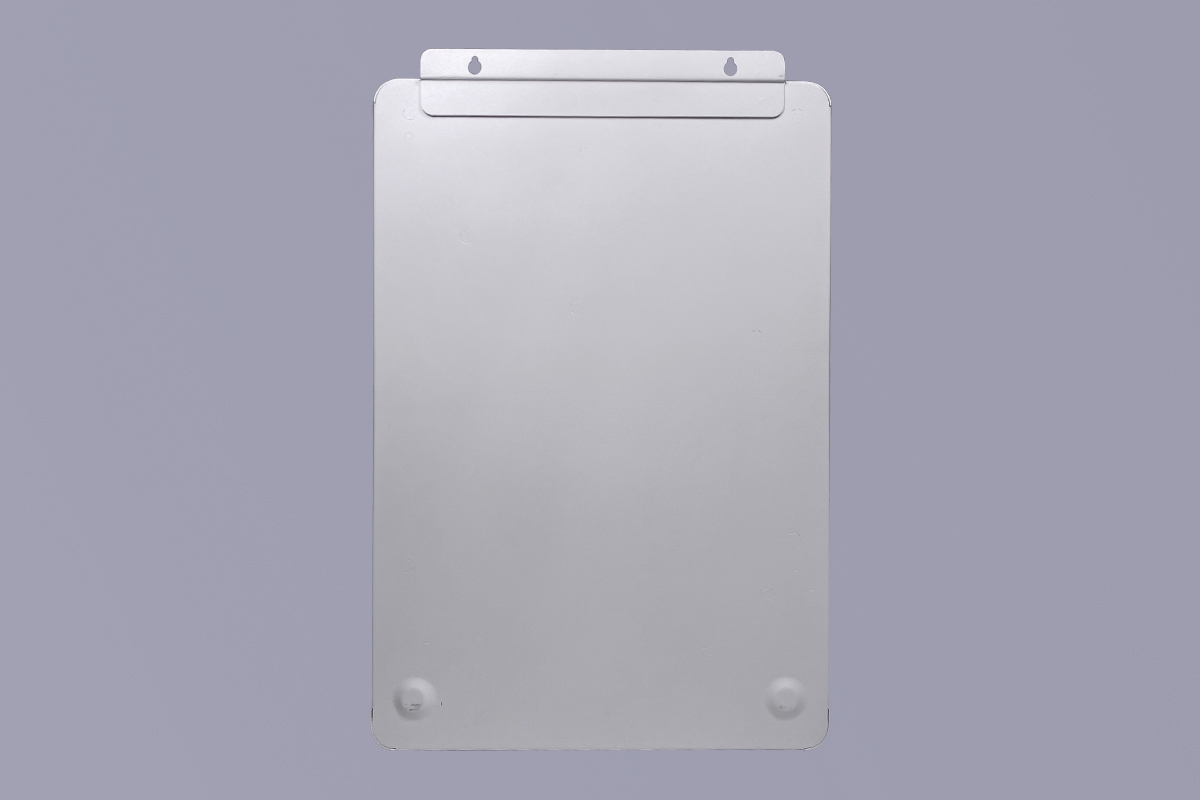

Simplified Mounting: Designed for vertical wall mounting on concrete/non-combustible surfaces with pre-drilled mounting holes and included expansion screws; requires 30cm of clear space around the unit for heat dissipation and wiring.

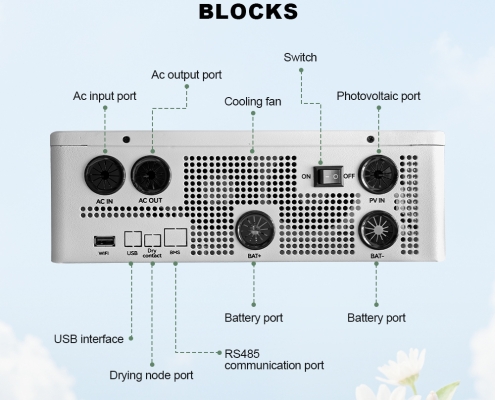

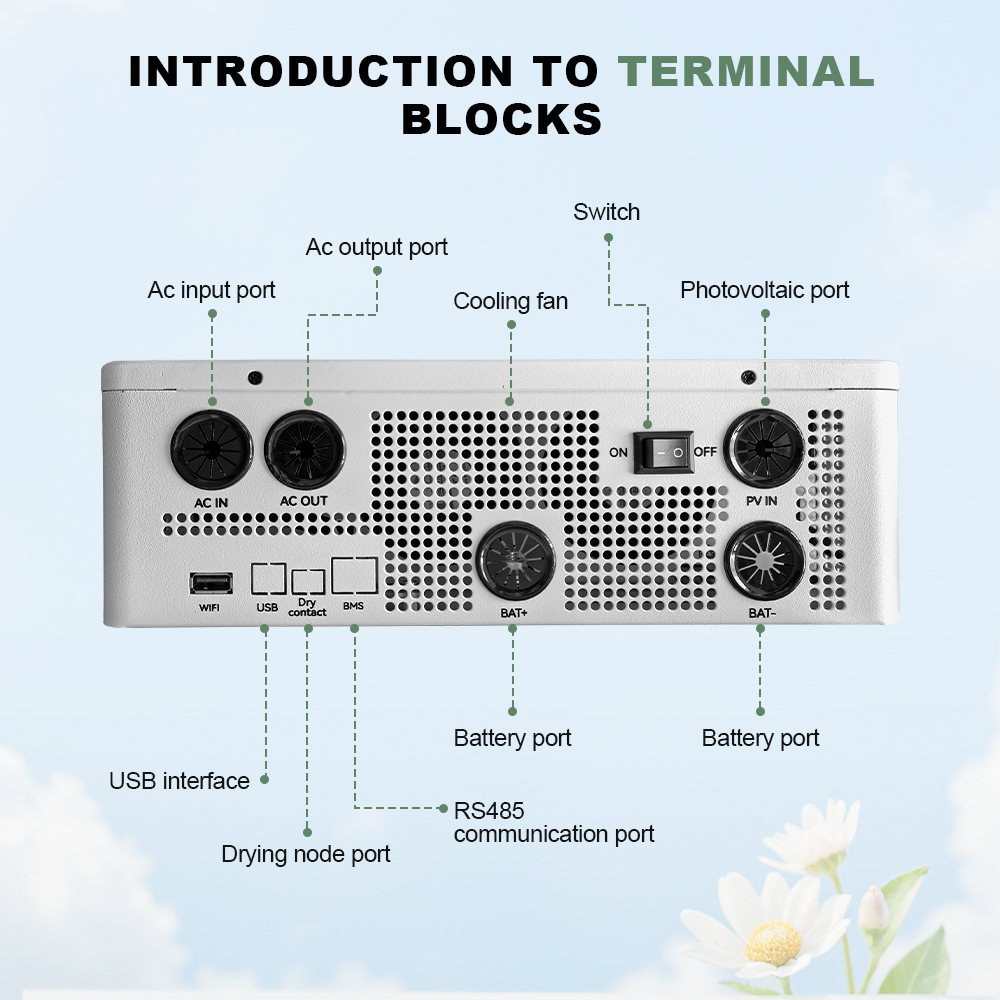

Standardized Wiring: Clearly labeled terminal blocks for AC input/output, PV input, battery connection, and BMS communication; supports standard cable gauges with dedicated crimp terminal requirements for safe, reliable wiring.

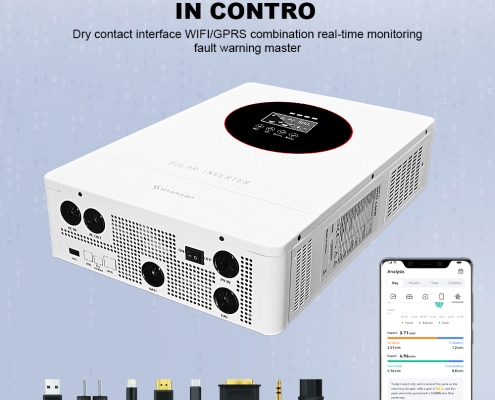

Plug-And-Play Accessories: Comes with all necessary installation hardware, and an optional smart communication stick for direct plug-in to the COM port for cloud monitoring without complex configuration.

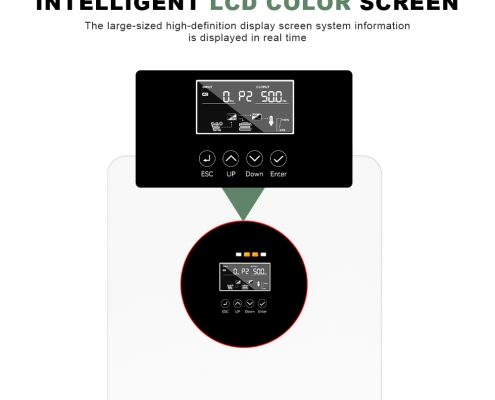

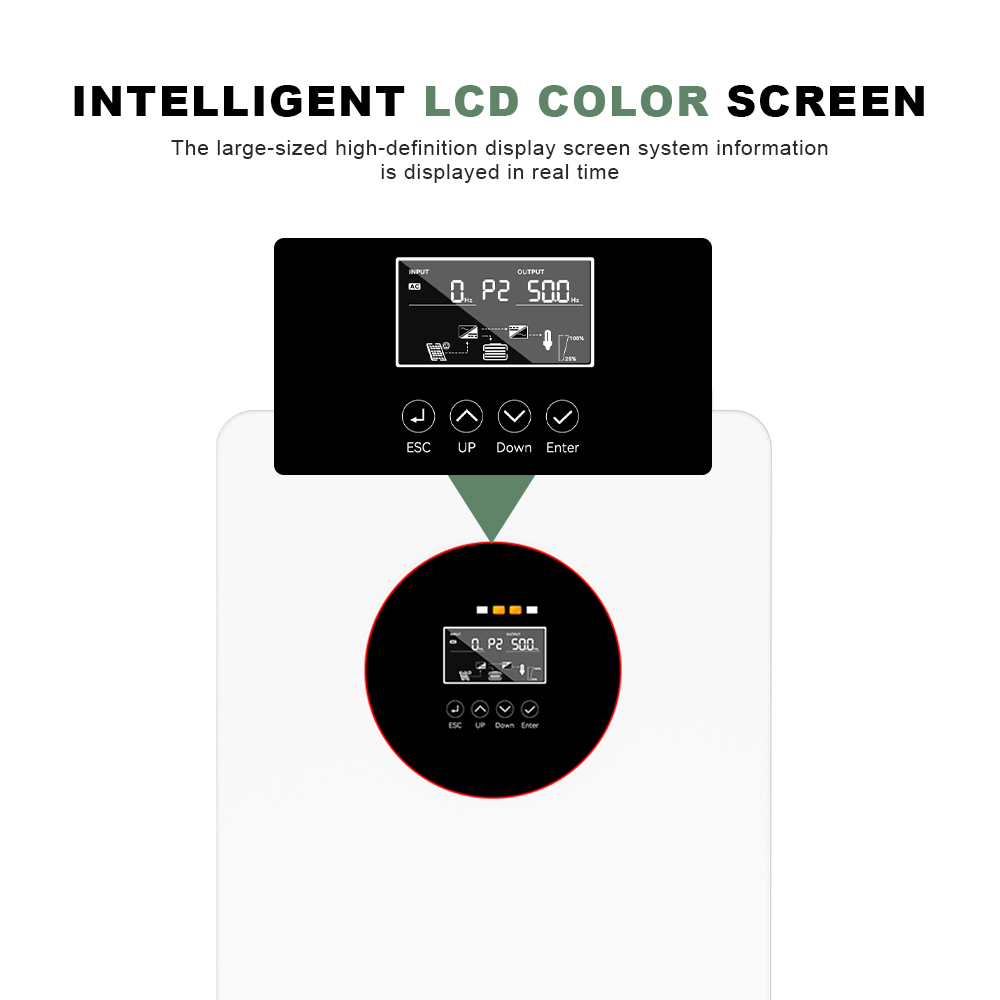

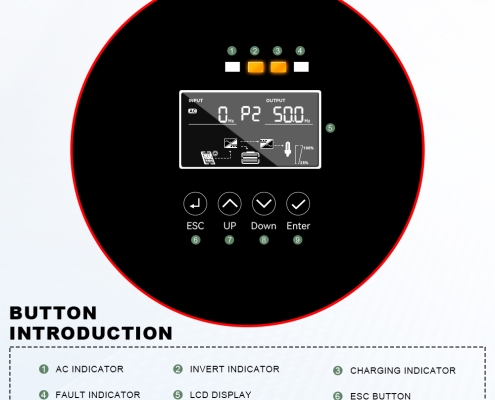

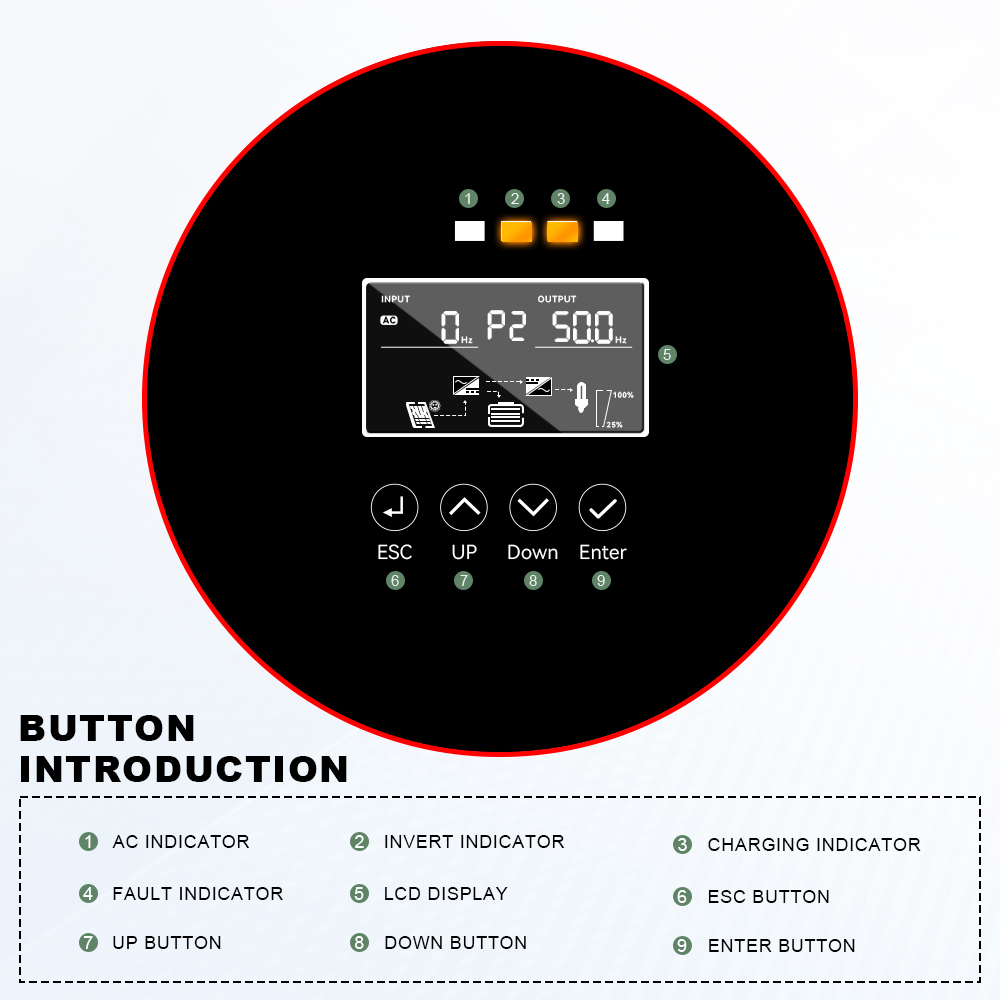

User-Friendly Control: The front-panel LCD display shows real-time parameters (voltage, current, power, SOC, temperature, fault codes); four function keys (ESC/UP/DOWN/ENTER) enable easy access to over 40 configurable programs for personalized system settings.
Comprehensive Indicator Lights: AC, invert, charging, and fault LED indicators provide instant visual feedback on system status, with clear alarm and fault code definitions for quick troubleshooting.

Reliable Safety & Protection

Multi-Dimensional Protection: Full protection against overcharge, over-discharge, overvoltage, undervoltage, overcurrent, short circuit, overtemperature, overload, and reverse polarity; automatic fault recovery and six-time restart attempts for system stability.
Professional Electrical Safety: Complies with strict electrical safety standards; requires protective grounding connection and dedicated AC/DC breakers for installation; features high-voltage warning labels and a 5-minute power-off maintenance delay for operator safety.
Battery Safety: Dedicated battery overcurrent protection; prohibits charging of frozen batteries; supports lithium battery BMS communication for real-time battery status monitoring and protection.
Pv Safety: Prohibits PV terminal grounding; requires opaque covering of PV modules during daytime installation to avoid high-voltage hazards; with reverse polarity protection for PV input to prevent inverter damage.

DFHY Series All-In-One Hybrid Solar Energy Storage Inverter With Mppt & Ups Function 3.6KW (13)

Why Choose the HECR Series Controller?

All-In-One Integration: Combines MPPT charger, pure sine wave inverter, and UPS in one unit, simplifying system design and reducing installation costs.
High Solar Utilization: Wide-range MPPT tracking maximizes solar energy harvest in all sunlight conditions.
Uninterrupted Power: Integrated UPS function ensures critical devices stay powered during grid outages.
Flexible Configuration: Supports battery-free operation, multi-energy source integration, and customizable working modes for all application scenarios.

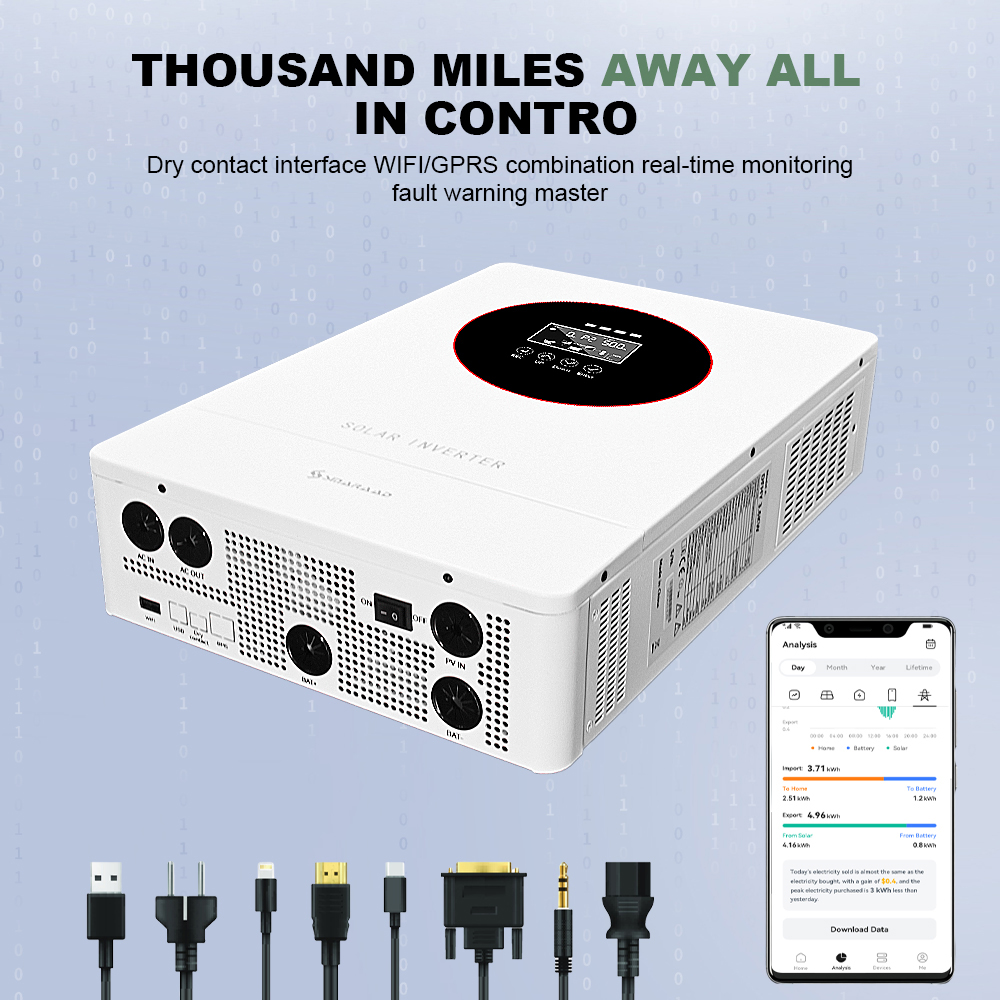

Intelligent Monitoring: Optional WIFI/GPRS remote monitoring for real-time system control and status tracking anywhere, anytime.
Dual Battery Support: Optimized charging for lead-acid and lithium batteries with BMS communication for extended battery lifespan.
Compact & Efficient: High-frequency design for small size, light weight, and high energy efficiency.
Comprehensive Safety: Multi-layer protection and strict safety compliance ensure reliable operation for both the inverter and connected devices.

Ideal Applications

Off-grid homes and cabins
Communication towers and weather stations
Small commercial and agricultural setups
Remote monitoring and backup systems
Rv/Camping Power Setups
