MAX Series Wind-Solar Hybrid MPPT Controller
2000W Wind + 400W Solar Intelligent Energy Manager

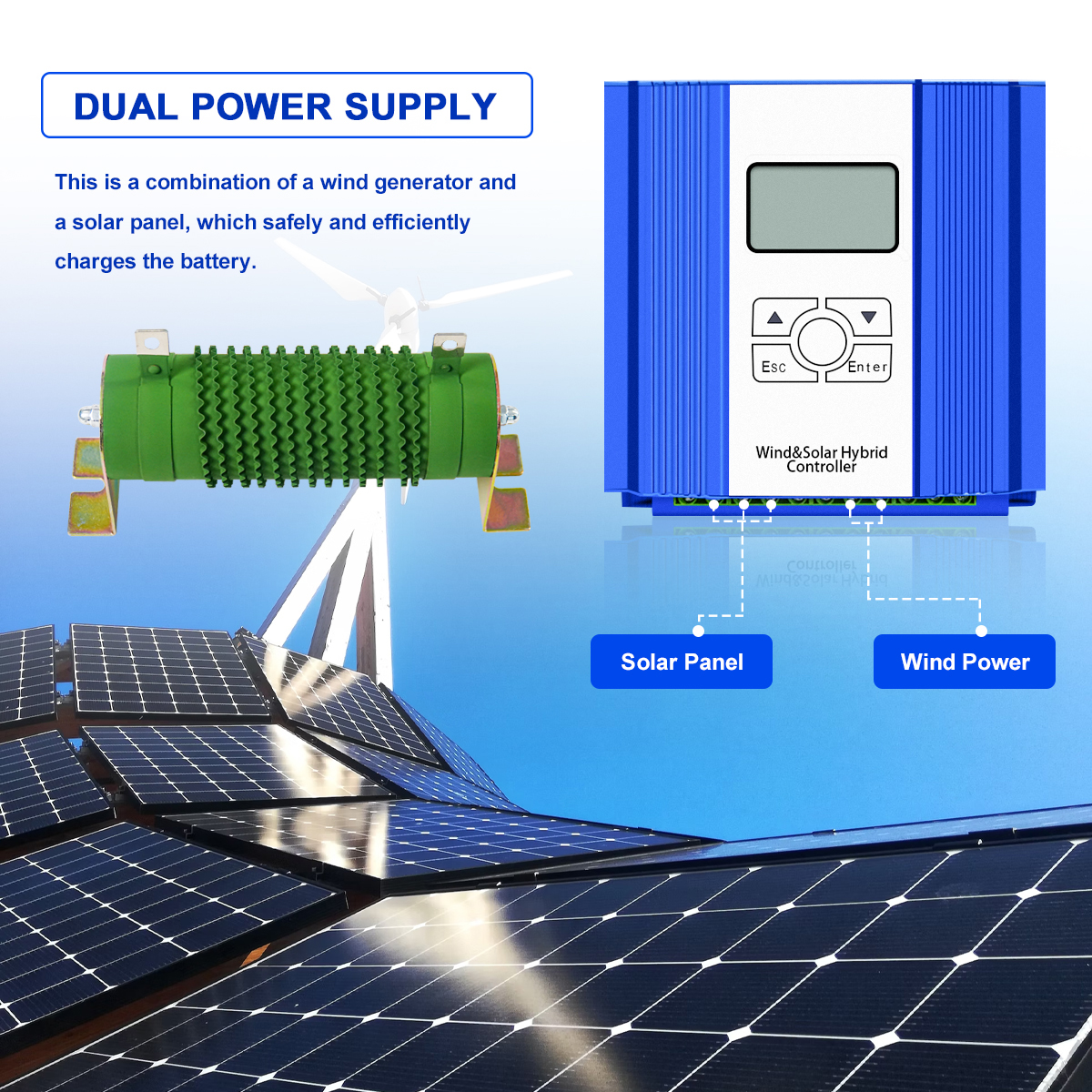

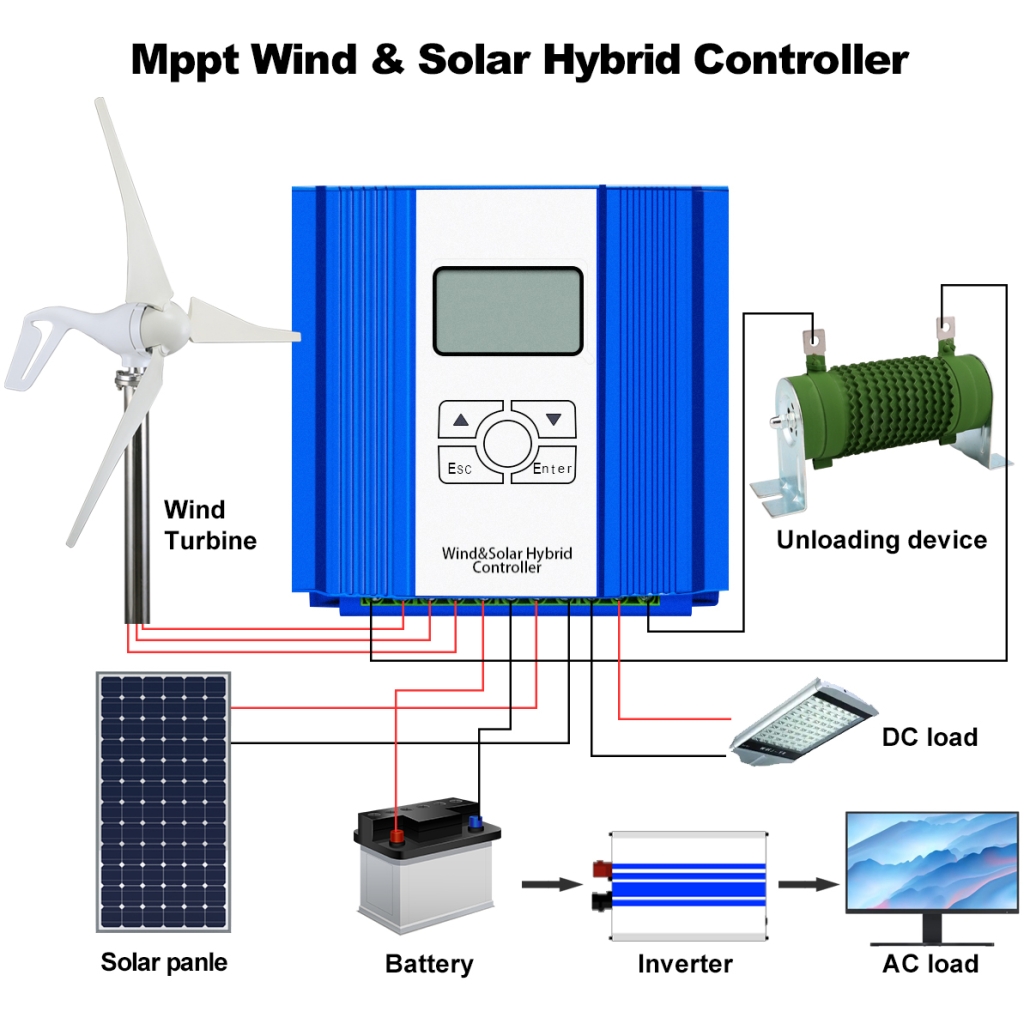

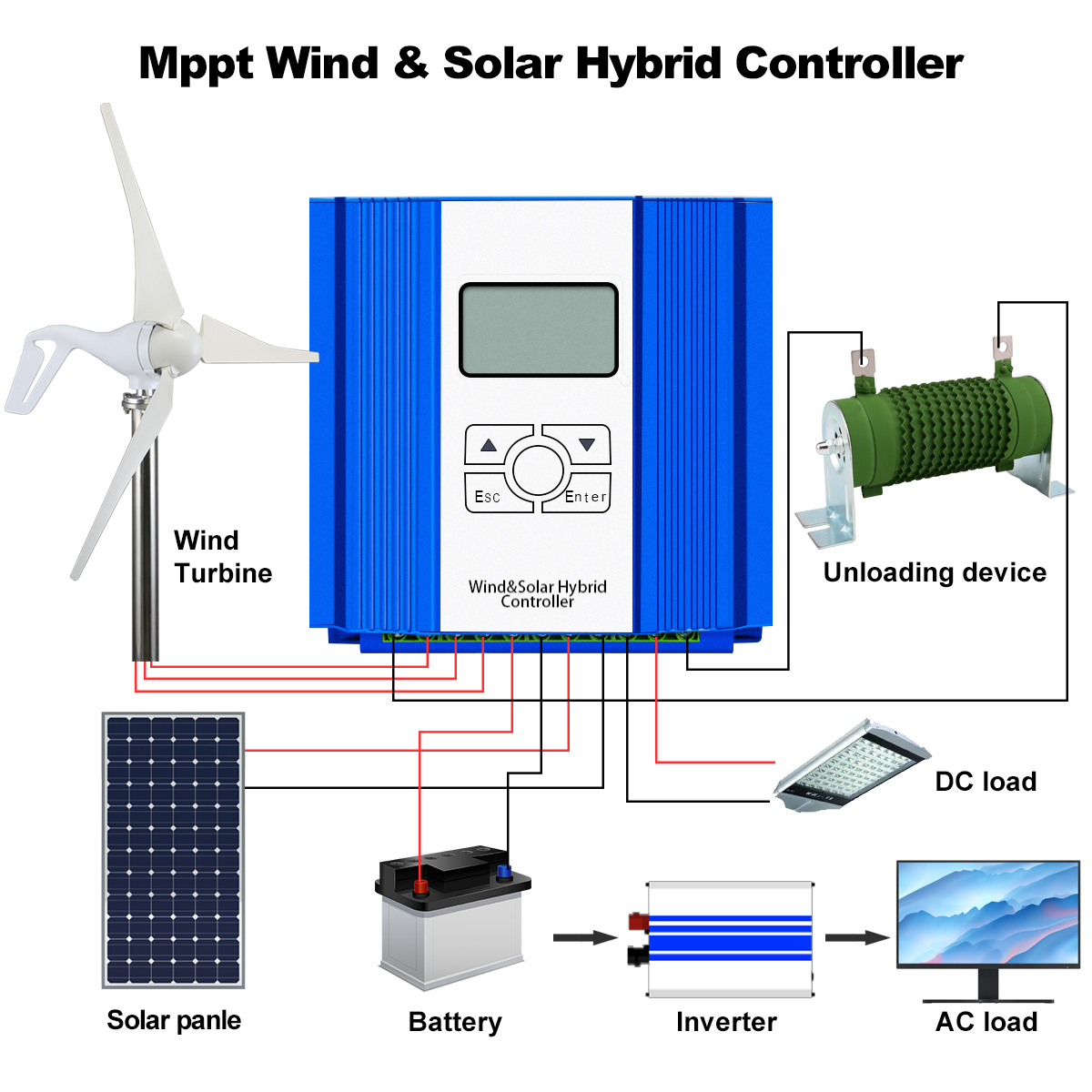

The MAX Series Wind-Solar Hybrid MPPT Controller is a professional all-in-one energy management unit designed to integrate 2000W wind turbines and 400W solar panels into a reliable off-grid or hybrid power system. Equipped with advanced MPPT (Maximum Power Point Tracking) technology, it maximizes energy harvest from both wind and solar sources while providing comprehensive battery protection and stable power delivery. With flexible voltage options (12V/24V AUTO, 48V), a rugged aluminum shell, and an intuitive LCD display with physical buttons, it serves as the core control component for residential off-grid systems, remote telecom sites, and small-scale renewable energy installations.
Key Features:
- Wind Power Input: 2000W
- Solar Power Input: 400W
- System Voltage Options: 12V/24V AUTO, 48V
- MPPT Efficiency: ≥97%
- Protection Features: Overcharge, over-discharge, overcurrent, short-circuit, reverse polarity, overtemperature

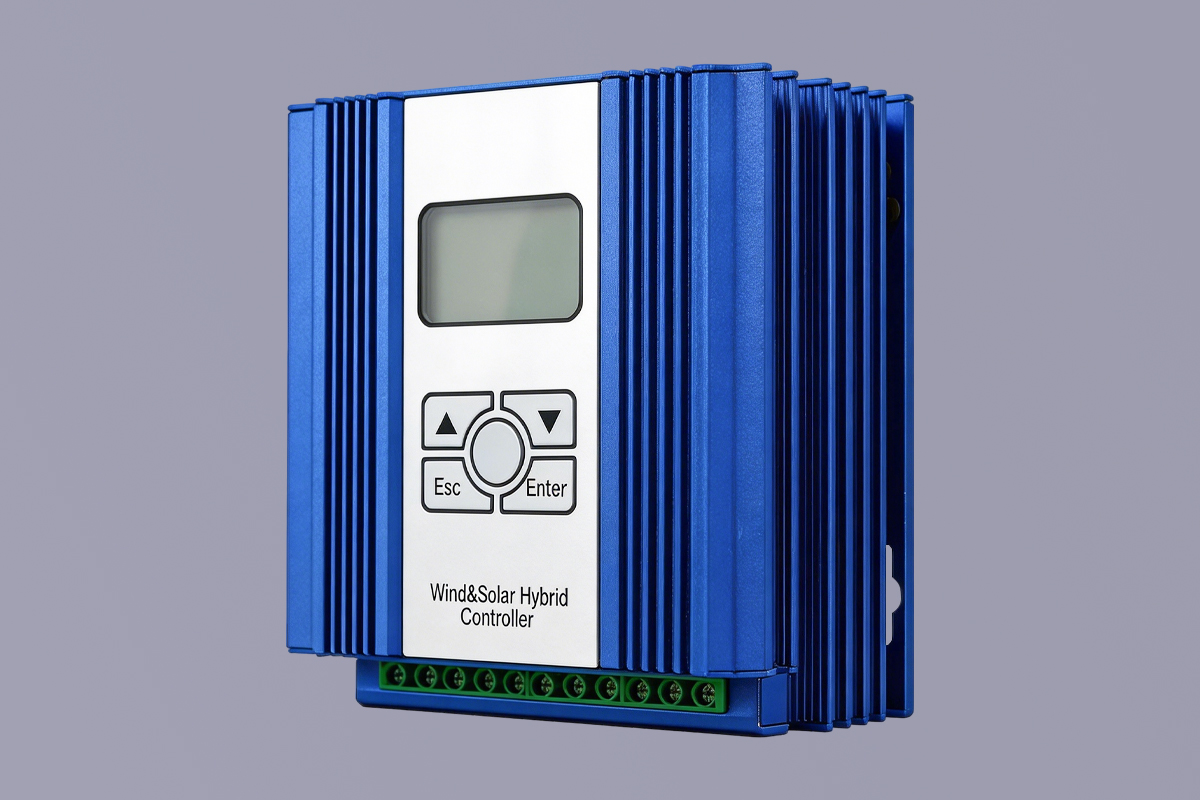

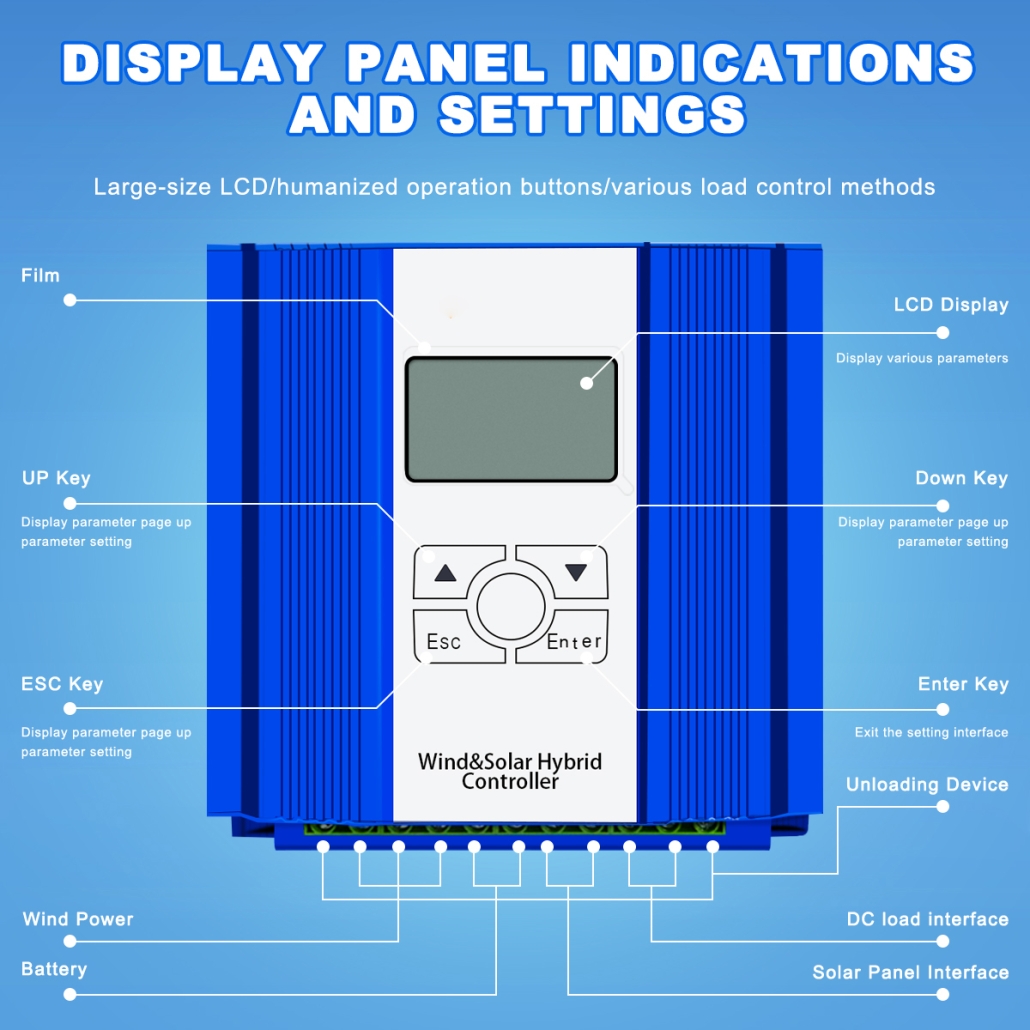

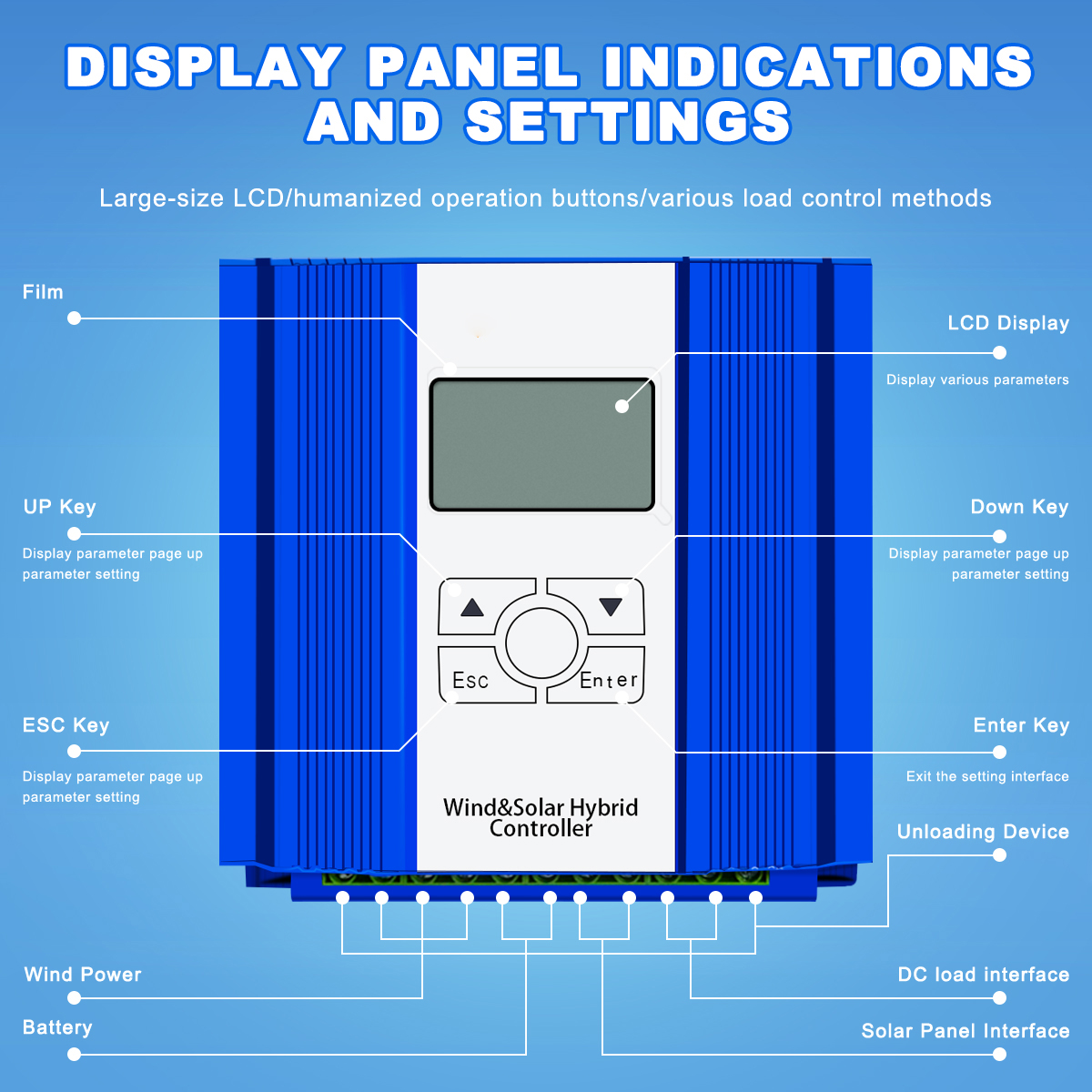

- Display: Large-size LCD digital display (voltage, current, power, battery status, fault codes)
- Control Interface: Physical buttons (Esc, Up/Down, Enter)
- Communication Mode: TTL232 / RS485

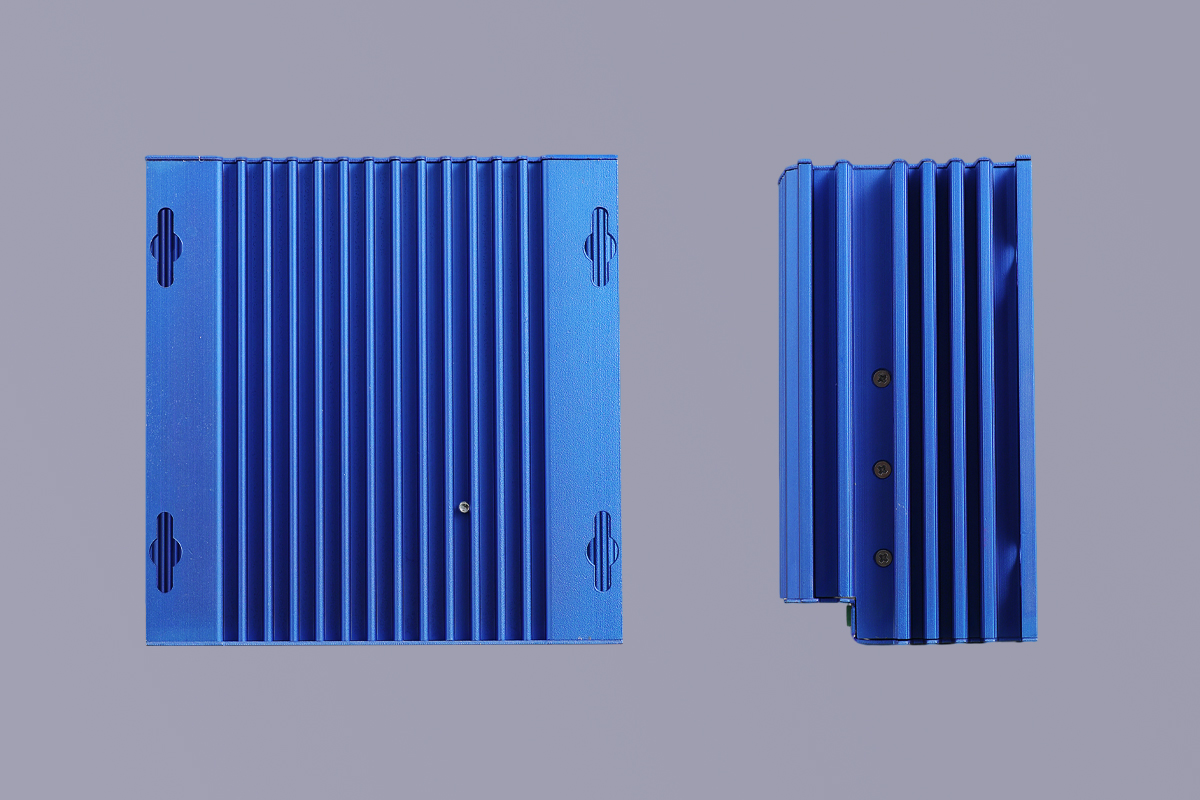

- Shell Material: Aluminum alloy (heat-dissipating)
- Dimensions: 155 × 148 × 84 mm
- Weight: 1.42 kg
- Operating Temperature: -20°C ~ +60°C
