1MW‑2.17MWh Container BESS All‑in‑One Battery Energy Storage System Liquid Cooling

Product Overview

SMARAAD supplies this 1MW‑2.17MWh fully‑integrated container‑type battery energy storage system. Housed inside a standard 20‑foot container, this all‑in‑one unit integrates LFP battery clusters, PCS power converter, BMS battery management, EMS energy management, liquid cooling thermal management and multi‑level fire‑suppression systems. It supports grid‑tied, off‑grid and hybrid micro‑grid operation, well‑suited for C&I peak‑valley arbitrage, renewable energy smoothing, backup power and utility‑scale energy‑storage projects.

20ft standard container, factory pre‑commissioned, plug‑and‑play fast deployment
LiFePO4 LFP battery, up to 8000 cycle life under 0.5C & 95% DoD
Hybrid liquid‑cooling thermal management, cell temperature difference ≤3℃
Rated 1MW continuous AC power, usable energy 2.17MWh
Dual‑layer aerosol + water‑spray fire‑suppression safety system
Support on‑grid / off‑grid seamless switching, multi‑unit parallel expansion
IP55 outdoor protection grade, C4 anti‑corrosion coating for harsh sites
Rich communication interfaces for remote cloud monitoring & dispatch

Get A Quote

System General Parameters

Item	Specification
Model	1MW‑2.17MWh 20ft Container BESS
System Architecture	All‑in‑one containerized (Battery + PCS + EMS + Cooling + Fire protection)
Container Dimension (L×W×H)	6058 × 2438 × 2591 mm
Total Weight	28 t
Protection Grade	IP55
Anti‑corrosion Grade	C4 (C5 optional for coastal environment)
Cooling Solution	Liquid cooling + forced‑air hybrid cooling
Operating Ambient Temp	‑25℃ ~ +55℃ (power derating above 45℃)
Relative Humidity	0‑95% RH, non‑condensing
Max Altitude	3000 m (derating over 2000 m)
Noise Level	≤ 80 dB
Standard Warranty	5‑year system warranty
Certifications	UN38.3, IEC62477‑1, IEC62619, IEC63056, UL9540A, CE‑EMC, EN50549‑1‑10, TÜV

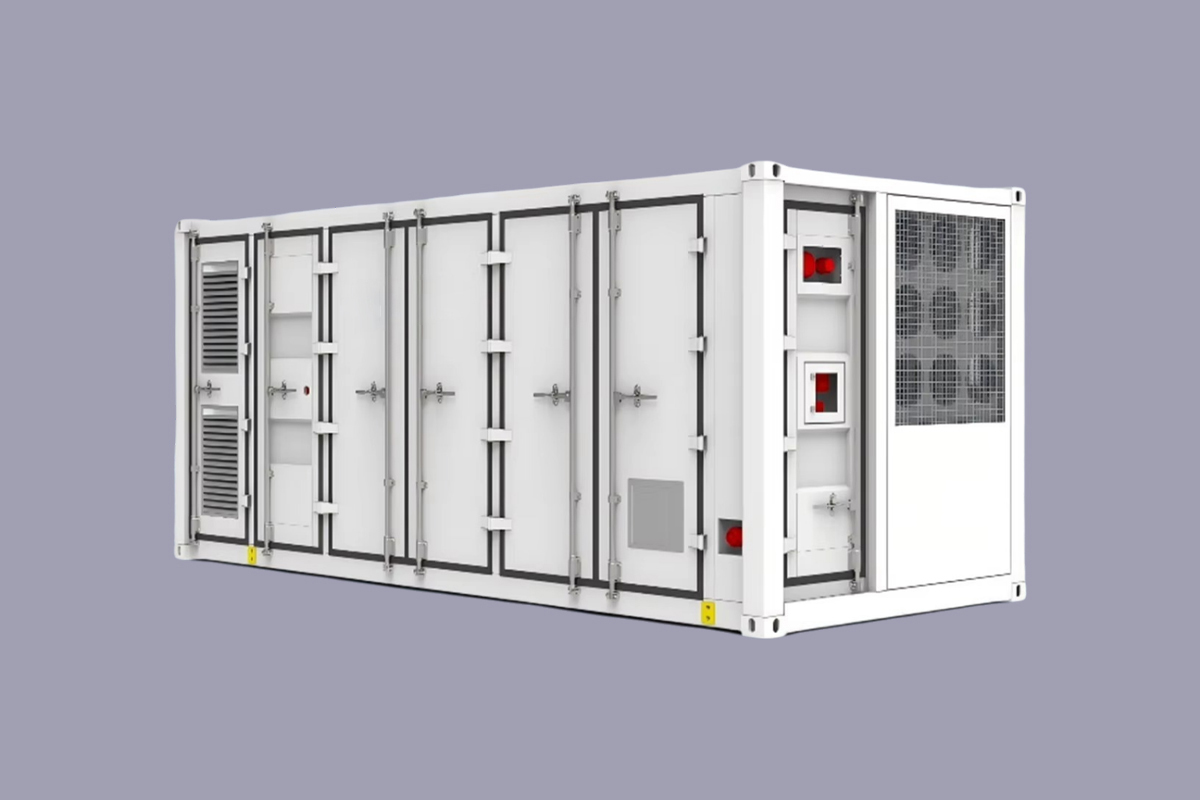

1MW‑2.17MWh Container BESS All‑in‑One Battery Energy Storage System Liquid Cooling (4)

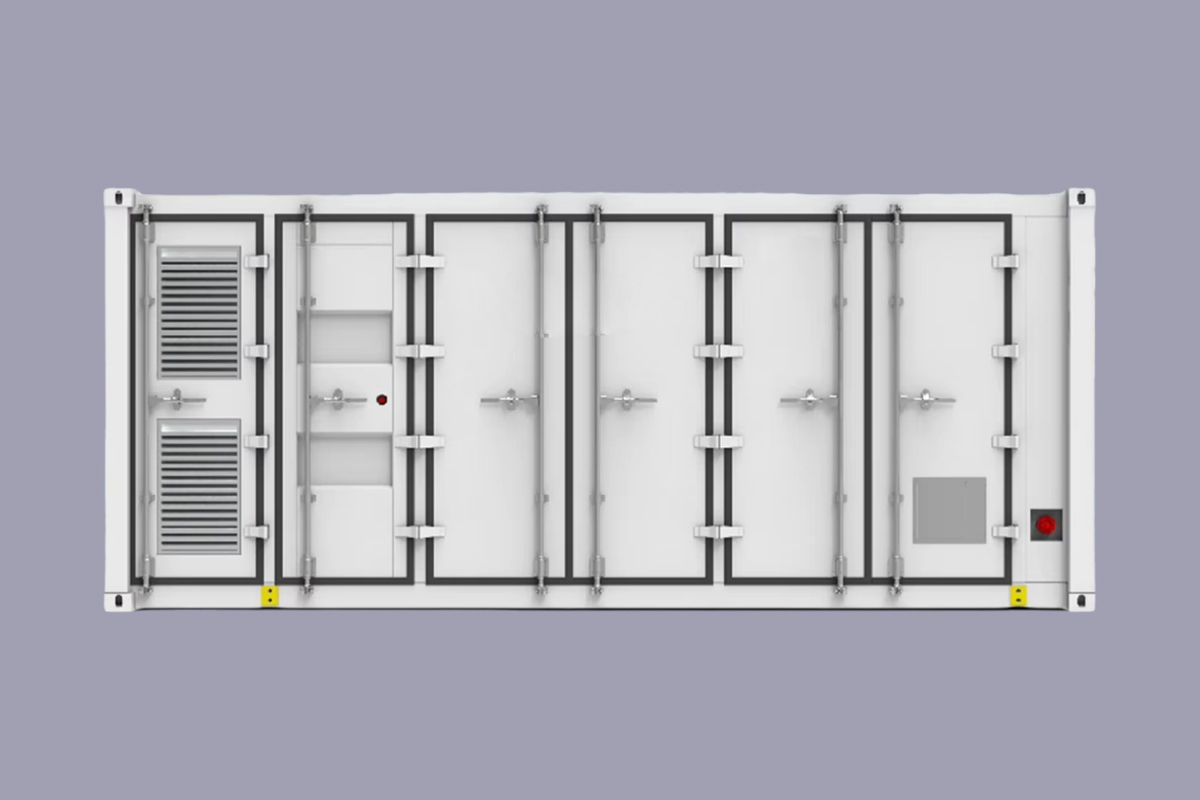

1MW‑2.17MWh Container BESS All‑in‑One Battery Energy Storage System Liquid Cooling (3)

DC Battery Side

Item	Specification
Battery Cell Type	LFP 314Ah lithium‑iron‑phosphate
System Configuration	9P240S
Usable Energy	2170 kWh (2.17 MWh)
Nominal DC Voltage	768 V
DC Operating Voltage Range	672 V ~ 864 V
Max Charge / Discharge Rate	0.5 C
Max Depth of Discharge	95 %
Cycle Life	≥8000 cycles (@25℃,0.5C,95%DoD)
Battery Management	BMS cluster‑level independent monitoring & protection

AC PCS Output Side

Item	Specification
Rated Continuous AC Power	1000 kW (1 MW)
Max Peak AC Apparent Power	1100 kVA
Grid Connection	3‑phase 3L+N+PE
Nominal AC Voltage	400 VAC
Nominal Frequency	50 Hz / 60 Hz adaptive
Adjustable Power Factor	‑1 lagging ~ +1 leading
THDi @ Rated Load	≤ 3 %
Round‑trip System Efficiency	≥ 89 %
Operation Mode	Grid‑tied / off‑grid seamless transfer, black‑start support

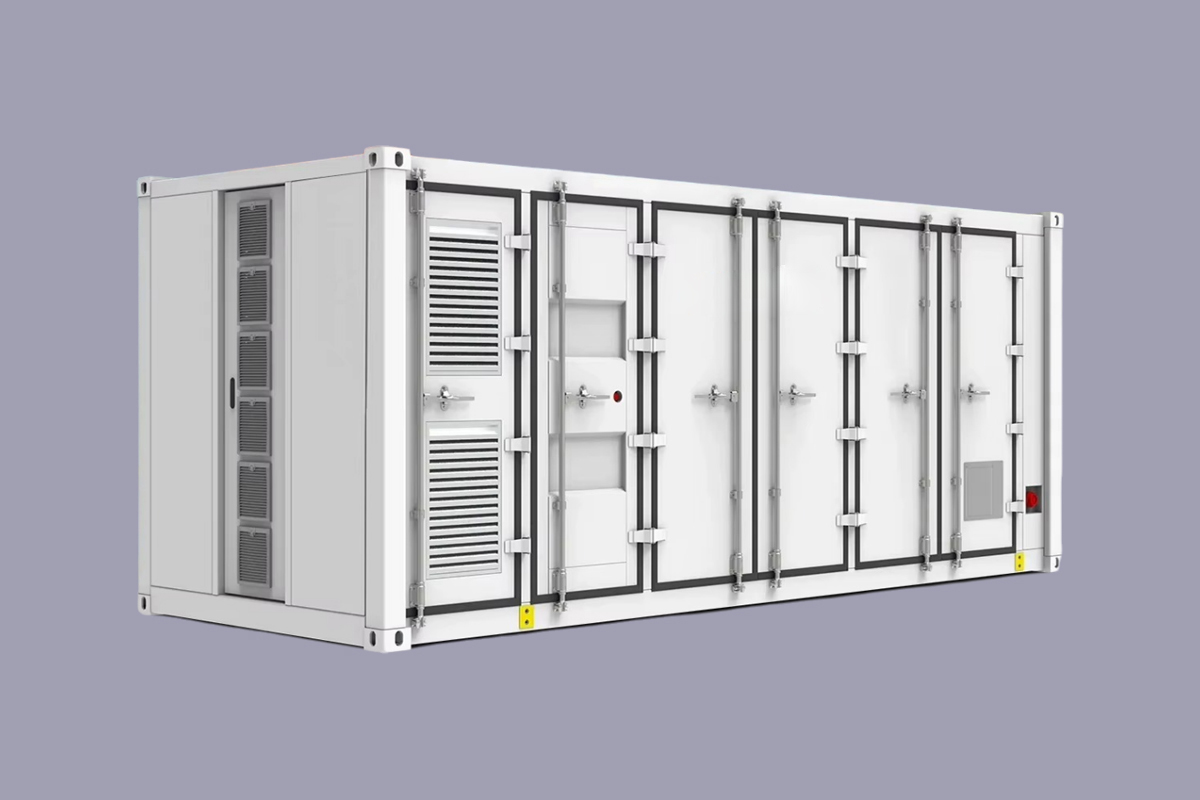

1MW‑2.17MWh Container BESS All‑in‑One Battery Energy Storage System Liquid Cooling (2)

Communication & Safety

Item	Specification
Communication Interface	RS485, CAN, Ethernet Modbus‑TCP/IP
Monitoring	Local HMI + remote cloud EMS platform
Fire Suppression	Aerosol pack‑level suppression + container‑level water‑spray system
Protection Functions	Over‑voltage, under‑voltage, over‑current, over‑temp, insulation fault, anti‑islanding

Ideal Applications

Commercial & industrial peak‑shaving and demand‑charge reduction
Solar‑wind renewable‑energy output smoothing
Critical‑load backup power & emergency black‑start capacit
Off‑grid / hybrid micro‑grid for mining, farm and remote sites
Utility‑scale energy storage power‑station project
PV‑plus‑storage integrated projects
