DEYE SUN-3/3.6/5/6K-SG03LP1-EU Single-Phase Hybrid Storage Inverter

Authorized Distributor: SMARAAD | Residential Energy Storage Hybrid Inverter

Overview

As an official authorized distributor of DEYE, SMARAAD supplies the SUN-3/3.6/5/6K-SG03LP1-EU single-phase hybrid storage inverter. This all-in-one hybrid inverter supports on-grid, off-grid, and AC coupling retrofit solutions, compatible with lead-acid and lithium batteries. It allows up to 16 units parallel connection, supports diesel generator charging, and features an IP65 colorful touch LCD for easy operation. Designed for residential energy storage, peak shaving and emergency backup power.

IP65 Color Touch LCD
AC Coupling Retrofit Function
Mass Parallel Expansion
Flexible Time-of-Use Control
Multi Energy Source Compatibility
Comprehensive Safety Protection
High Efficiency & Stable Output

Get A Quote

Basic Information

Item	Parameter
Model Series	SUN-3K / 3.6K / 5K / 6K-SG03LP1-EU
Type	Single-phase hybrid storage inverter
Installation	Wall-mounted
Cooling Mode	Natural cooling
Protection Grade	IP65
Communication Port	BMS communication terminal, external temperature sensor port
Noise Level	Low silent operation
Certification	CQC, EU standard compliance

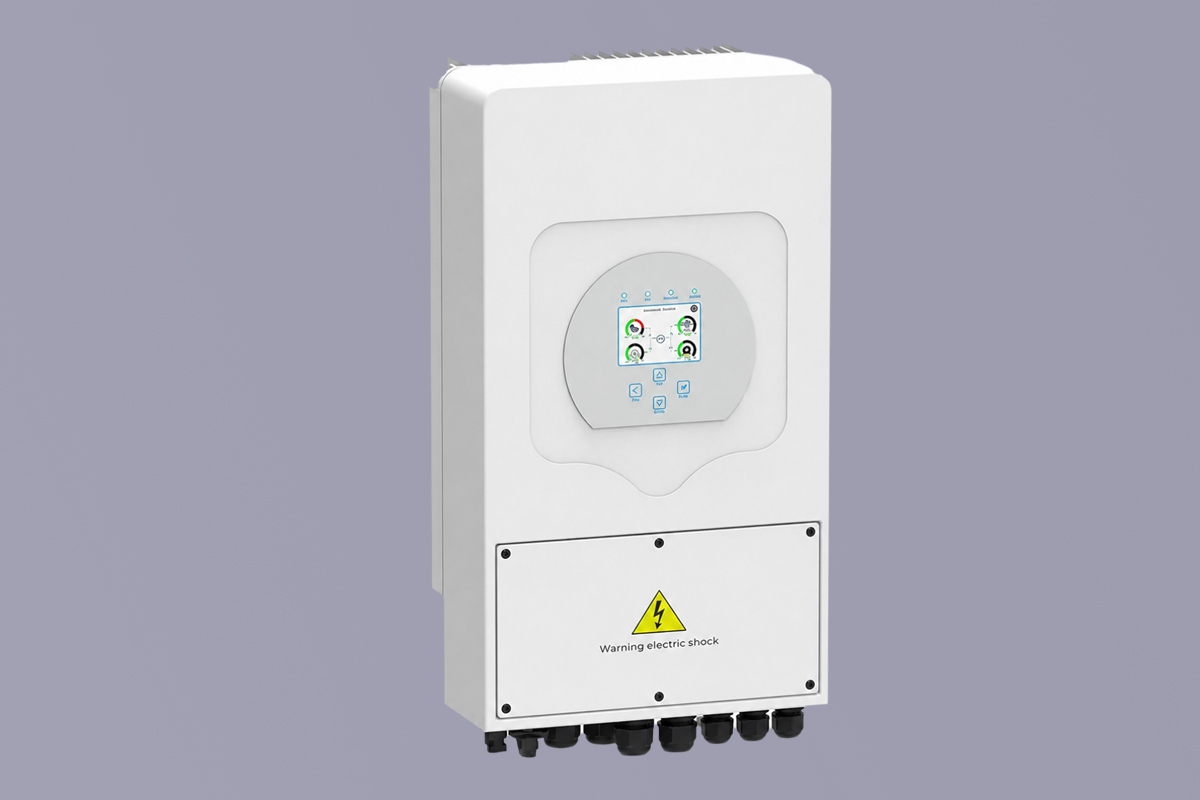

SUN-3.656K-SG03LP1-EU 单相 2 MPPT 储能逆变器低压电池 (3)

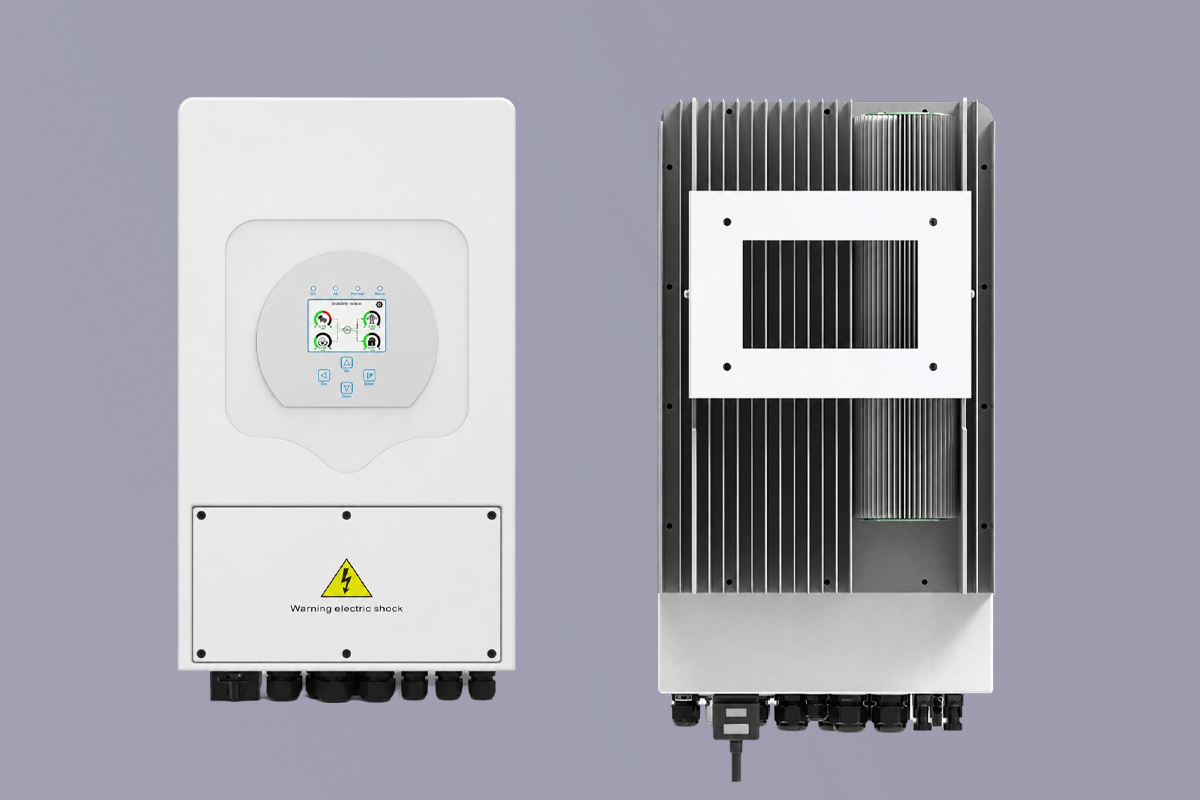

SUN-3.656K-SG03LP1-EU 单相 2 MPPT 储能逆变器低压电池 (2)

Battery Side Parameters

Item	Spec
Supported Battery	Lead-acid battery / Lithium-ion battery
Battery Voltage Range	40~60V
Max Charge Current	135A
Max Discharge Current	135A
Charging Curve	3-stage charging + equalization mode
Lithium Battery Management	Self-adaptive BMS matching system

DC PV Input Parameters

Item	SUN-3K	SUN-3.6K	SUN-5K	SUN-6K
Max DC Input Power	3000W	3600W	5500W	6000W
Rated PV Input Voltage	370V	370V	370V	370V
Start-up Voltage	125V	125V	125V	125V
MPPT Operating Range	150~425V	150~425V	150~425V	150~425V
Full Load MPPT Range	300~425V	300~425V	300~425V	300~425V
Max DC Input Current	13A+13A	13A+13A	17A+17A	17A+17A
Max DC Short Circuit Current	16.4A / 15.7A	16.4A / 15.7A	22.7A / 21.7A	27.3A / 26.1A
MPPT Tracker Quantity	2	2	2	2
Strings per MPPT	1 string per tracker	1 string per tracker	1 string per tracker	1 string per tracker

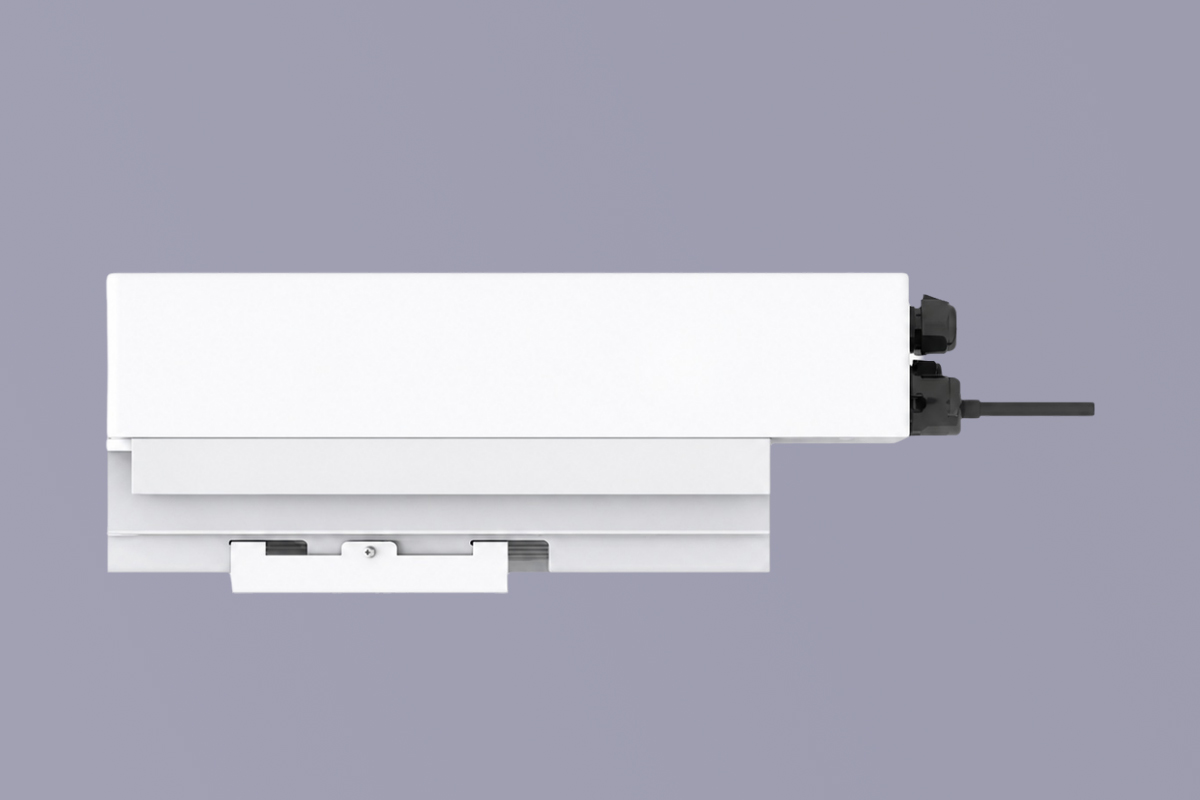

SUN-3.656K-SG03LP1-EU 单相 2 MPPT 储能逆变器低压电池 (4)

AC Output Parameters

Item	SUN-3K	SUN-3.6K	SUN-5K	SUN-6K
Rated AC Active Power	3000W	3600W	5000W	6000W
Max AC Active Power	3300W	3960W	5500W	6600W
Rated Output Current	13.6A	16.4A	22.7A	27.3A
Max Output Current	15A	18A	25A	30A
Grid Bypass Current	35A	35A	40A	40A
Off-Grid Peak Power	2x rated power (10s)	2x rated power (10s)	2x rated power (10s)	2x rated power (10s)
Power Factor	0.8 leading ~ 0.8 lagging
Grid Standard	Single-phase 230V/50Hz
THDi (Rated Power)	＜3%
DC Injection Component	＜0.5% In

Ideal Applications

Residential rooftop solar energy storage
Retrofit existing PV systems via AC coupling
Off-grid cabins, remote houses and mountain villas
Emergency backup power during grid outages
Diesel-solar hybrid off-grid power stations
Peak shaving & household electricity cost reduction

Contact Us

For quotations, technical drawings, bulk orders and installation guidance of DEYE SUN-3/3.6/5/6K-SG03LP1-EU hybrid inverters, please contact SMARAAD sales team. We provide customized residential energy storage solutions with stable delivery and full after-sales service.
