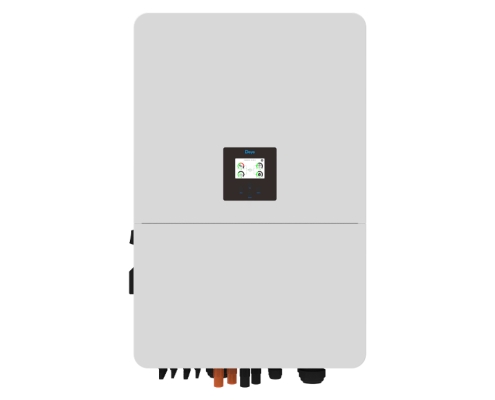

DEYE SUN-60/75/80K-SG02HP3-EU-EM6 Three-Phase High Voltage Hybrid Storage Inverter

Authorized Distributor: SMARAAD

As official authorized DEYE distributor, SMARAAD supplies SUN-60/75/80kW three-phase high-voltage hybrid storage inverters for small & medium commercial energy storage. Equipped with 6 independent MPPT channels, high-voltage lithium battery compatibility and intelligent air cooling, it supports AC coupling retrofitting, diesel generator charging and up to 10 units parallel connection. Ideal for factory peak shaving, backup power and solar-diesel hybrid microgrids.

100% three-phase unbalanced output capacity
AC coupling for existing PV system upgrade
Max 10 units parallel (on/off-grid), multi-battery parallel support
Max charge & discharge current up to 160A
6 customizable charge/discharge time segments
Direct charging support from diesel generators
6 independent MPPT trackers, max efficiency up to 98.10%
IP65 outdoor cabinet, intelligent air cooling
Multiple optional communication modul
Complete multi-layer surge & electrical protection

Get A Quote

Basic Information

Item	Unified Spec for All Models
Model Series	SUN-60K / 75K / 80K-SG02HP3-EU-EM6
Product Type	Three-phase high voltage hybrid storage inverter
Mounting	Wall-mounted
Protection Grade	IP65
Cooling Mode	Intelligent air cooling
Operating Temp	-40℃ ~ +60℃, power derating above 45℃
Noise Level	≤65dB
Communication Ports	RS485 / RS232 / CAN; Optional WiFi / Bluetooth / 4G / LAN / GPRS
Standard Warranty	5 Years
Certifications	Full EU grid & safety standard compliance

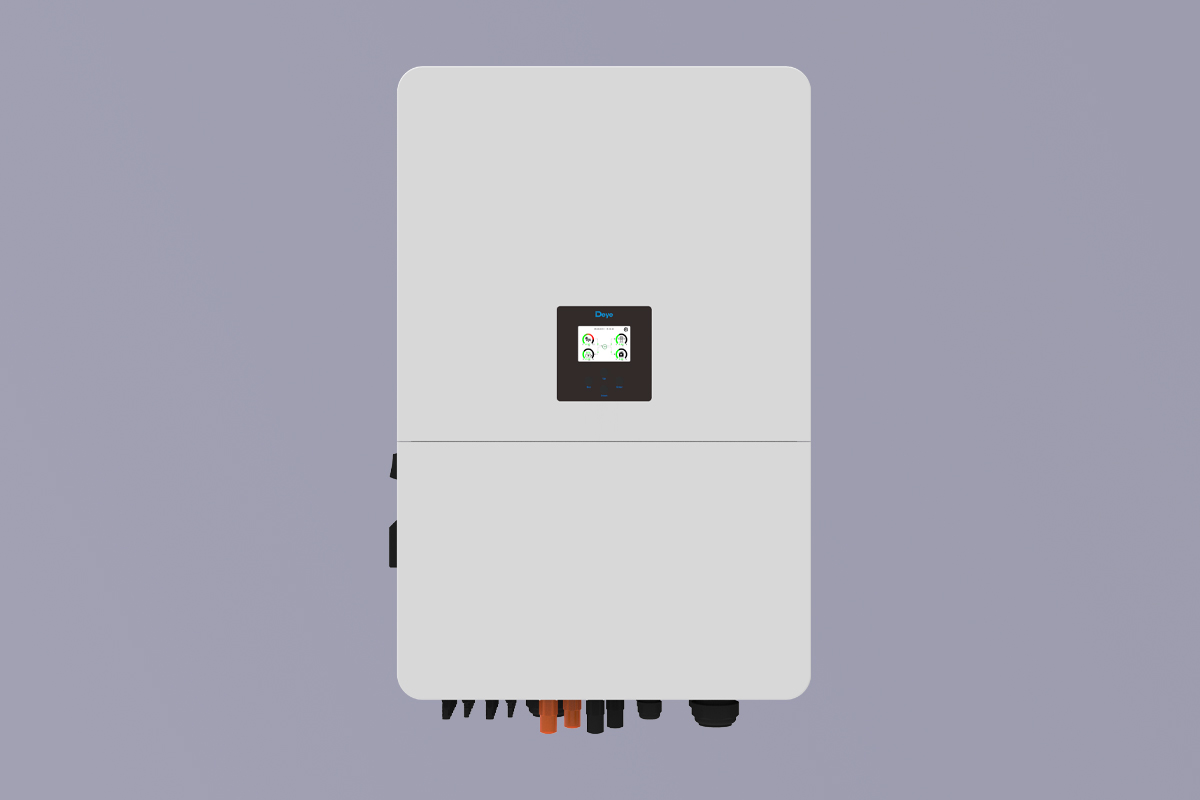

DEYE SUN-607580K-SG02HP3-EU-EM6 Three-Phase High Voltage Hybrid Storage Inverter (2)

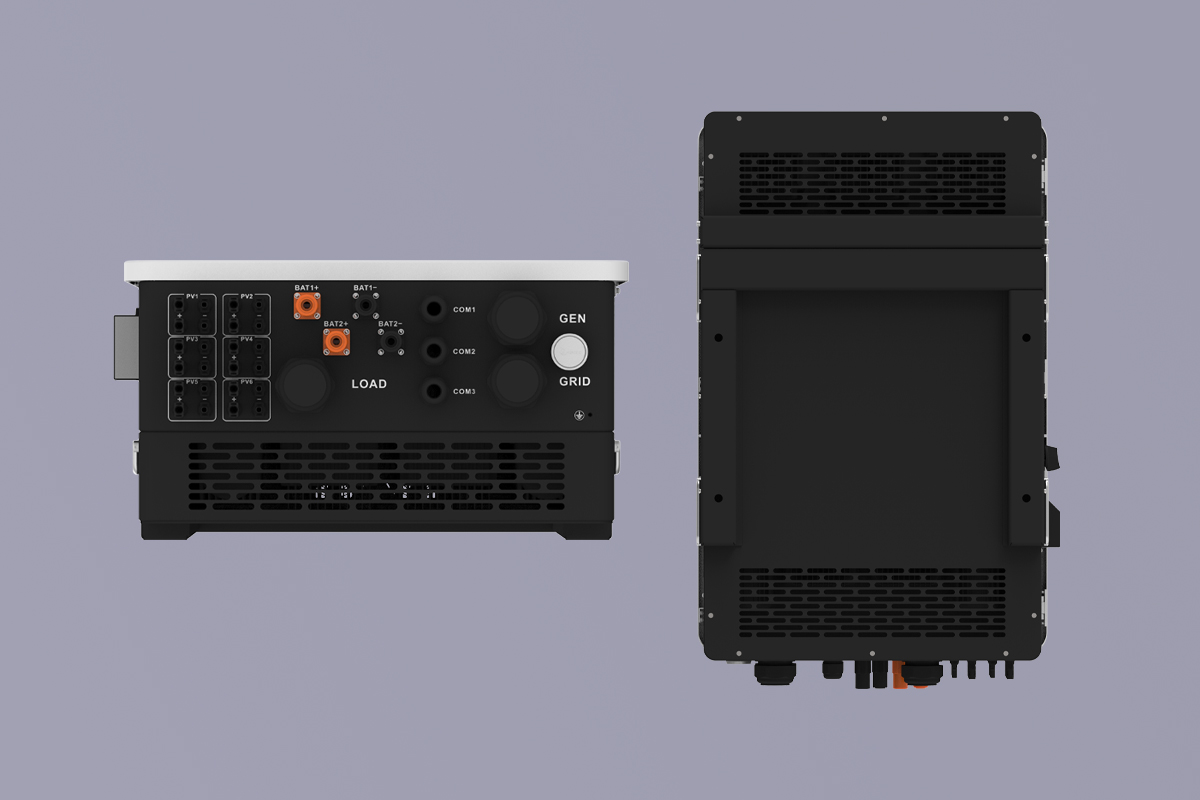

DEYE SUN-607580K-SG02HP3-EU-EM6 Three-Phase High Voltage Hybrid Storage Inverter (3)

Battery Side Parameters

Item	All Models
Compatible Battery	High-voltage lithium battery only
Battery Voltage Range	160V ~ 1000V
Max Charge Current	80A per channel, total 160A
Max Discharge Current	80A per channel, total 160A
BMS Support	Adaptive automatic BMS matching system

DC PV Input Parameters

Item	SUN-60K	SUN-75K	SUN-80K
Max DC Input Power	120kW	150kW	160kW
Startup Voltage	150V	150V	150V
MPPT Operating Range	150V ~ 850V	150V ~ 850V	150V ~ 850V
Full Load MPPT Range	350V ~ 850V	350V ~ 850V	350V ~ 850V
MPPT Quantity	6 (2+2+2+2+2+2)	6 (2+2+2+2+2+2)	6 (2+2+2+2+2+2)
Max DC Short Circuit Current	54A per MPPT	54A per MPPT	54A per MPPT

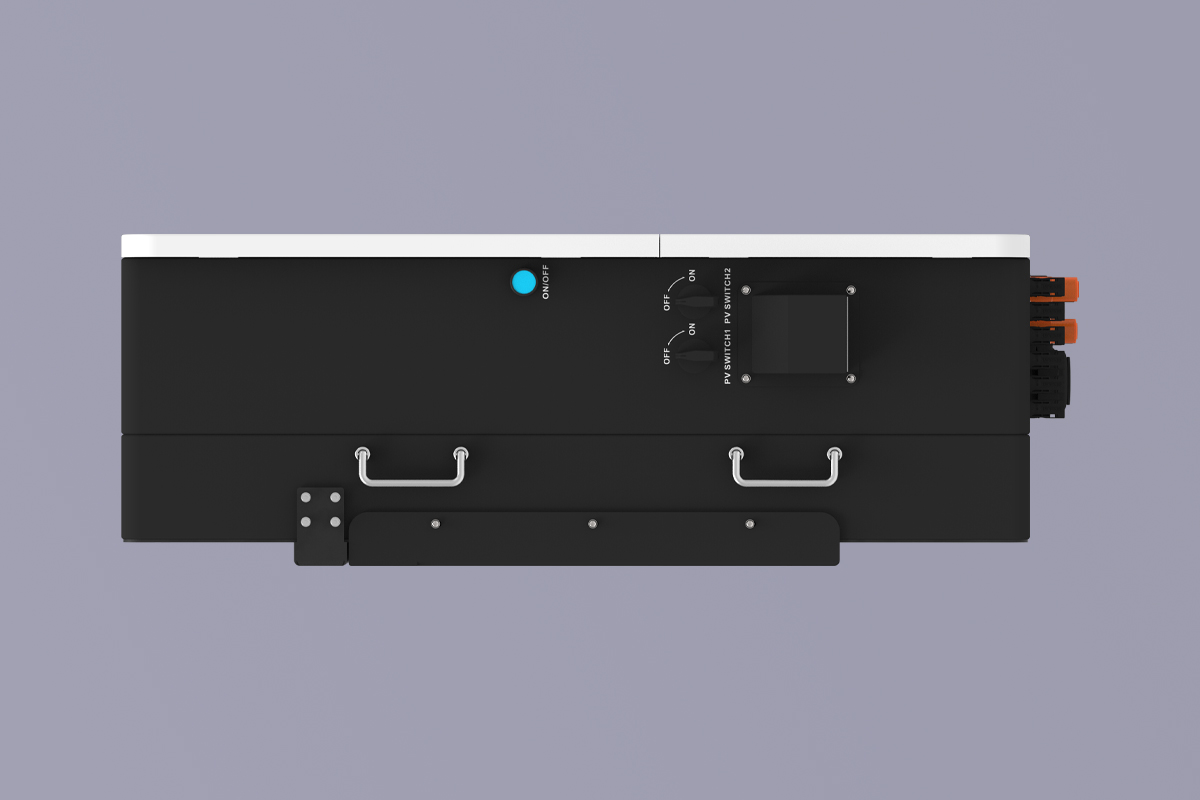

DEYE SUN-607580K-SG02HP3-EU-EM6 Three-Phase High Voltage Hybrid Storage Inverter (5)

AC Output Parameters

Item	SUN-60K	SUN-75K	SUN-80K
Rated AC Active Power	60kW	75kW	80kW
Max AC Apparent Power	66kVA	82.5kVA	88kVA
Rated AC Output Current	91/87A	113.7/108.7A	121.3/116A
Max AC Output Current	100/95.7A	125/119.6A	133.4/127.6A
Grid Bypass Max Current	200A	200A	200A
Off-Grid Peak Power	1.5 × rated power (10s)	1.5 × rated power (10s)	1.5 × rated power (10s)
Grid Standard	3L/N/PE 230/400V, 50/60Hz
Power Factor Range	0.8 lagging ~ 0.8 leading
THDi (Rated Load)	＜3%	＜3%	＜3%
DC Injection Component	＜0.5% In	＜0.5% In	＜0.5% In

Ideal Applications

Small & medium commercial factory energy storage
Industrial peak load shifting & electricity cost reduction
Commercial building emergency backup power
Existing PV station AC coupling renovation
Solar + diesel hybrid off-grid microgrid
Agricultural & rural distributed energy storage

Contact Us

For quotations, technical datasheets, bulk orders and customized commercial energy storage solutions of SUN-60/75/80K inverters, contact SMARAAD sales team. We provide stable delivery and full technical support for global industrial PV & storage projects.
