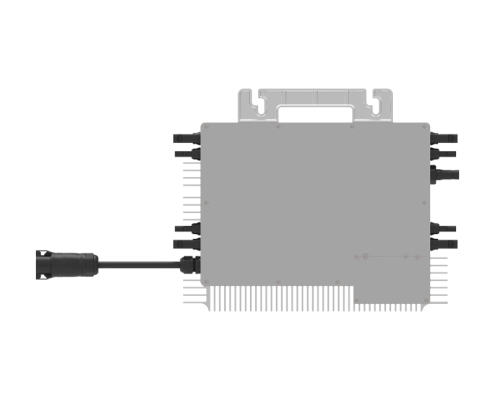

DEYE SUN-M130/160/180/200/220G4-EU-Q0 4-MPPT Micro Inverter Series

Authorized Distributor: SMARAAD

Overview

As official authorized DEYE distributor, SMARAAD supplies this 5-model four-channel micro inverter series. Each unit supports 4 PV modules with independent MPPT tracking, built-in WiFi and IP67 fully sealed housing. Designed for EU balcony plug-and-play solar systems, it meets European rapid shutdown safety standards for residential self-consumption PV.

4 independent MPPT trackers with module-level real-time monitoring
Max DC input current 18A per channel, compatible with high-power panels
IP67 dust & waterproof outdoor enclosure
Integrated WiFi for Deye cloud & mobile APP remote monitoring
<100ms rapid AC shutdown compliant with EU VDE safety codes
Complete grid protection with automatic self-diagnosis
Isolated topology, natural silent cooling
10-year standard factory warranty

Get A Quote

Unified Basic Parameters (All 5 Models)

Item	Specification
Model Series	SUN-M130 / M160 / M180 / M200 / M220G4-EU-Q0
PV Input Channels	4 independent DC channels (1 panel per MPPT)
Protection Grade	IP67
Cooling Mode	Natural passive cooling
Communication	Built-in WiFi (Deye Cloud Platform)
Operating Temp	-40℃ ~ +65℃, power derating above 45℃
Ambient Humidity	0–100% non-condensing
Max Altitude	2000 m
Dimension (W×H×D)	311 × 250.5 × 36.5 mm
Net Weight	5.1 kg
Standard Warranty	10 Years
Certifications	CE, VDE, IEC 62109, EN 50549, full EMC compliance

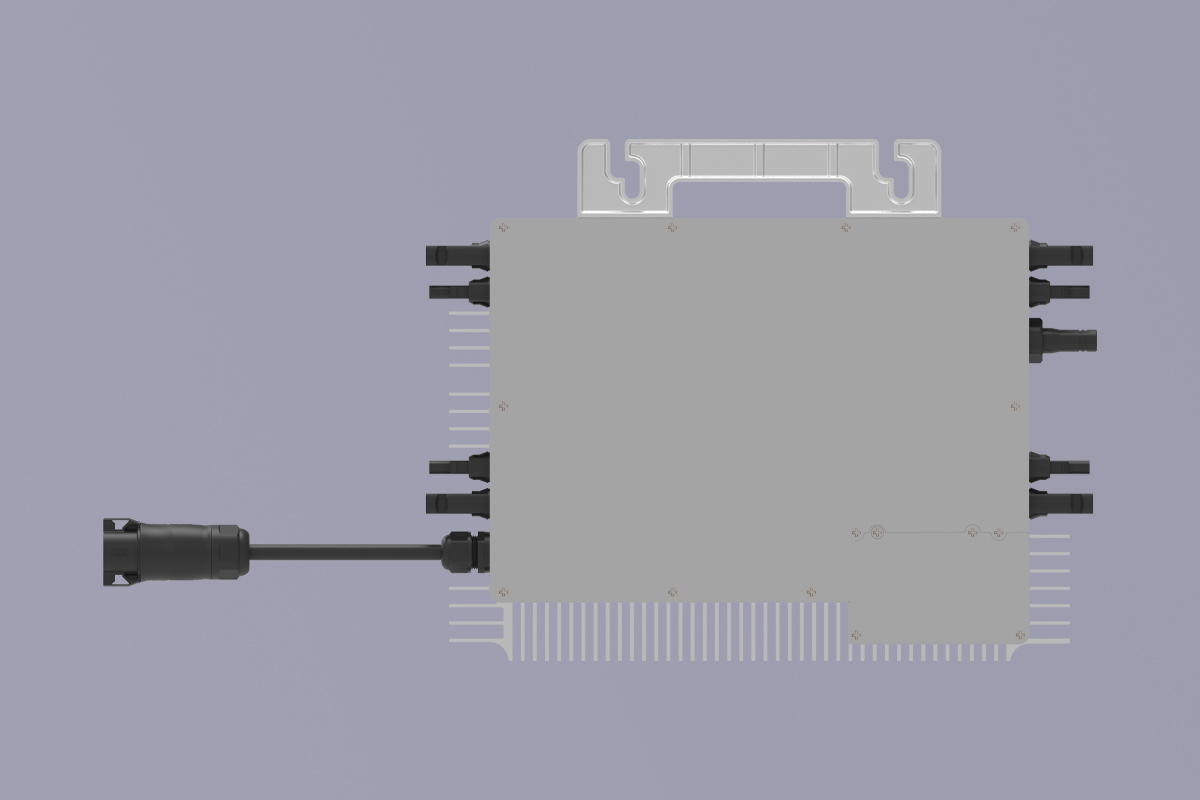

DEYE SUN-M130160180200220G4-EU-Q0 Micro Inverter Series (2)

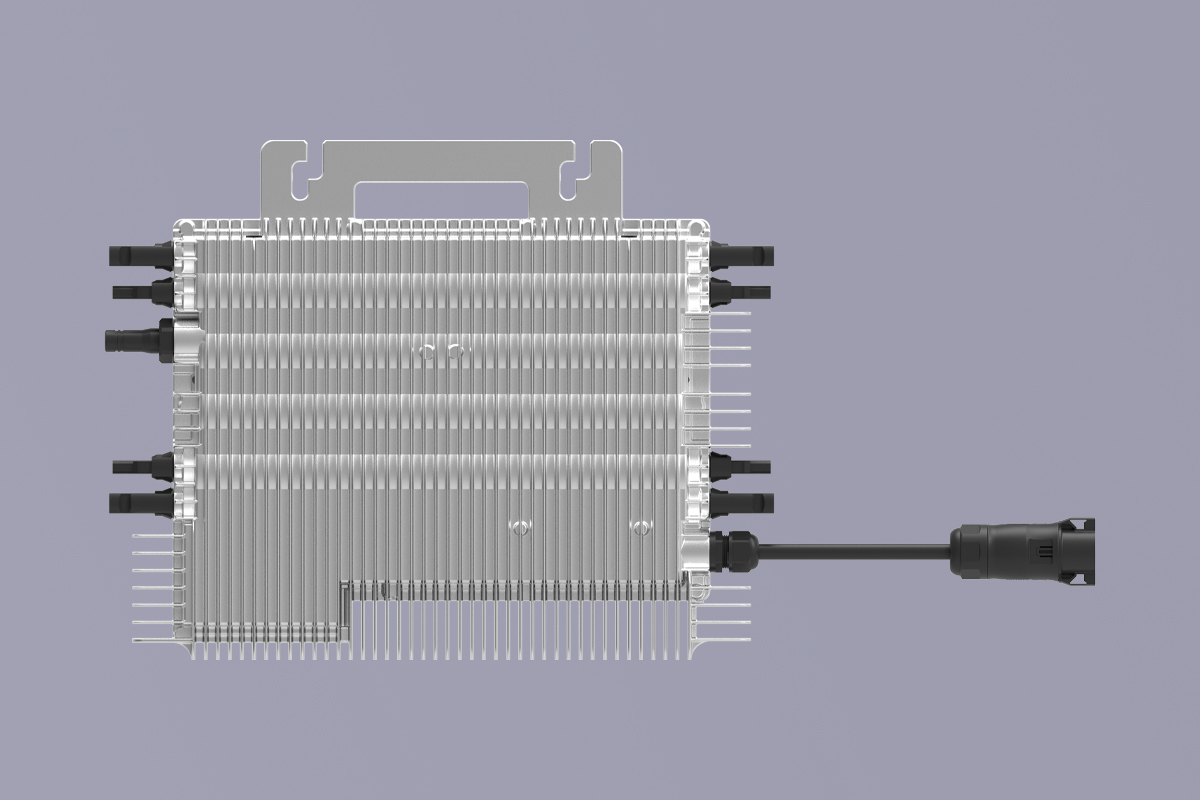

DEYE SUN-M130160180200220G4-EU-Q0 Micro Inverter Series (3)

Unified DC PV Input Parameters (Per Single Channel)

Item	Value
Max PV Open-circuit Voltage	60 V
Startup Voltage	20 V
MPPT Operating Range	25 ~ 55 V
Rated PV Voltage	42.5 V
Max Operating DC Current	18 A
Max DC Short-circuit Current	27 A
Compatible Single Panel Power	M130:210–460W; M160/M180/M200/M220:210–630W

AC Output Parameters by Model

Item	SUN-M130G4	SUN-M160G4	SUN-M180G4	SUN-M200G4	SUN-M220G4
Rated AC Active Power	1300 W	1600 W	1800 W	2000 W	2200 W
Max AC Apparent Power	1300 VA	1600 VA	1800 VA	2000 VA	2200 VA
Rated Output Current	5.7 A	7.0 A	7.9 A	8.7 A	9.6 A
Max Output Current	6.0 A	7.4 A	8.3 A	9.2 A	10.1 A
Grid Connection	Single-phase L+N+PE, 230V
Grid Voltage Range	0.85Un ~ 1.1Un
Grid Frequency Range	45 ~ 55 Hz
Power Factor Range	0.95 lagging ~ 0.95 leading
THDi (Rated Load)	＜3%	＜3%	＜3%	＜3%	＜3%
DC Injection Component	＜0.5% In	＜0.5% In	＜0.5% In	＜0.5% In	＜0.5% In
Max Units Per Single AC Branch	5 pcs	4 pcs	3 pcs	3 pcs	3 pcs

Integrated Protection List

DC reverse polarity protection, AC overcurrent/overvoltage/short-circuit protection, overheat protection, insulation impedance detection, DC component monitoring, anti-islanding protection, rapid shutdown, grid self-test protection; Type II surge protection on DC & AC sides.

Ideal Applications

European apartment balcony plug-and-play PV systems
Multi-panel small household rooftop solar
Terrace & garden residential self-consumption power
Urban low-power distributed photovoltaic projects
