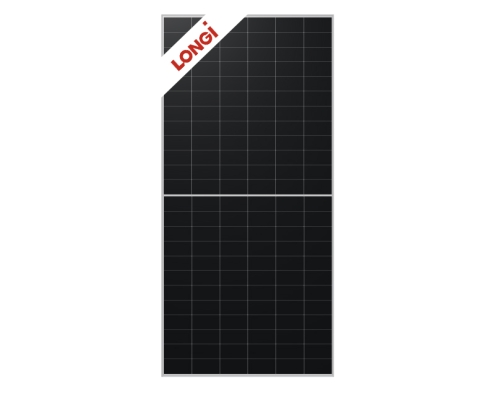

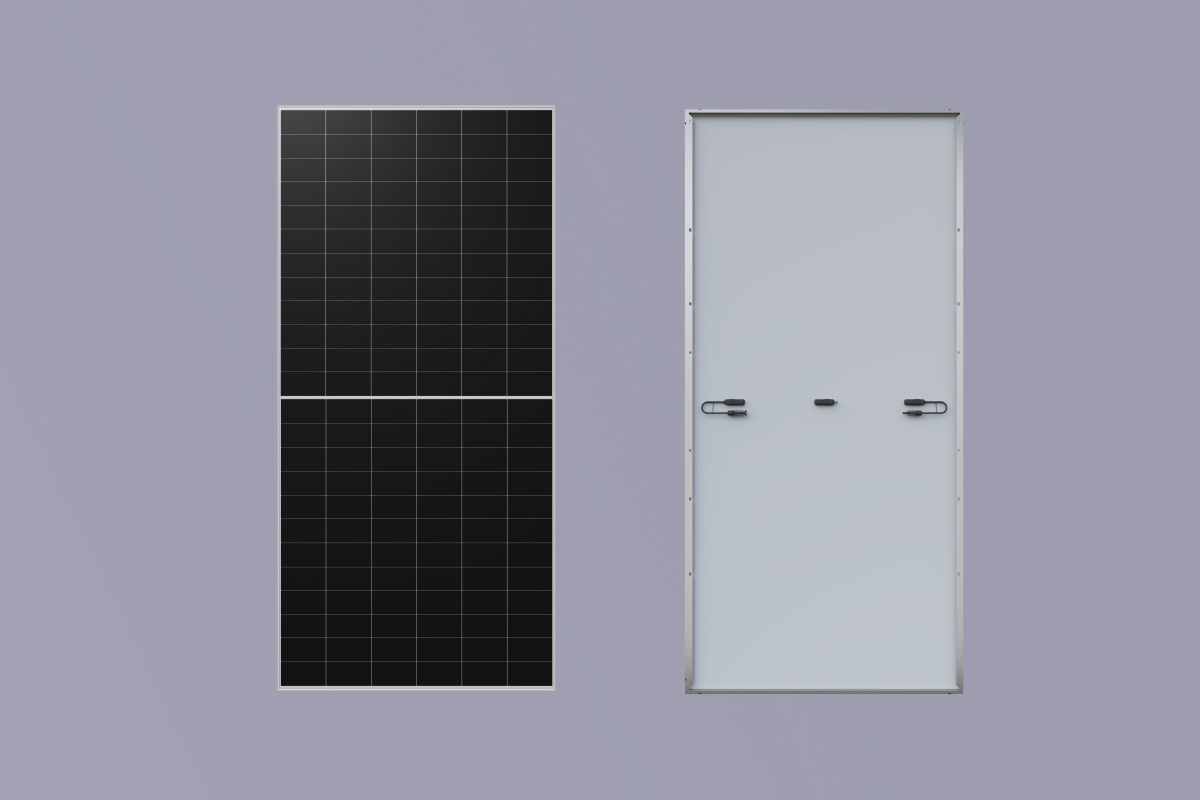

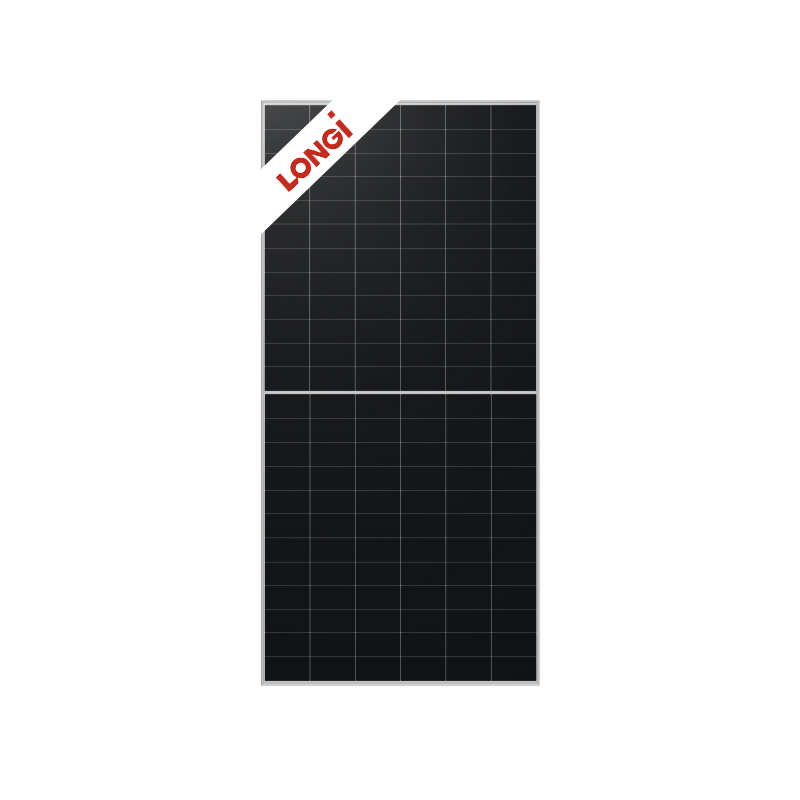

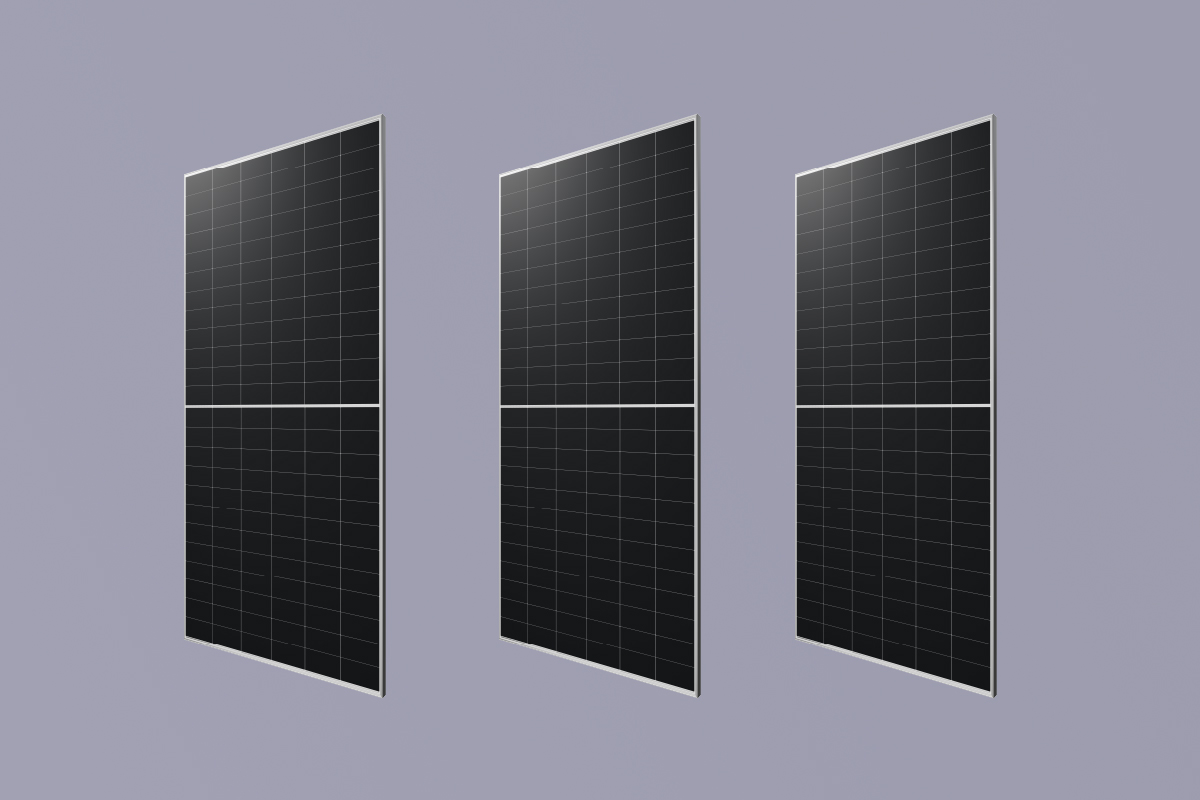

LONGi Hi-MO X10 Scientist LR7-72HVD Solar Panel 640W~670W
640~670W High-Efficiency N-Type PV Module | Authorized Distribution by SMARAAD
Max Efficiency 24.80% | 15-Year Product Warranty | 30-Year Linear Power Output Warranty
As an official authorized distributor of LONGi, SMARAAD proudly supplies the LONGi Hi-MO X10 Scientist LR7-72HVD— a flagship PV module integrated with N-type TaiRui, HPBC 2.0 and 0BB zero busbar technology, delivering 640~670W high power and a maximum conversion efficiency of 24.80%. Featuring A+ grade anti-shading design, grid-free sleek appearance, and multi-layer safety protections against local overheating, impact and microcracks, this module is certified to global IEC/ISO standards and backed by LONGi’s industry-leading warranty. Supported by SMARAAD’s professional distribution, technical support and flexible logistics, it is the ideal choice for utility-scale, commercial, industrial and residential solar installations worldwide.
Mechanical & Operating Parameters
- Cell Configuration: 144 (6×24) N-type HPBC 2.0 cells
- Junction Box: Split type, IP68 waterproof rating
- Output Cable: 4mm², Customizable length (+400/-200mm / ±1400mm)
- Glass: Double glass, 2.0+2.0mm semi-tempered glass (high transmittance, scratch/impact resistance)

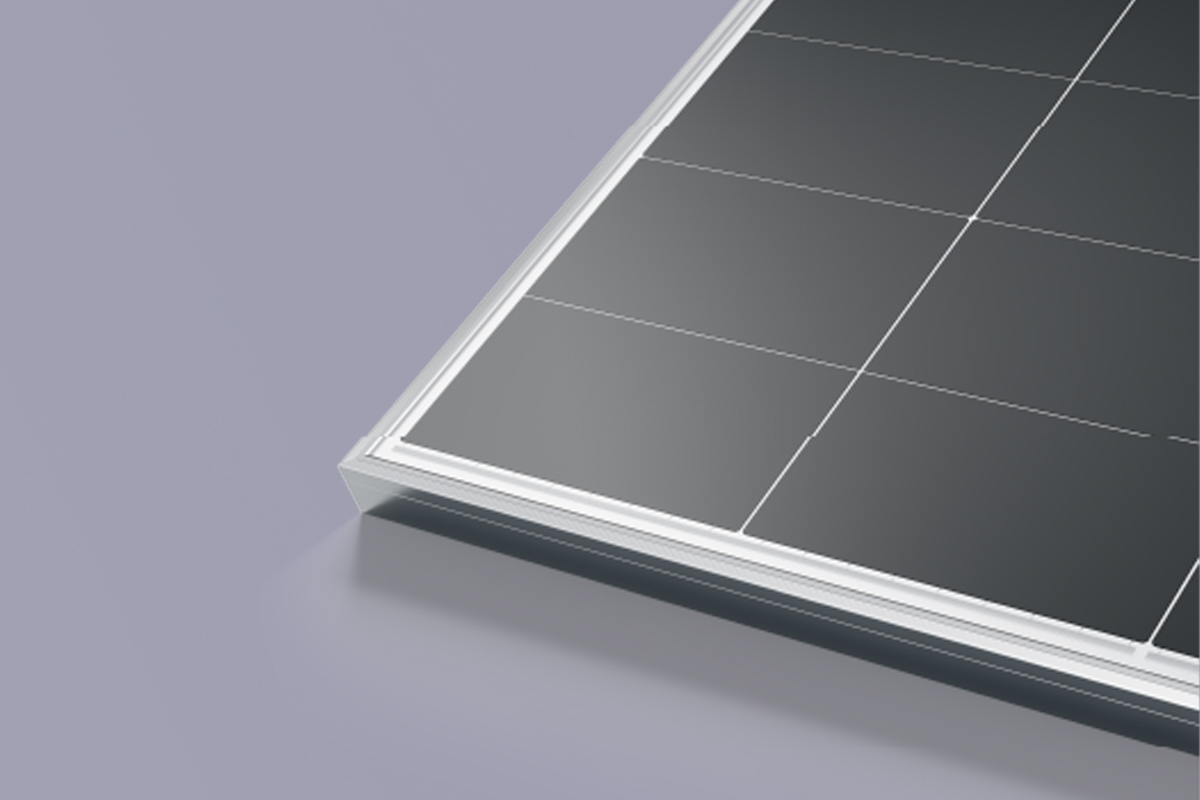

- Frame: Anodized aluminum frame (corrosion-resistant, sturdy structural support)
- Module Weight: 32.5kg
- Module Dimensions: 2382×1134×30mm (Length±2mm / Width±2mm)
- Operating Temperature Range: -40℃ ~ +85℃
- Maximum System Voltage: DC1500V (IEC)
- Maximum Fuse Rating: 30A
- Nominal Operating Cell Temperature (NOCT): 45±2℃
- Safety Class: Class II

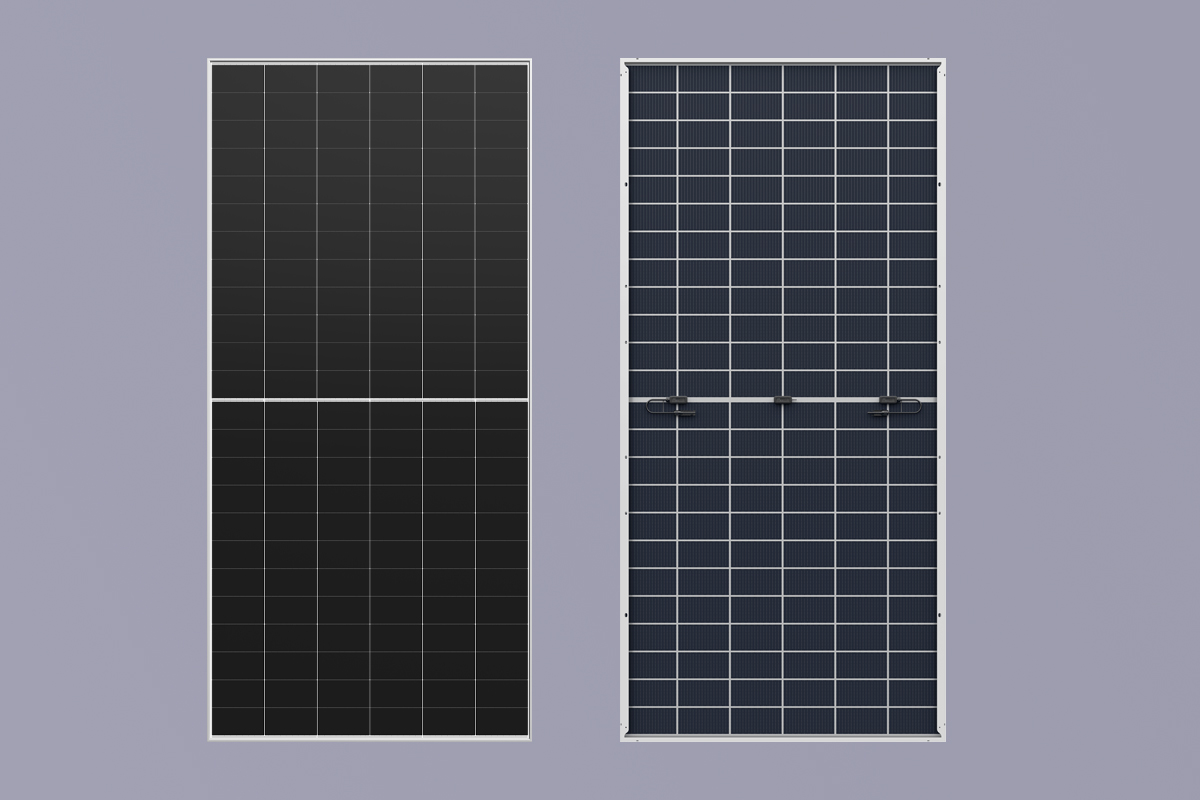

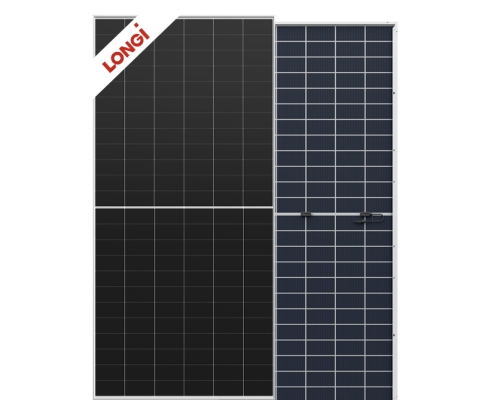

- Bifacial Factor: 70±5%
- Fire Rating: IEC Class C
