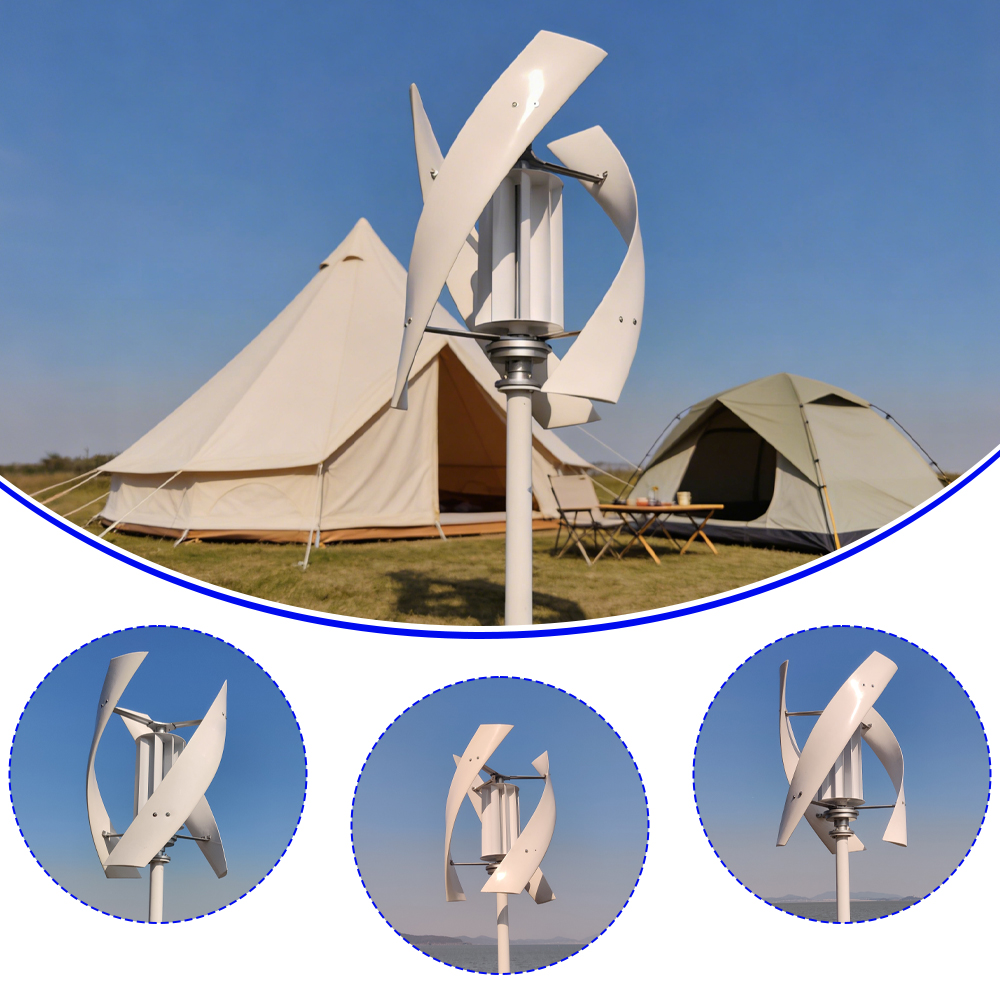

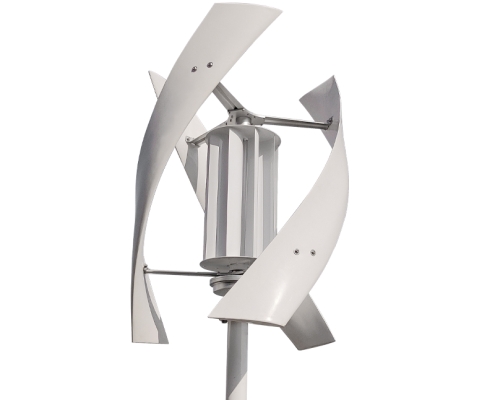

Vertical Axis Wind Turbine SX5 2000W
Low Noise, Low Start-Up Speed, Built-In Safety Protection

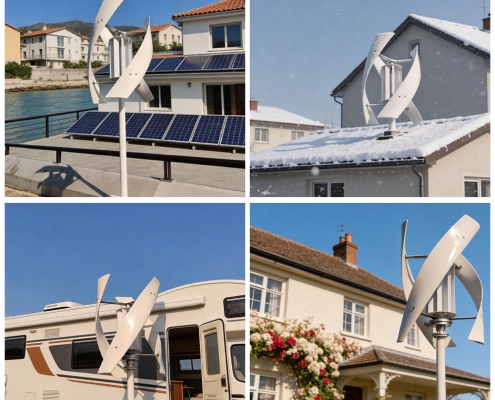

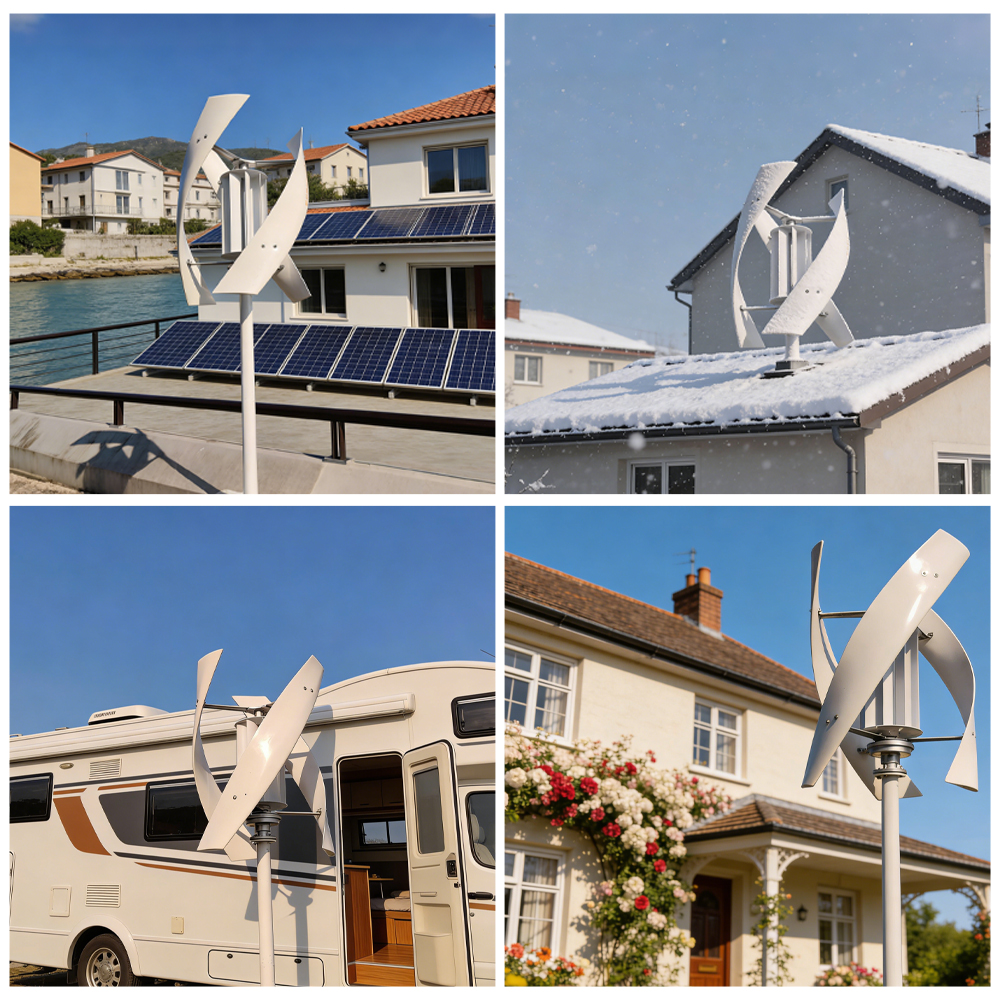

The SX5 is a high-performance vertical axis wind turbine designed for residential, off-grid, and hybrid wind-solar systems. With a rated power of 2000W and a maximum power of 2100W, it features a three-phase permanent magnet generator, low cut-in wind speed, and a compact vertical design for quiet, reliable operation. Engineered for durability and safety, it is the ideal choice for home power backup, remote cabins, RVs, and small renewable energy projects.
Key Features:
- Rated Power: 2000W
- Max Power: 2100W
- Rated Voltage: 12V / 24V / 48V (AC)
- Start Wind Speed: 2.0m/s
- Cut-In Wind Speed: 3.0m/s
- Rated Wind Speed: 13m/s
- Safe Wind Speed: 45m/s

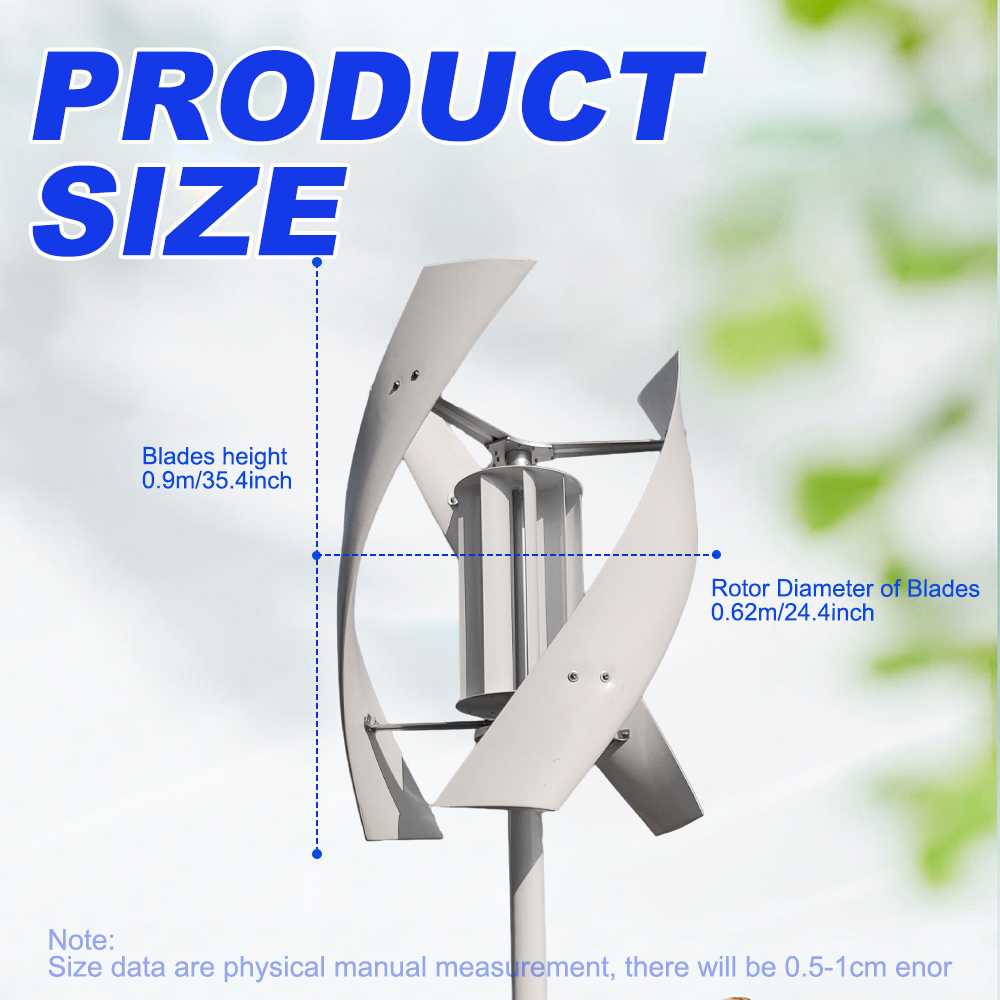

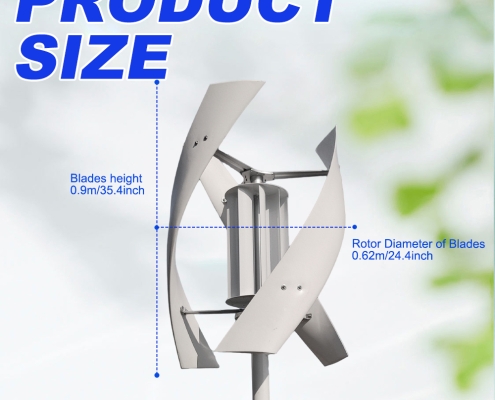

- Rotor Diameter: 0.62m
- Blades Height: 0.9m

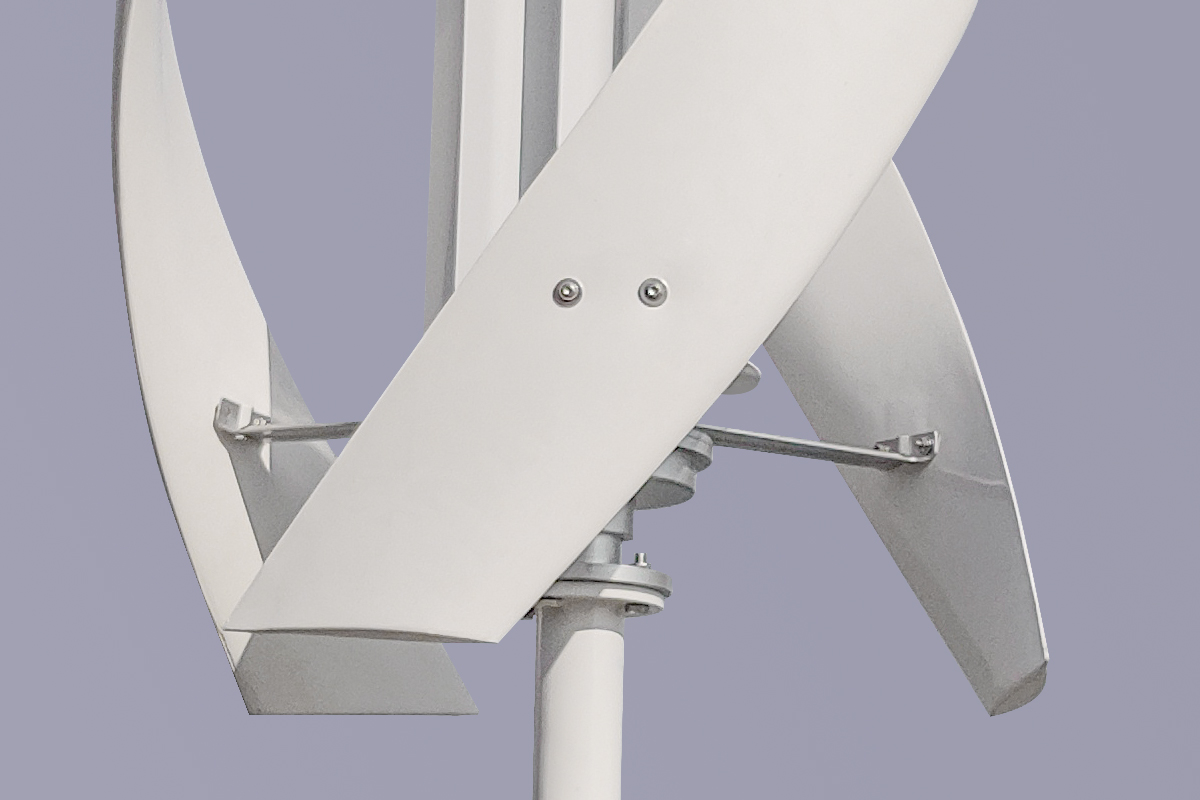

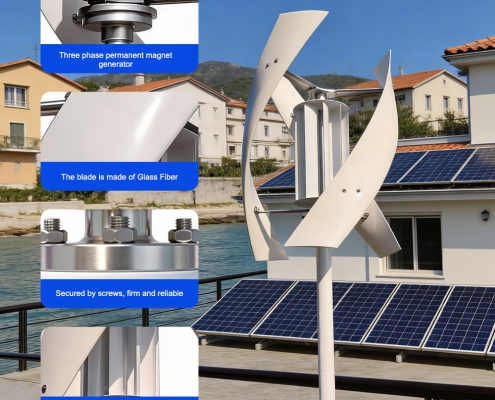

- Blades: 3 glass fiber blades (white, customizable)

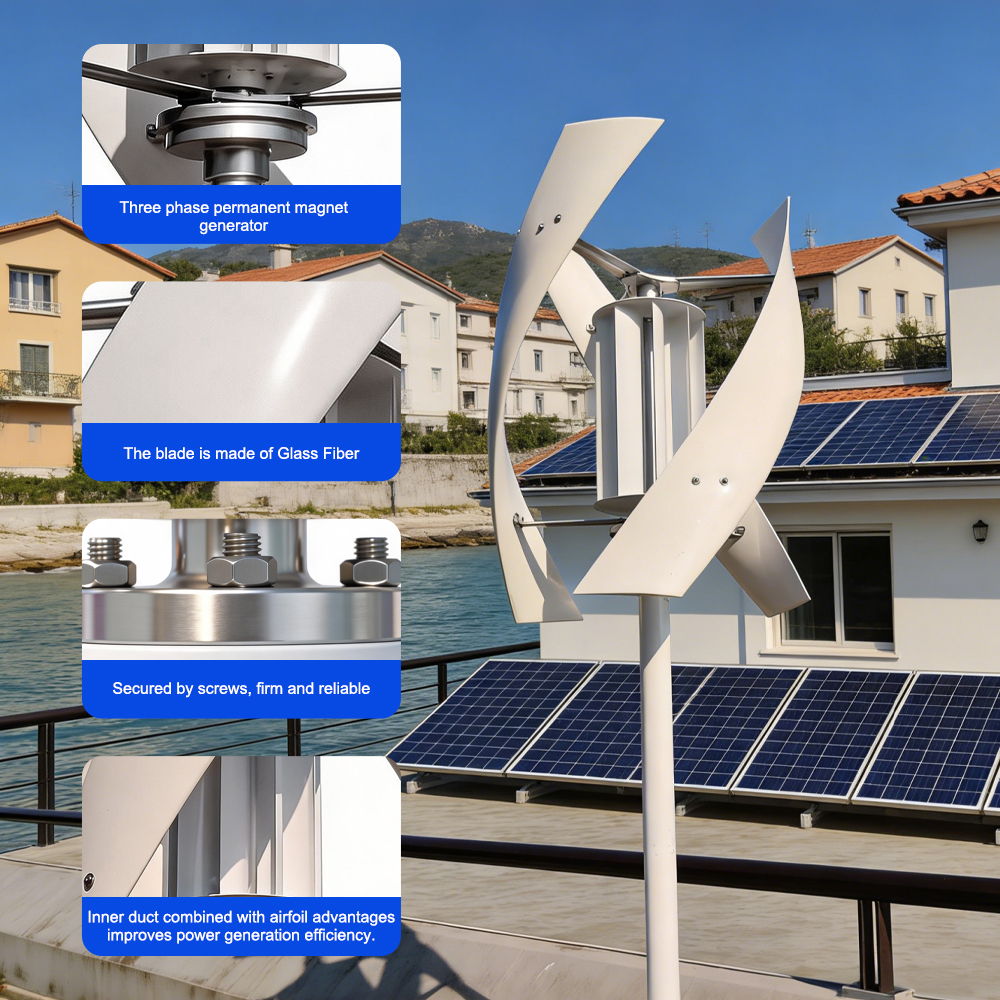

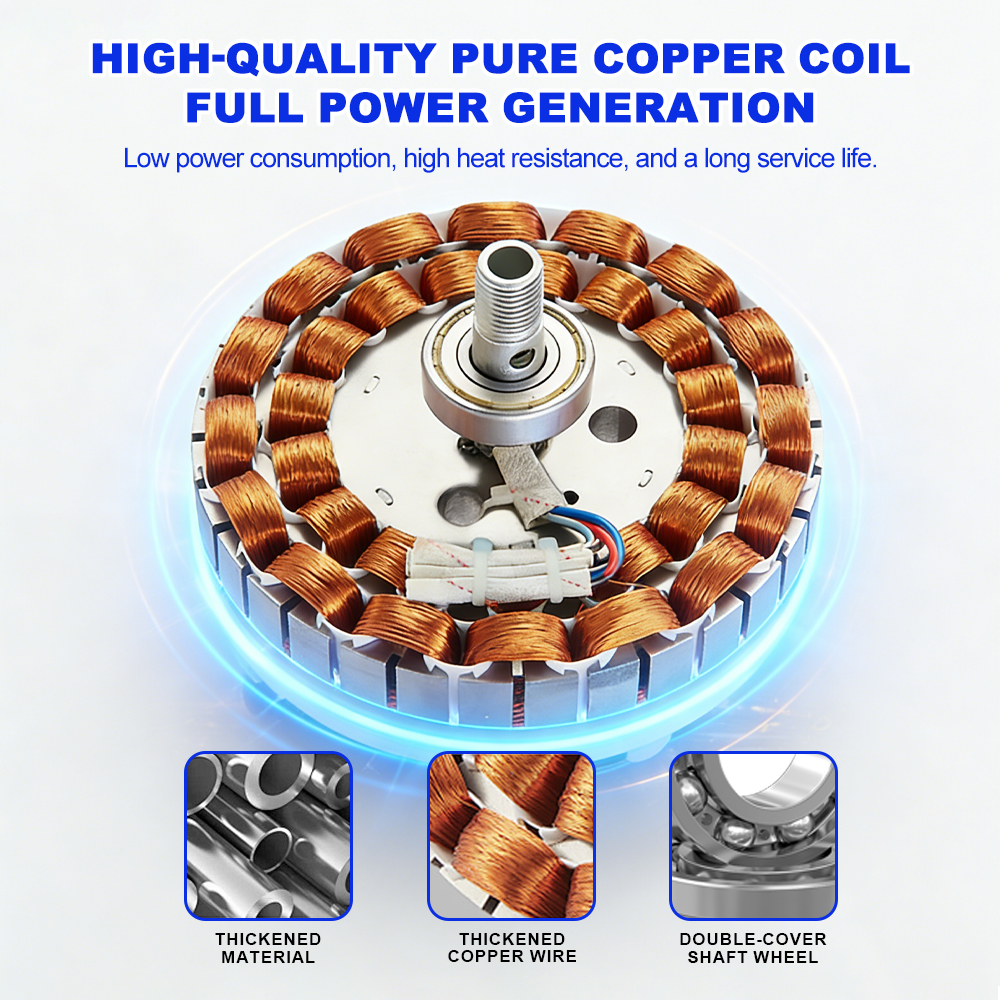

- Generator: Three-phase permanent magnet generator
- Control System: Electromagnet
- Mount Height: 2~12m
- Protection Grade: IP54
- Overspeed Protection: Electromagnetic brake
- Overload Protection: Electromagnetic brake + unloading unit
- Operating Temperature: -25°C ~ +45°C
- Humidity: ≤90%
- Altitude: ≤4500m
- Weight: 31kg
- Packaging Size: 115×39.5×29.5cm
