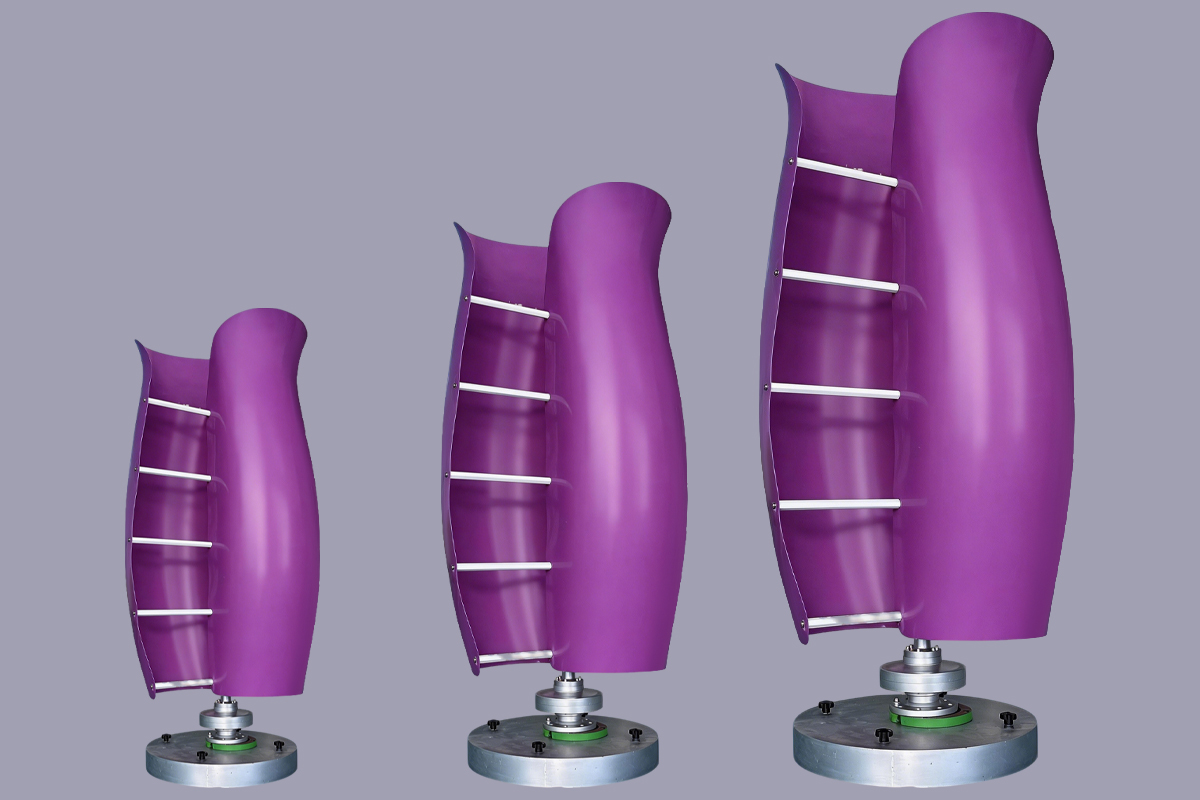

ST Series Tulip-Style Vertical Axis Wind Turbine
1kW / 3kW / 5KW Rated Power, Customizable Colors

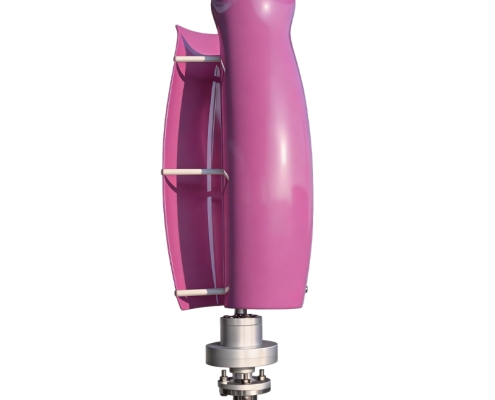

The ST Series Tulip-Style Vertical Axis Wind Turbine is a visually striking, high-performance renewable energy solution, available in three standard power ratings — 1kW, 3kW, and 5kW — with full color customization to match your project aesthetic. Engineered for quiet, efficient, and reliable operation, it is ideal for residential off-grid systems, commercial buildings, remote locations, and wind-solar hybrid installations. The unique tulip-shaped spiral design combines low noise, high wind capture efficiency, and a sleek, modern appearance.
Key Features:
- Rated Power: 1kW / 3kW / 5kW
- Max Power: +5–10% above rated power
- Rated Voltage: 12V / 24V / 48V / 96V (AC, customizable)
- Start-Up Wind Speed: 1.3–2.5 m/s (varies by model)
- Cut-In Wind Speed: 2.5–3.5 m/s (varies by model)
- Rated Wind Speed: 11–13 m/s (varies by model)
- Safe Wind Speed: 40–45 m/s (varies by model)

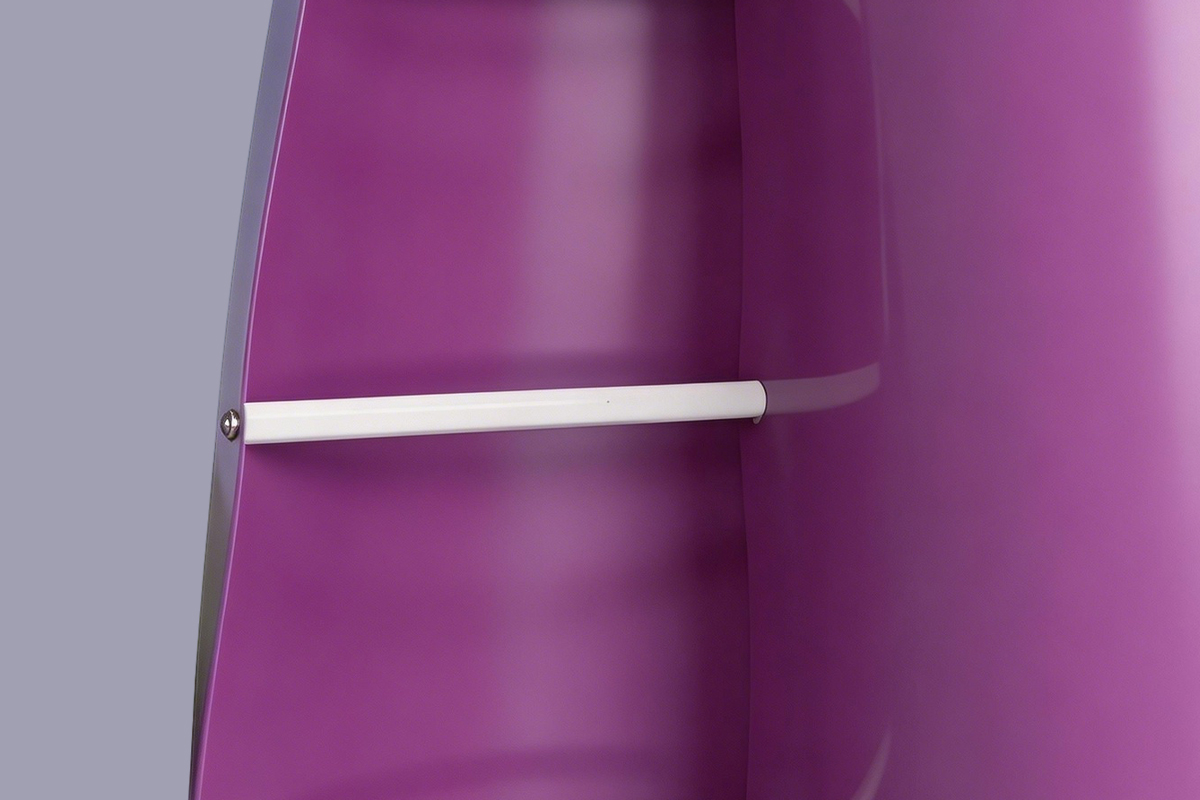

- Blade Material: High-strength, weather-resistant alloy
- Blade Color: Customizable (purple, white, green, blue, orange, etc.)
- Generator: Three-phase permanent magnet generator
- Control System: Electromagnetic brake with overload protection
- Protection Grade: IP54
