Vertical Axis Wind Turbine SX5 2000W Custom Colors

Low Noise, Low Start-Up Speed, Built-In Safety Protection

The SX5 is a high-performance vertical axis wind turbine designed for residential, off-grid, and hybrid wind-solar systems. With a rated power of 2000W and a maximum power of 2100W, it features a three-phase permanent magnet generator, low cut-in wind speed, and a compact vertical design for quiet, reliable operation. Engineered for durability and safety, it is the ideal choice for home power backup, remote cabins, RVs, and small renewable energy projects.

Rated Power: 2000W
Max Power: 2100W
Rated Voltage: 12V / 24V / 48V (AC)
Start Wind Speed: 2.0m/s
Cut-In Wind Speed: 3.0m/s
Rated Wind Speed: 13m/s
Safe Wind Speed: 45m/s
Rotor Diameter: 0.62m
Blades Height: 0.9m
Blades: 3 glass fiber blades (white, customizable)
Generator: Three-phase permanent magnet generator
Control System: Electromagnet
Mount Height: 2~12m
Protection Grade: IP54
Overspeed Protection: Electromagnetic brake
Overload Protection: Electromagnetic brake + unloading unit
Operating Temperature: -25°C ~ +45°C
Humidity: ≤90%
Altitude: ≤4500m
Weight: 31kg
Packaging Size: 115×39.5×29.5cm

8 Overseas Warehouses | 20+ Countries Served | 24/7 Support

Get A Quote

Ultra-Low Start-Up & Cut-In Wind Speed

Boasts an exceptionally low start-up wind speed of 2.0m/s and a cut-in wind speed of 3.0m/s, allowing it to begin generating power even in gentle breezes. This maximizes energy capture in low-wind environments, making it suitable for a wide range of geographic locations.

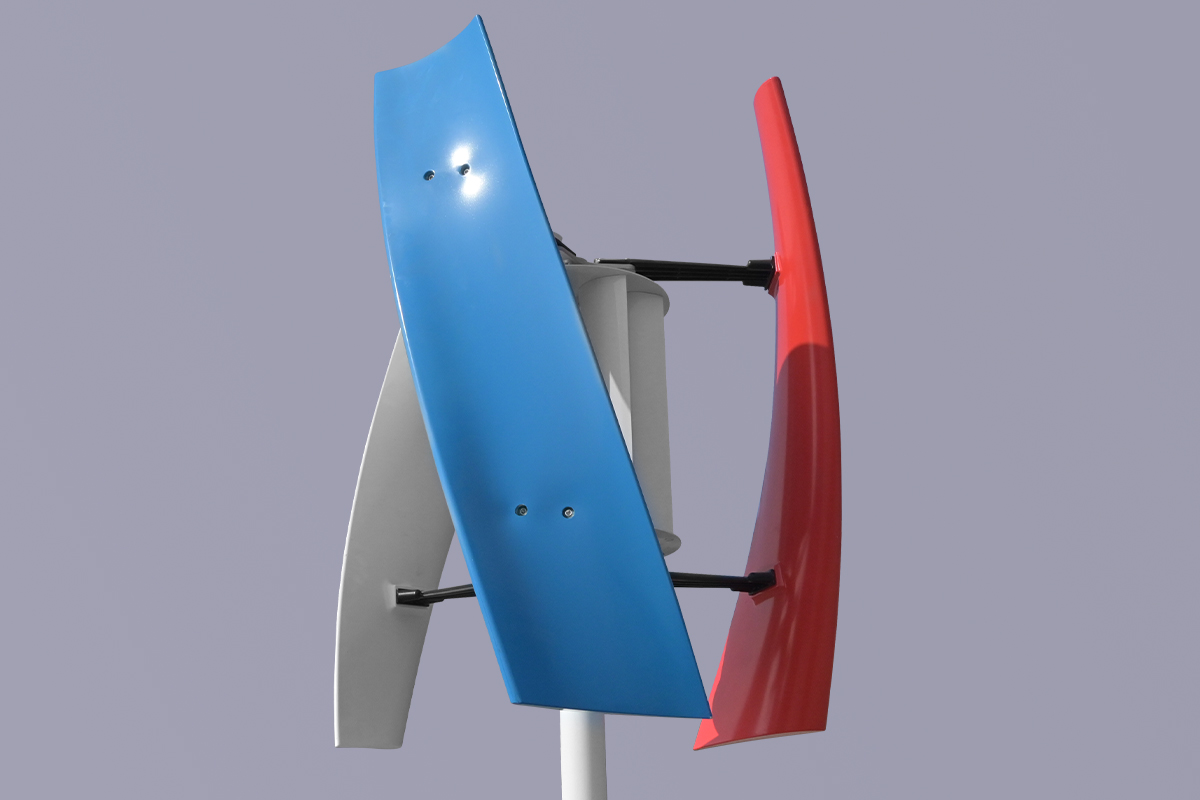

Vertical Axis Wind Turbine SX5 2000W Custom Colors (1)

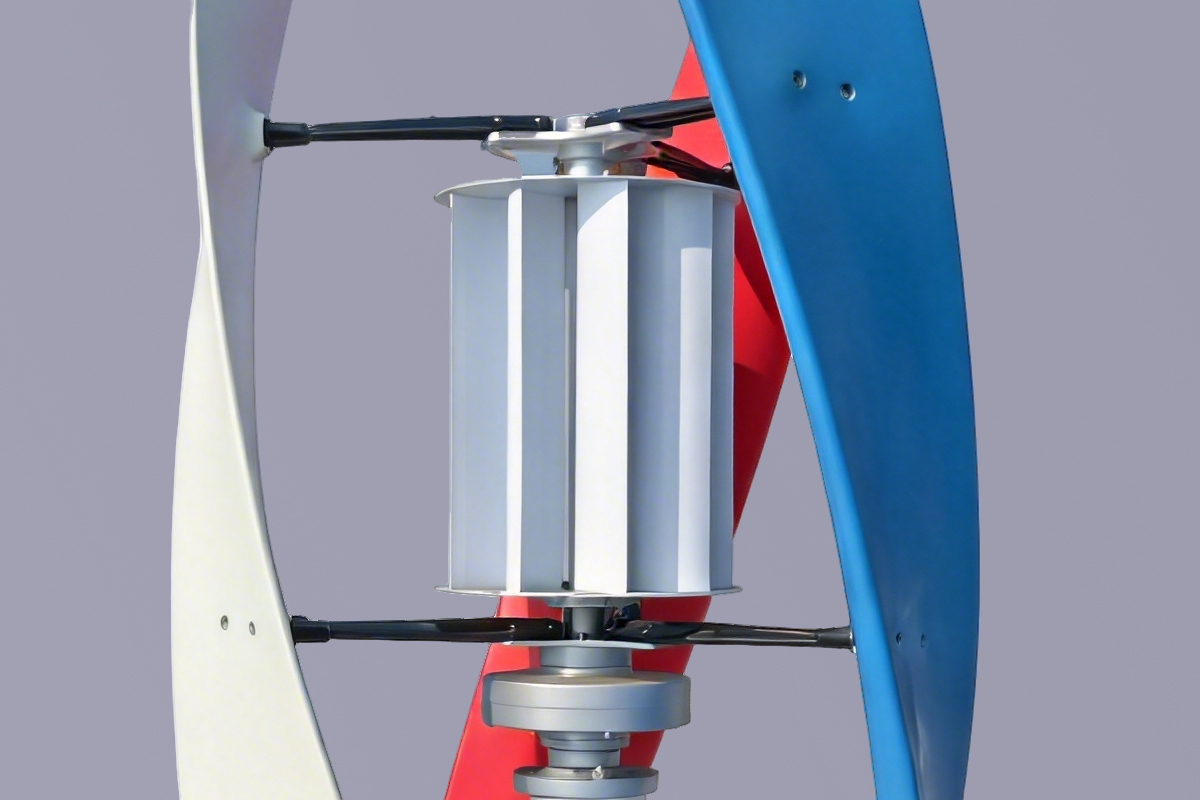

Vertical Axis Wind Turbine SX5 2000W Custom Colors (4)

Durable Glass Fiber Blades with Customizable Colors

Equipped with 3 high-strength glass fiber blades (white as standard, with custom color options available). The reinforced inner blade structure ensures durability and corrosion resistance, while the customizable colors let you match the turbine to your home, property, or project design.

Advanced Safety & Protection Systems

Integrates comprehensive safety features to protect the turbine in extreme conditions:
- Electromagnetic Brake: Automatically activates to prevent overspeeding
- Overspeed & Overload Protection: Dual protection via electromagnetic brake and unloading unit
- IP54 Protection Grade: Dust-proof and water-resistant, suitable for outdoor use
- 45m/s Safe Wind Speed: Withstands strong winds for reliable operation in harsh climates

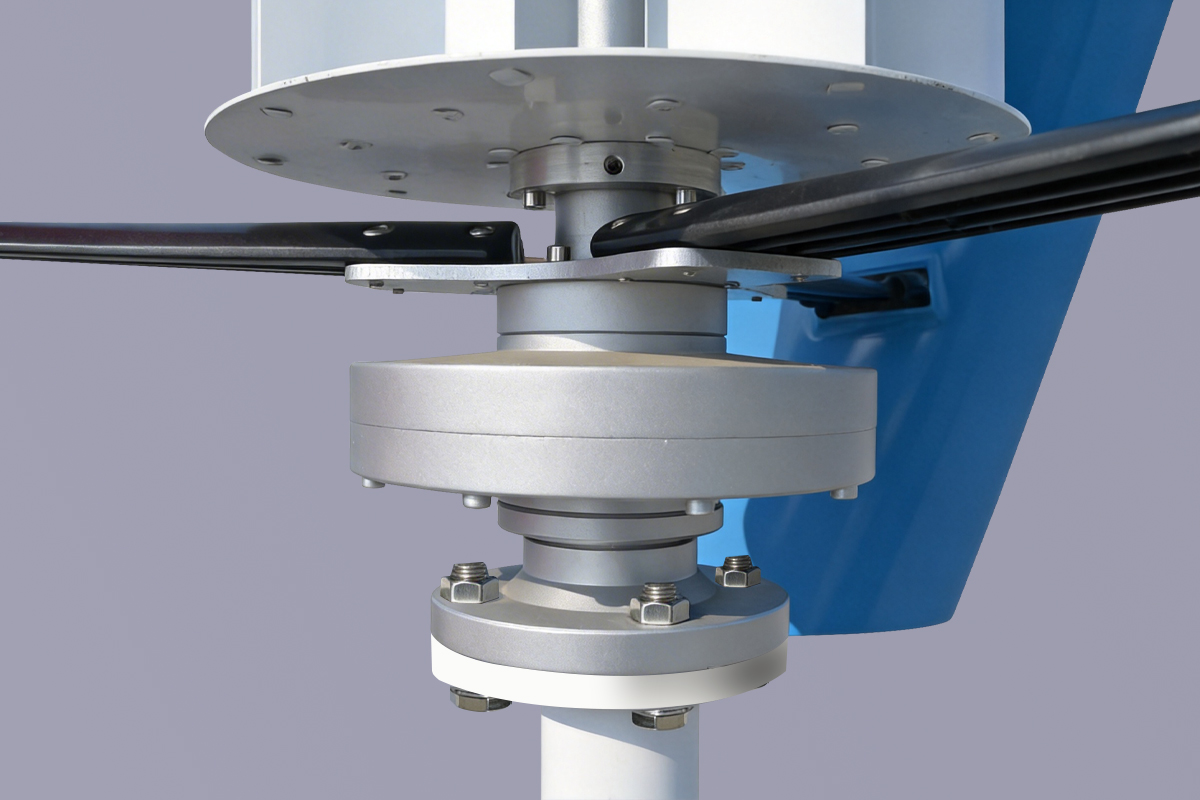

Vertical Axis Wind Turbine SX5 2000W Custom Colors (3)

Built to Last in Any Environment

- Rotor Diameter: 0.62m | Blades Height: 0.9m
- Mount Height: Compatible with poles 2~12m tall for flexible installation
- Low Maintenance: Durable construction with minimal upkeep required
- Quiet Operation: Vertical axis design produces low noise, suitable for residential use
Whether you’re on a mountain, by the coast, or in an open field — the SX5 is ready to perform.

Ideal Applications

Off-grid homes and cabins
Communication towers and weather stations
Small commercial and agricultural setups
Remote monitoring and backup systems

What’s in the Box

SX5 2000W Wind Turbine with blades
MPPT Hybrid Controller
Installation accessories
User manual
