Spiral Vertical Axis Wind Turbine SS1000W Customizable Color Blades

Efficient. Durable. Designed for Off-Grid Power.

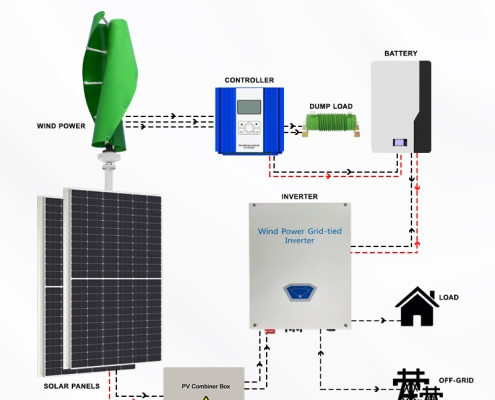

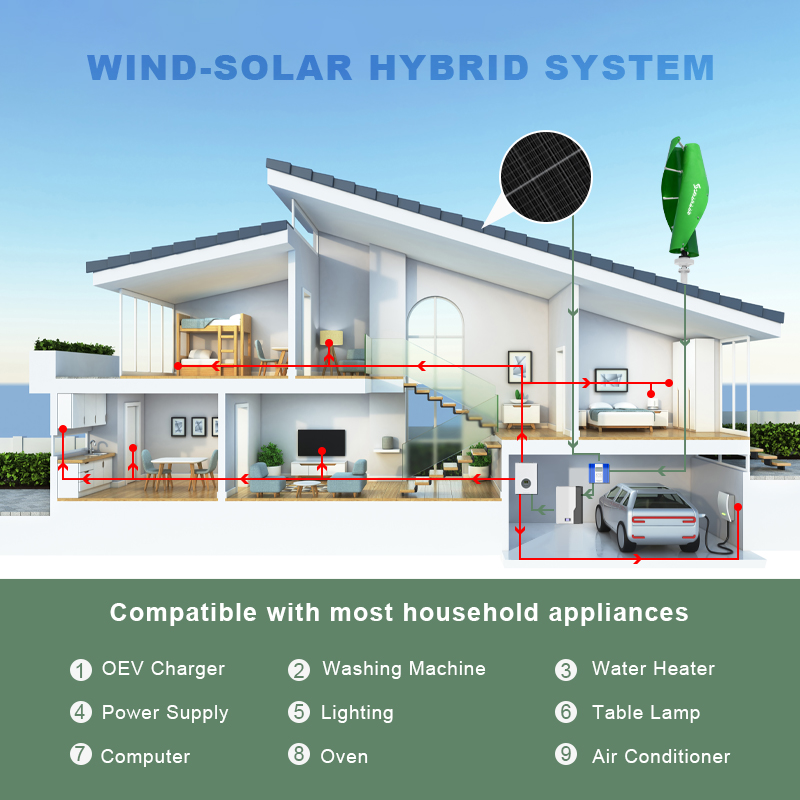

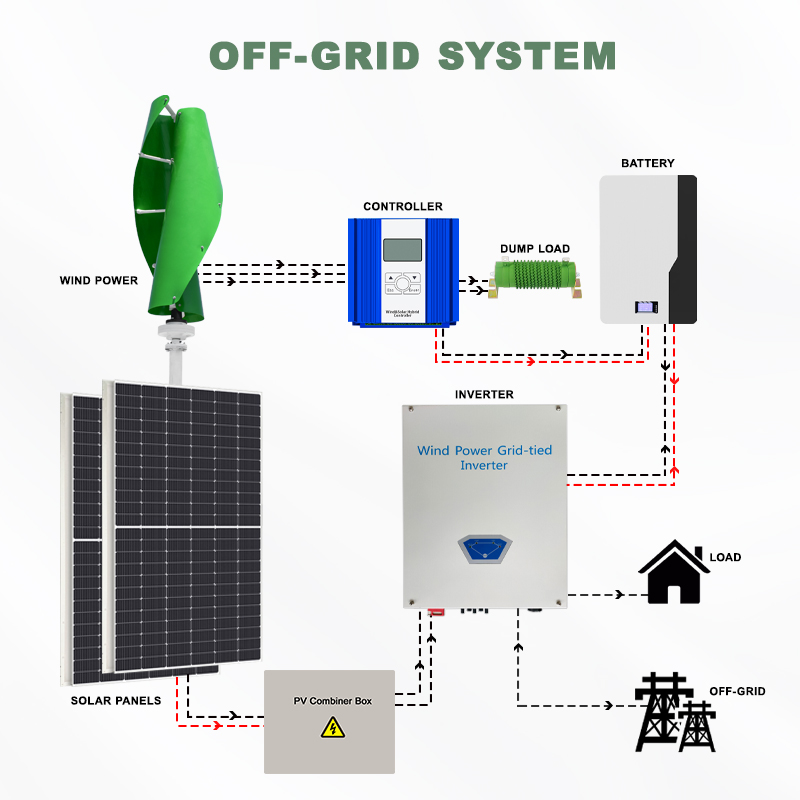

The SS-1000W is a high-efficiency spiral vertical axis wind turbine designed for residential, off-grid, and wind-solar hybrid systems. With a rated power of 1000W and a maximum power of 1050W, it features a low start-up speed, durable glass fiber blades, and a three-phase permanent magnet suspension motor for quiet, reliable operation. Customizable blade colors are available to match your project’s aesthetic needs, making it the ideal choice for home power backup, remote cabins, RVs, boats, and small renewable energy projects.

Key Features:

Rated Power: 1000W
Max Power: 1050W
Rated Voltage: 12V / 24V / 48V (AC)
Start Wind Speed: 1.3m/s
Cut-In Wind Speed: 2.5m/s
Rated Wind Speed: 11m/s
Safe Wind Speed: ≤40m/s
Rotor Diameter: 0.52m
Blades Height: 1.3m
Blades: 2 glass fiber blades (customizable colors available)
Generator: Three-phase permanent magnet suspension motor
Control System: Electromagnet
Mount Height: 7~12m (recommended 9m)
Flange Diameter: DN25
Protection Grade: IP54
Overspeed Protection: Electromagnetic brake
Overload Protection: Electromagnetic brake + unloading unit
Operating Temperature: -25°C ~ +45°C
Humidity: ≤90%
Altitude: ≤4500m
Assembly Weight: 26kg

Get A Quote

Ultra-Low Start-Up & Cut-In Wind Speed

Boasts an exceptionally low start-up wind speed of 1.3m/s and a cut-in wind speed of 2.5m/s, allowing it to begin generating power even in gentle breezes. This maximizes energy capture in low-wind environments, making it suitable for a wide range of geographic locations

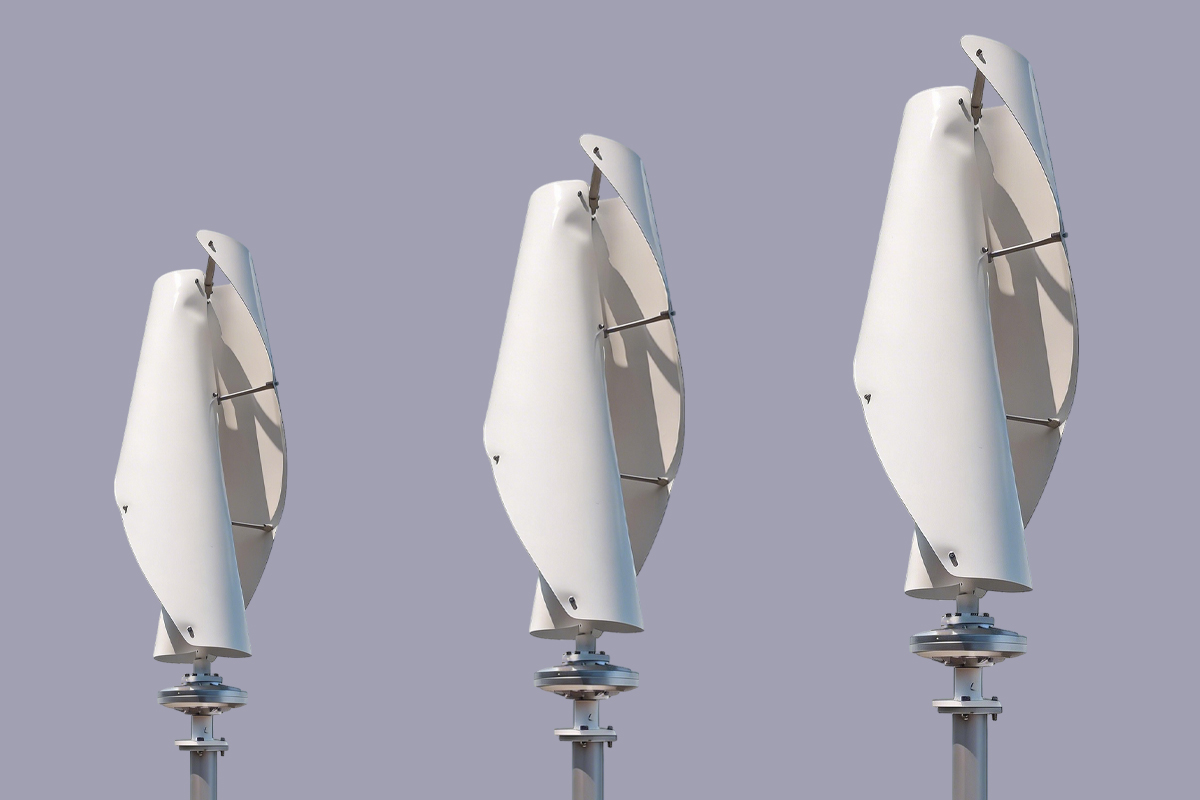

Spiral Vertical Axis Wind Turbine SS1000W Customizable Color Blades (8)

Spiral Vertical Axis Wind Turbine SS1000W Customizable Color Blades (10)

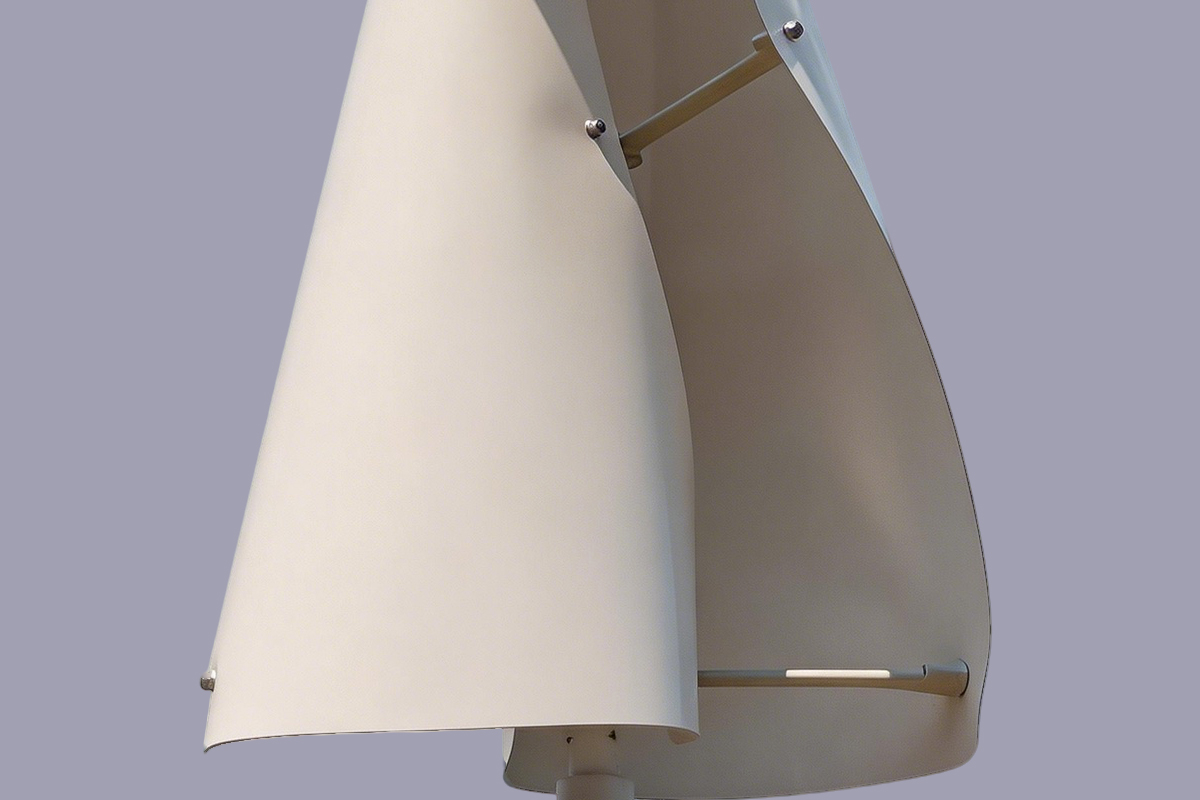

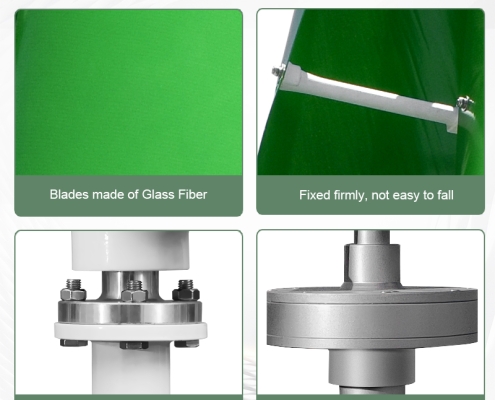

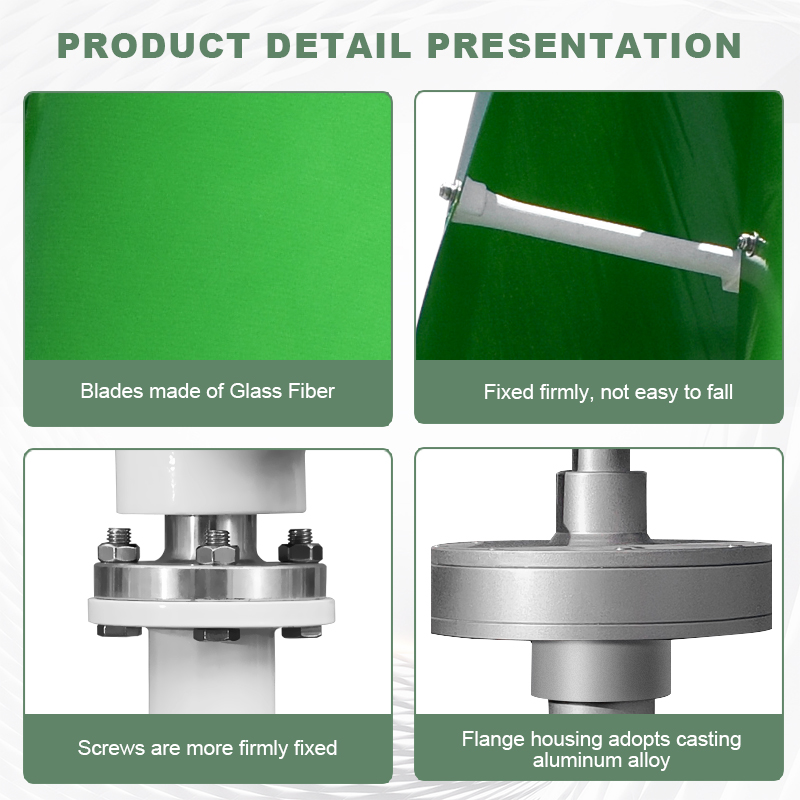

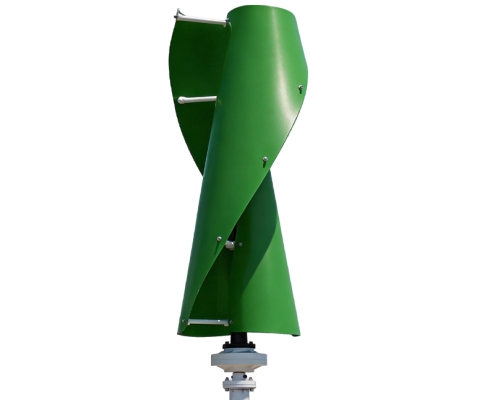

Durable Glass Fiber Blades with Customizable Colors

Equipped with 2 high-strength glass fiber blades, offering excellent corrosion resistance, weatherproof performance, and customizable color options to match your home, property, or project design. The spiral vertical axis design minimizes noise and vibration, ensuring quiet operation in residential areas.

Advanced Safety & Protection Systems

Integrates comprehensive safety features to protect the turbine in extreme conditions:
- Electromagnetic Brake: Automatically activates to prevent overspeeding
- Overspeed & Overload Protection: Dual protection via electromagnetic brake and unloading unit
- IP54 Protection Grade: Dust-proof and water-resistant, suitable for outdoor use
- ≤40m/s Safe Wind Speed: Withstands strong winds for reliable operation in harsh climates

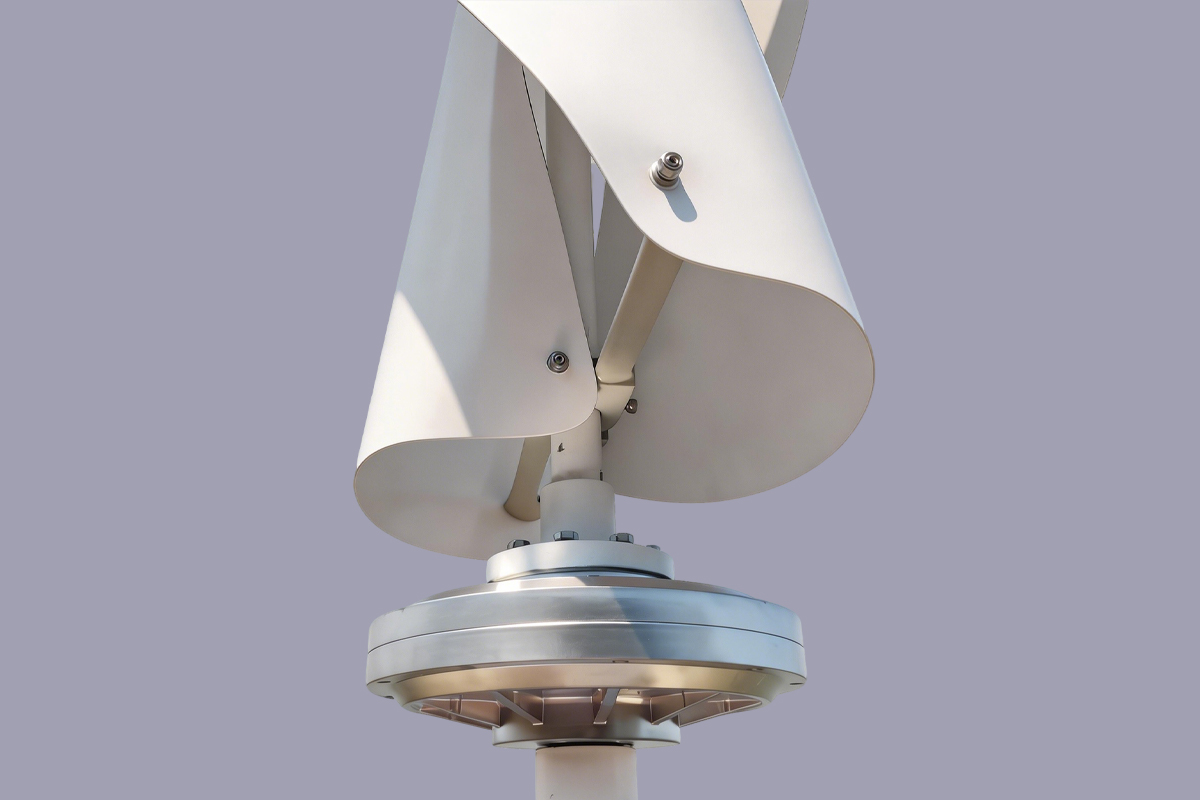

Spiral Vertical Axis Wind Turbine SS1000W Customizable Color Blades (9)

Compact & Versatile Design

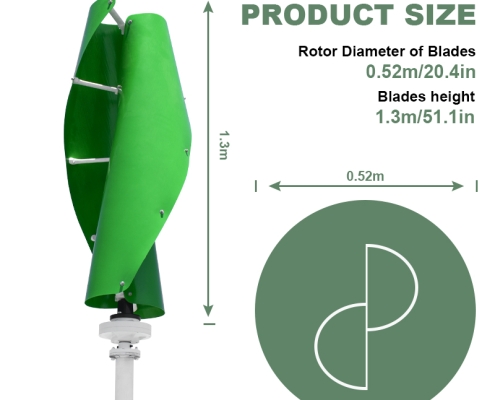

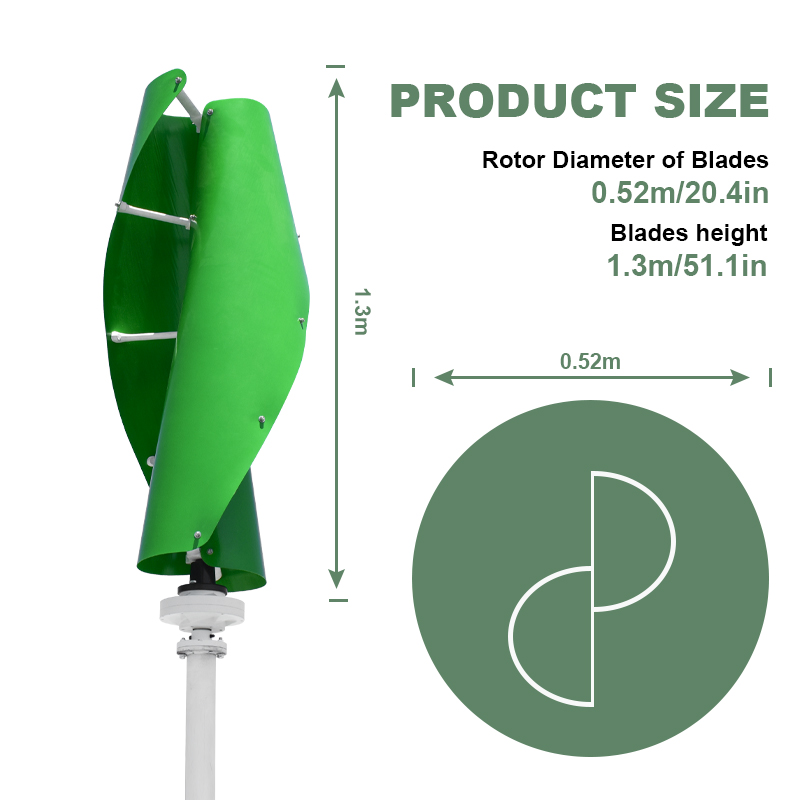

Rotor Diameter: 0.52m | Blades Height: 1.3m
Mount Height: Compatible with poles 7~12m tall (recommended 9m) for flexible installation
Low Maintenance: Durable construction with minimal upkeep required
Quiet Operation: Spiral vertical axis design produces low noise, suitable for residential and marine use

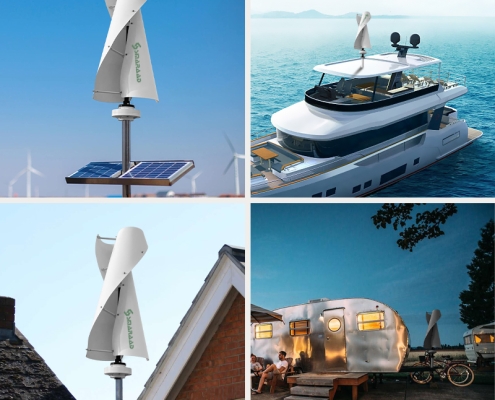

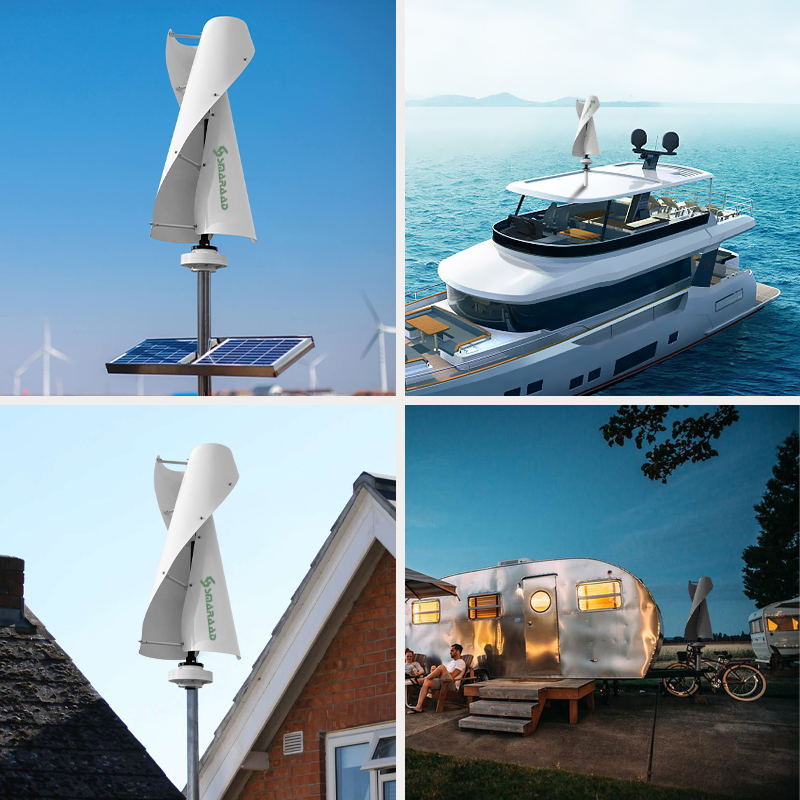

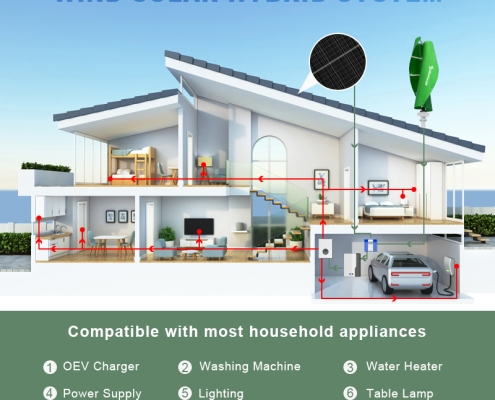

Ideal Applications

Off-grid homes and cabins
Communication towers and weather stations
Small commercial and agricultural setups
Remote monitoring and backup systems
