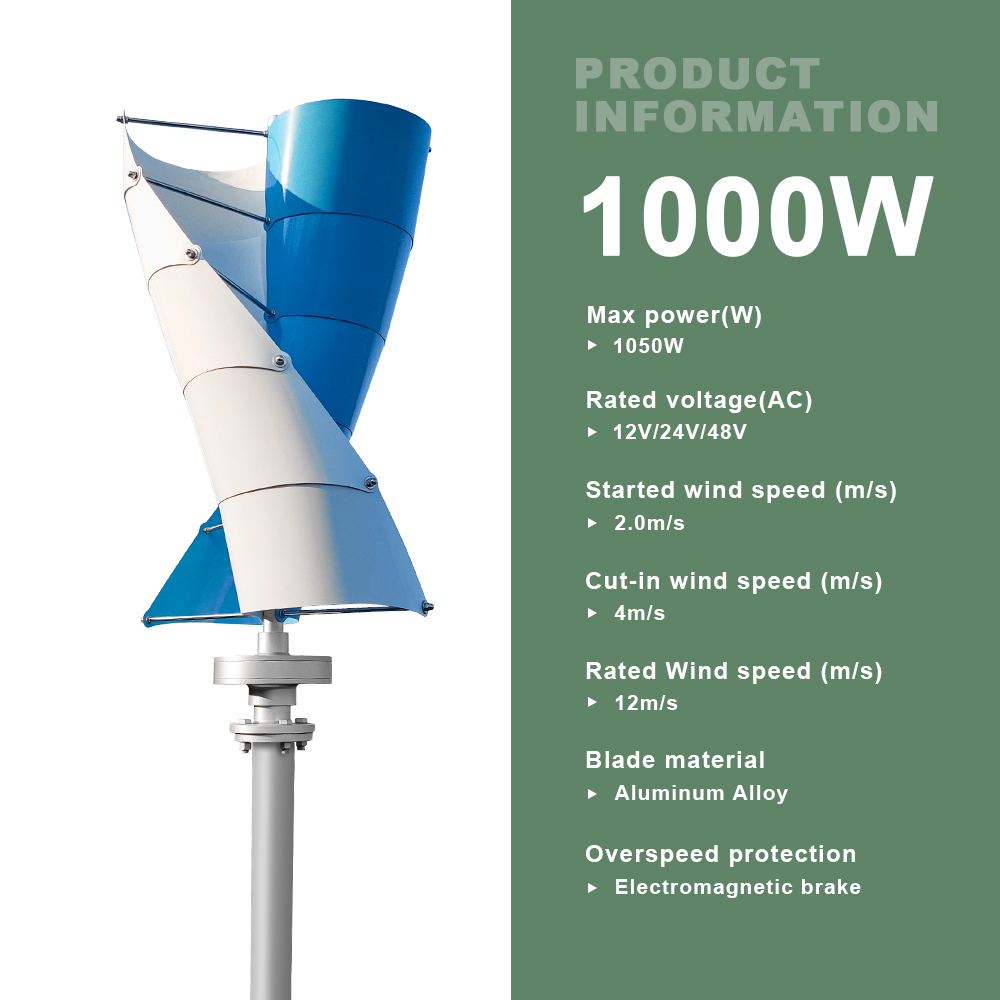

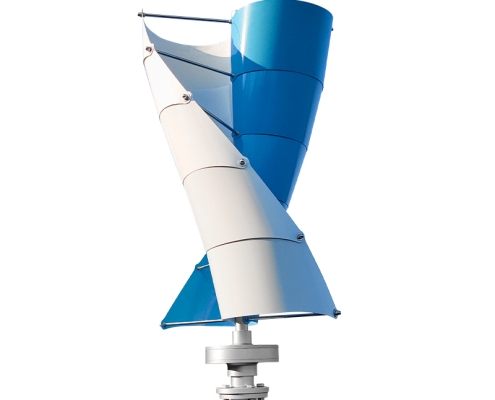

Spiral Vertical Axis Wind Turbine SJ 1000W Blue-White Blades

Efficient. Durable. Designed for Off-Grid Power.

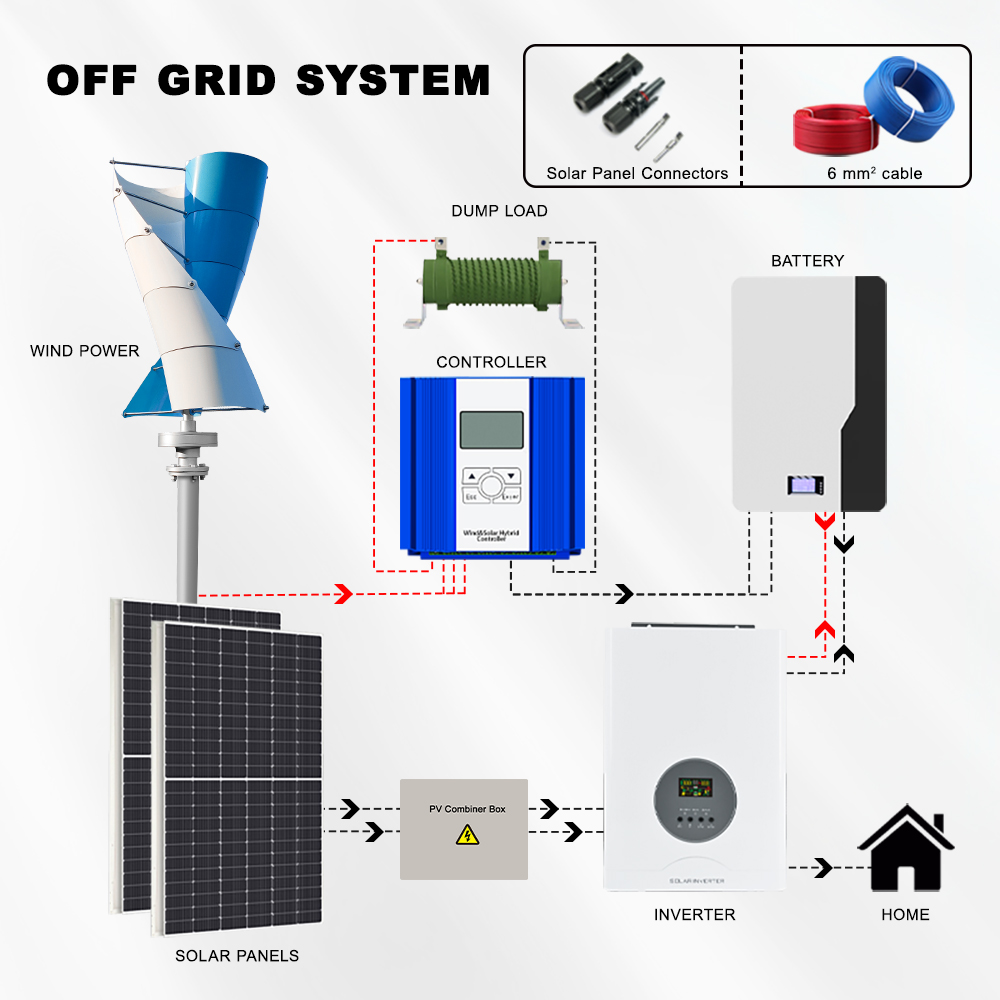

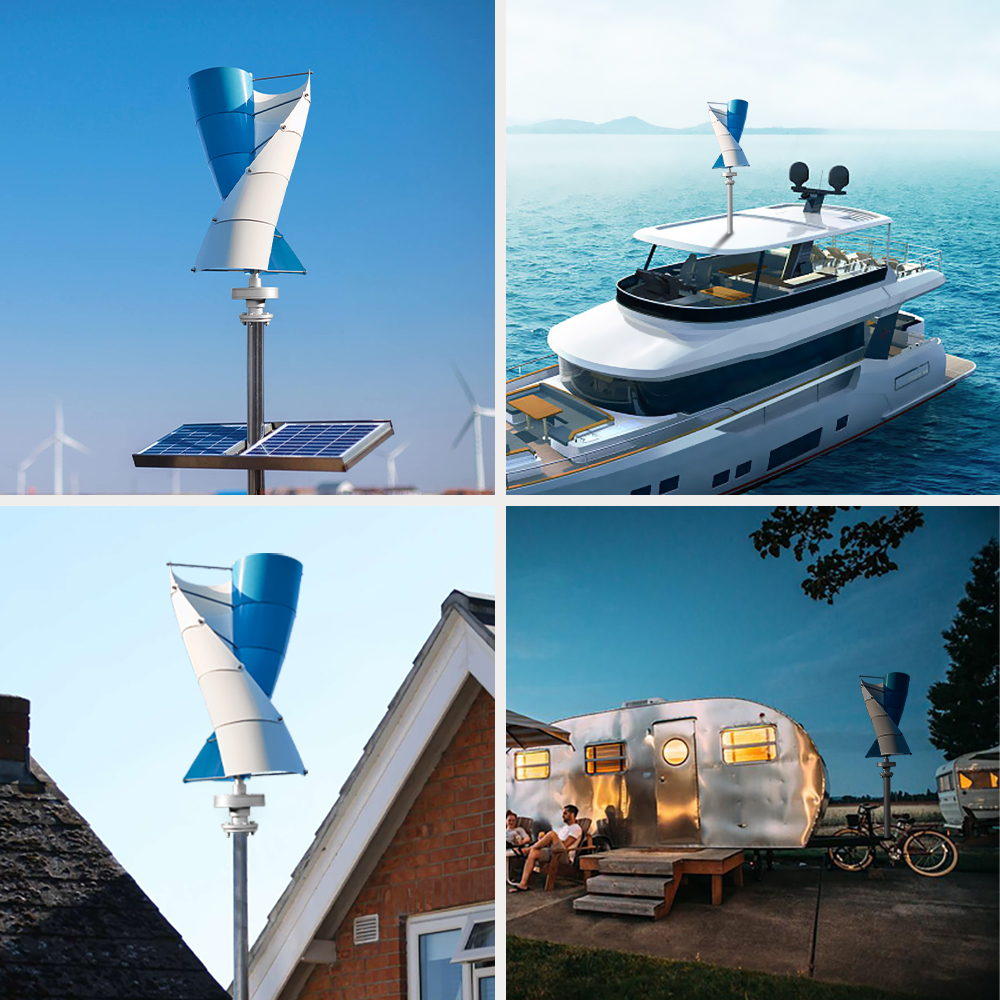

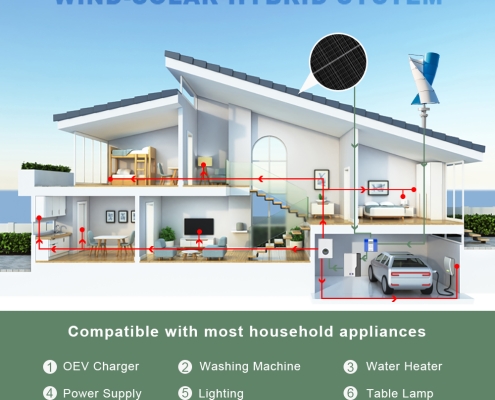

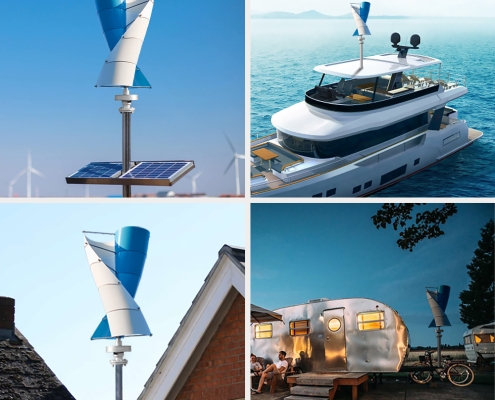

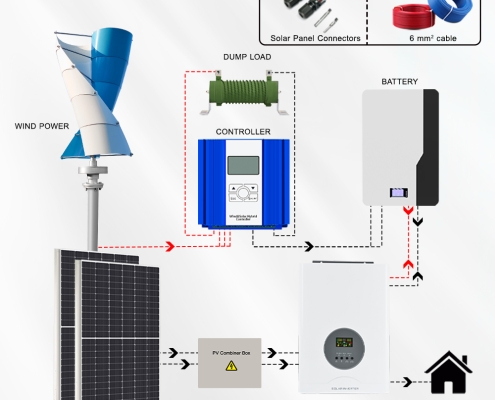

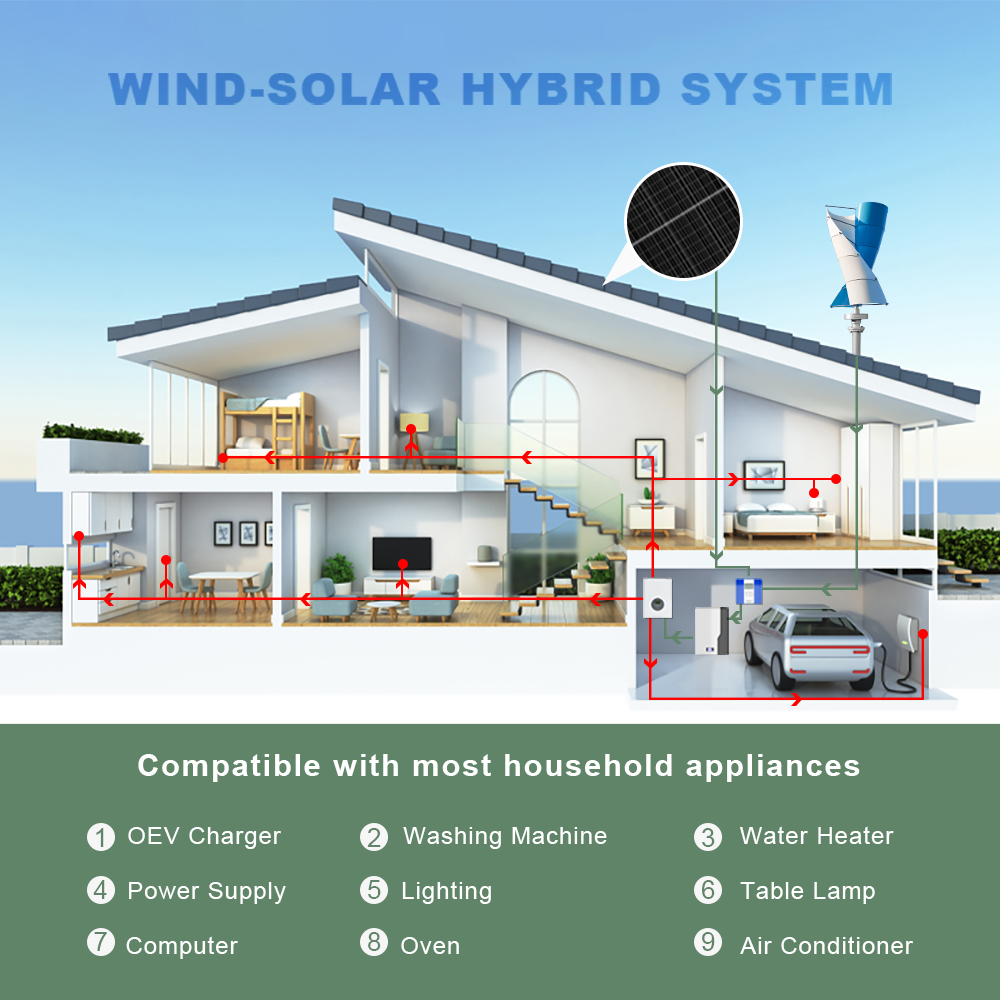

The SJ1000W is a compact, high-performance spiral vertical axis wind turbine designed for residential, off-grid, and hybrid wind-solar systems. With a rated power of 1000W and a maximum power of 1050W, it features a three-phase permanent magnet suspension maglev generator, durable aluminum alloy blades, and an eye-catching blue-white color scheme. Engineered for low noise, high efficiency, and reliable safety protection, it is ideal for home power backup, remote cabins, RVs, boats, and small renewable energy projects.

Key Features:

Rated Power: 1000W
Max Power: 1050W
Rated Voltage: 12V / 24V (AC)
Start Wind Speed: 2.0m/s
Cut-In Wind Speed: 3.5m/s
Rated Wind Speed: 11m/s
Safe Wind Speed: ≤45m/s
Rotor Diameter: 470mm
Blades Height: 840mm
Blades: 10 aluminum alloy blades (blue-white design)

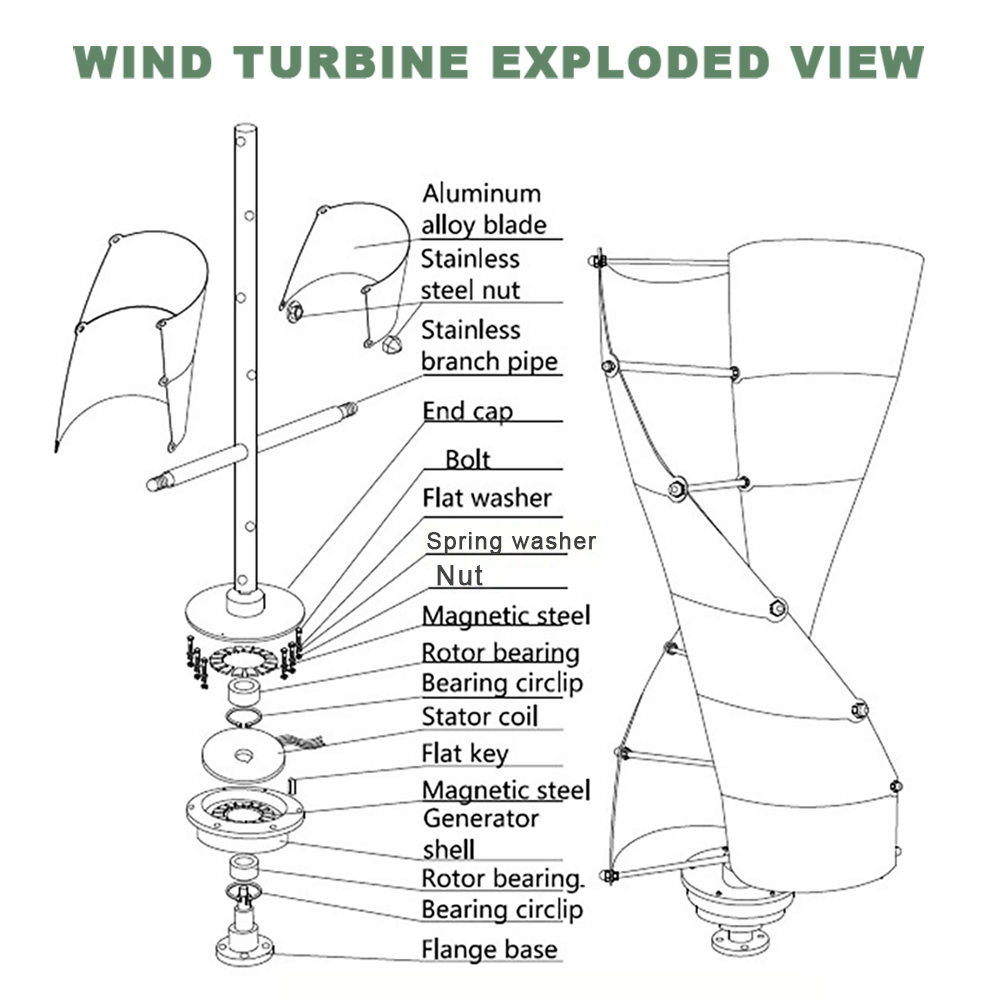

Generator: Three-phase permanent magnet suspension maglev generator
Control System: Electromagnet
Mount Height: 7~12m (recommended 9m)
Flange Diameter: DN25
Protection Grade: IP54
Overspeed Protection: Electromagnetic brake
Overload Protection: Electromagnetic brake + unloading unit
Operating Temperature: -25°C ~ +45°C
Humidity: ≤90%
Altitude: ≤4500m
Assembly Weight: 17kg
Packaging Size: 103×28×30cm

8 Overseas Warehouses | 20+ Countries Served | 24/7 Support

Get A Quote

Low Start-Up & Cut-In Wind Speed

Boasts a low start-up wind speed of 2.0m/s and a cut-in wind speed of 3.5m/s, allowing it to begin generating power even in gentle breezes. This maximizes energy capture in low-wind environments, making it suitable for a wide range of geographic locations.

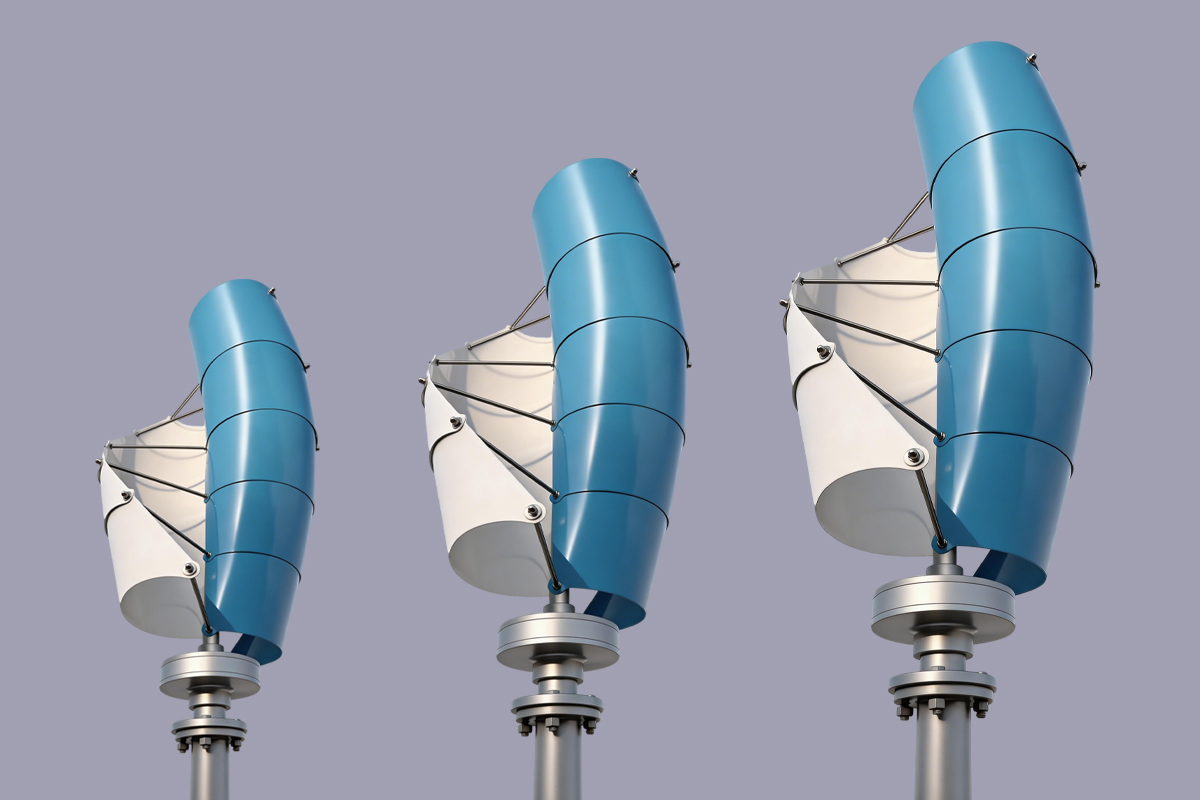

Spiral Vertical Axis Wind Turbine SJ 1000W Blue-White Blades (11)

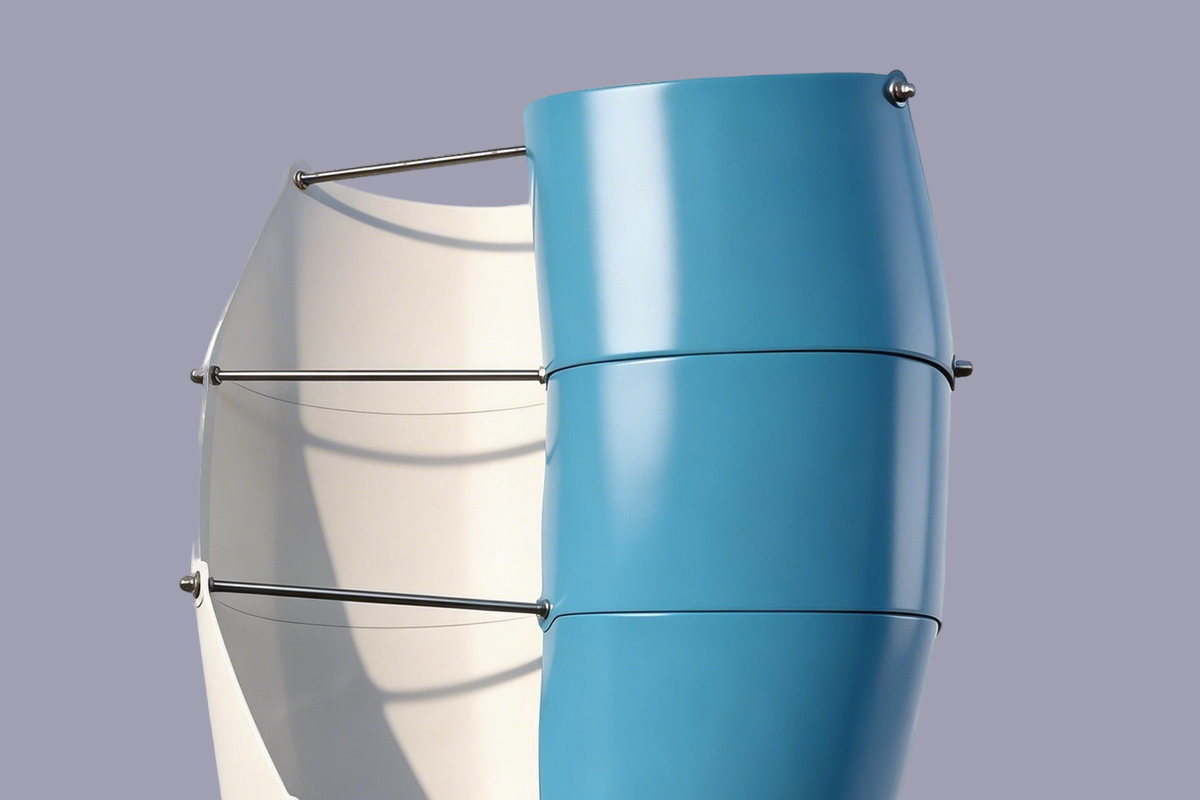

Spiral Vertical Axis Wind Turbine SJ 1000W Blue-White Blades (8)

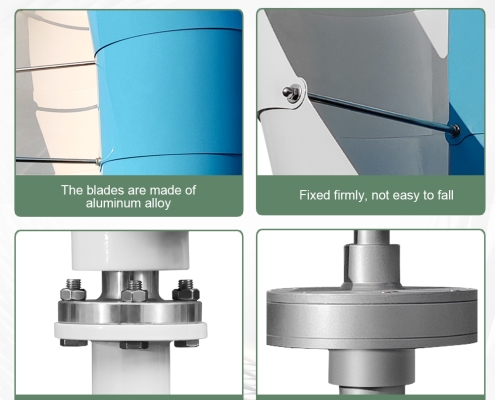

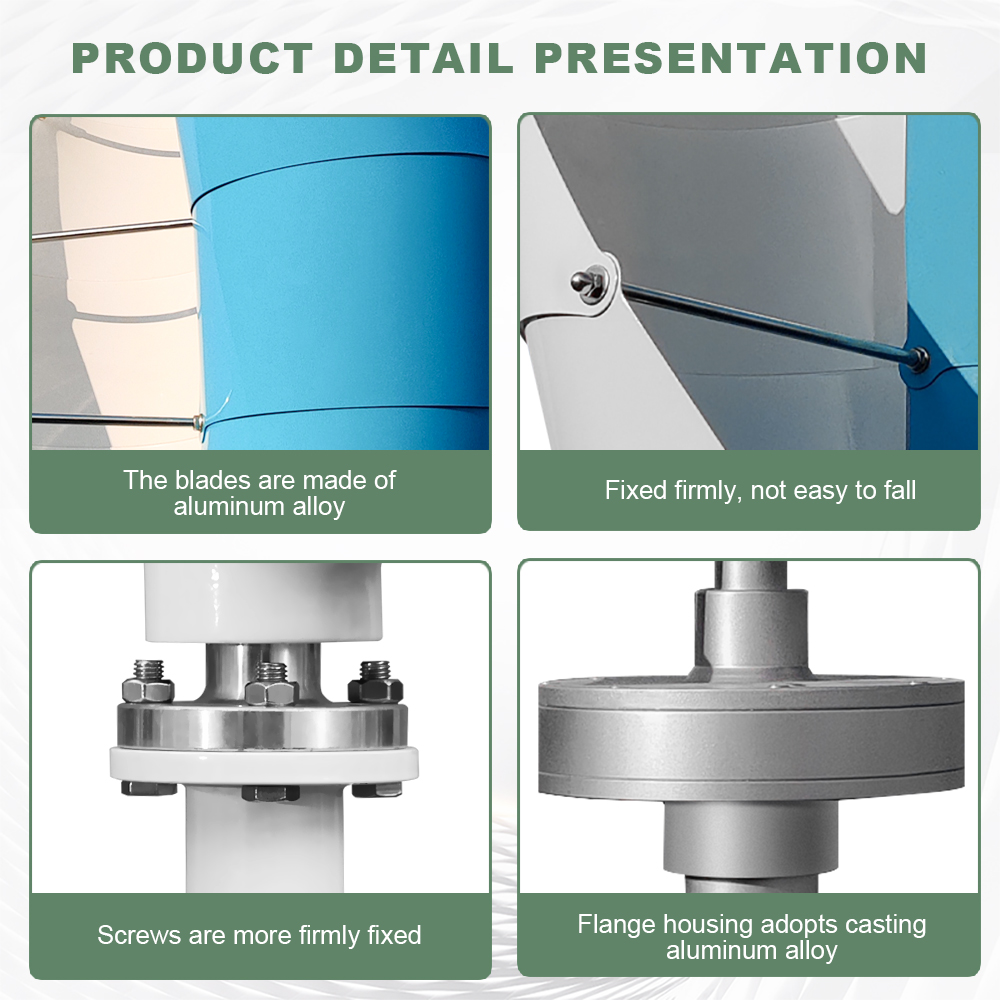

Durable Aluminum Alloy Blades with Blue-White Design

Blades: 3 aerodynamic blades made from high-quality glass fiber
Rotor Diameter: 0.6 m
Turbine Height: 1.0 m
Color Options: White, Green, Red

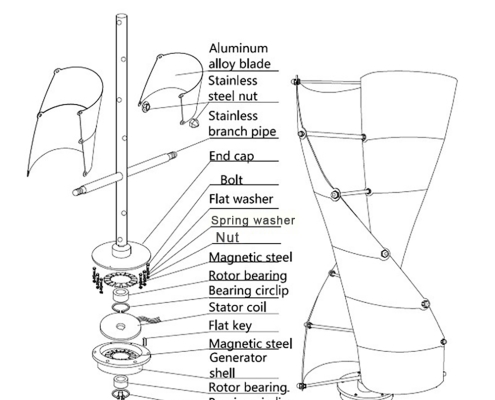

The Permanent Magnet Maglev Generator ensures higher efficiency and lower noise by reducing mechanical resistance — combining longevity with minimal maintenance.

Advanced Safety & Protection Systems

Integrates comprehensive safety features to protect the turbine in extreme conditions:
Electromagnetic Brake: Automatically activates to prevent overspeeding
Overspeed & Overload Protection: Dual protection via electromagnetic brake and unloading unit
IP54 Protection Grade: Dust-proof and water-resistant, suitable for outdoor use
≤45m/s Safe Wind Speed: Withstands strong winds for reliable operation in harsh climates

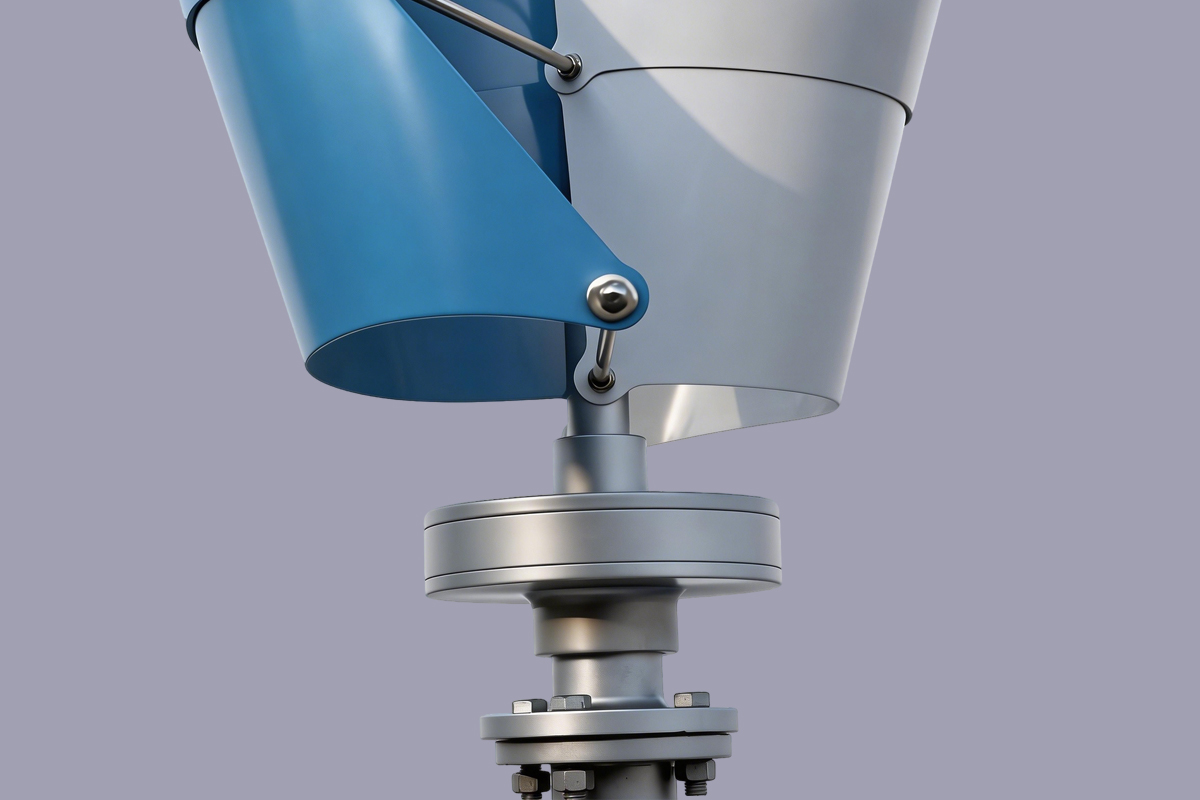

Spiral Vertical Axis Wind Turbine SJ 1000W Blue-White Blades (9)

Compact & Versatile Design

Rotor Diameter: 470mm | Blades Height: 840mm
Mount Height: Compatible with poles 7~12m tall (recommended 9m) for flexible installation
Low Maintenance: Durable construction with minimal upkeep required
Quiet Operation: Spiral vertical axis design produces low noise, suitable for residential and marine use

Ideal Applications

Off-grid homes and cabins
Communication towers and weather stations
Small commercial and agricultural setups
Remote monitoring and backup systems

What’s in the Box

For bulk orders, technical support, or installation guidance for the SJ1000W vertical wind turbine, contact our team. We provide tailored renewable energy solutions to meet your power needs, with reliable delivery and after-sales service.
