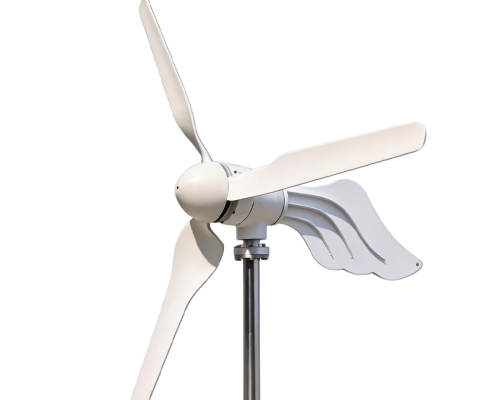

Horizontal Axis Wind Turbine Goldfish Tail Design SM2-2 1200W

Sleek, High-Efficiency Wind Power for Small-Scale Applications

The SM2-2-1200 is a high-performance horizontal axis wind turbine featuring a distinctive goldfish-tail design for enhanced wind direction sensing. With a rated power of 1200W and a maximum power of 1300W, it delivers reliable energy output for residential, off-grid, and wind-solar hybrid systems. The three nylon fiber blades and NdFeB permanent magnet generator ensure high efficiency and durability, while the integrated electromagnetic brake and unloading unit provide complete safety protection.

Core Performance:

Rated Power: 1200W
Max Power: 1300W
Rated Voltage: 12V / 24V / 48V (AC)
Start-Up Wind Speed: 4m/s
Rated Wind Speed: 12m/s

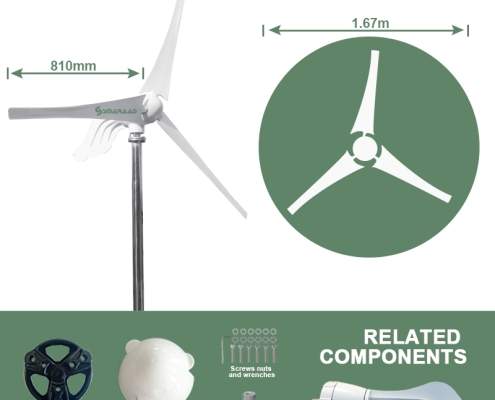

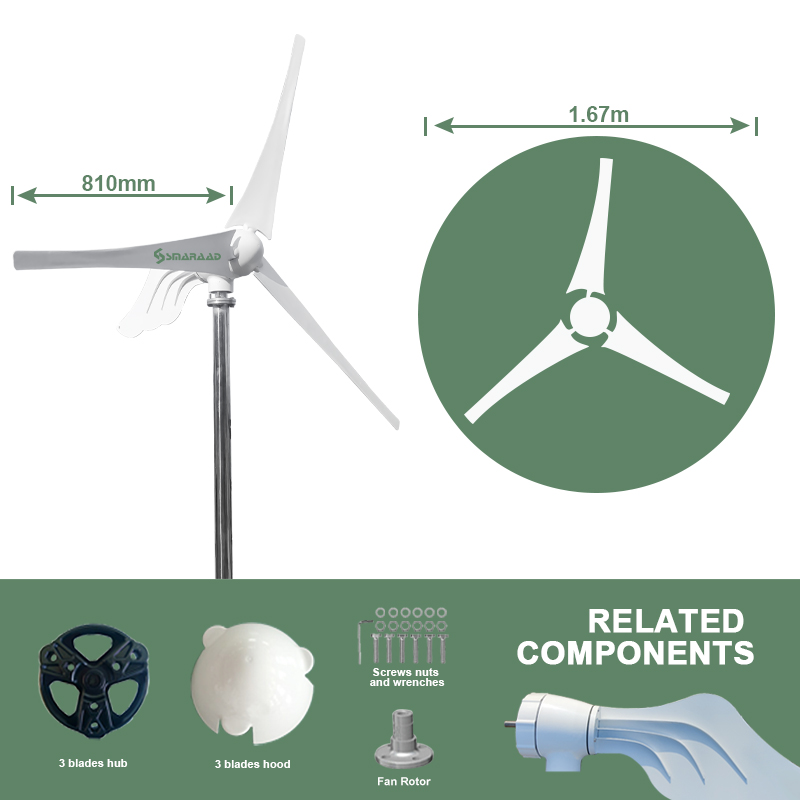

Rotor Diameter: 1.67m
Blade Length: 810mm
Blades: 3 nylon fiber blades

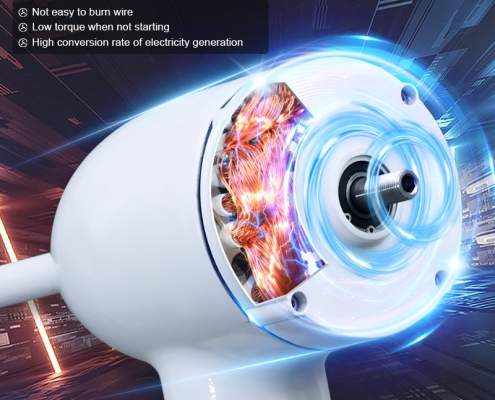

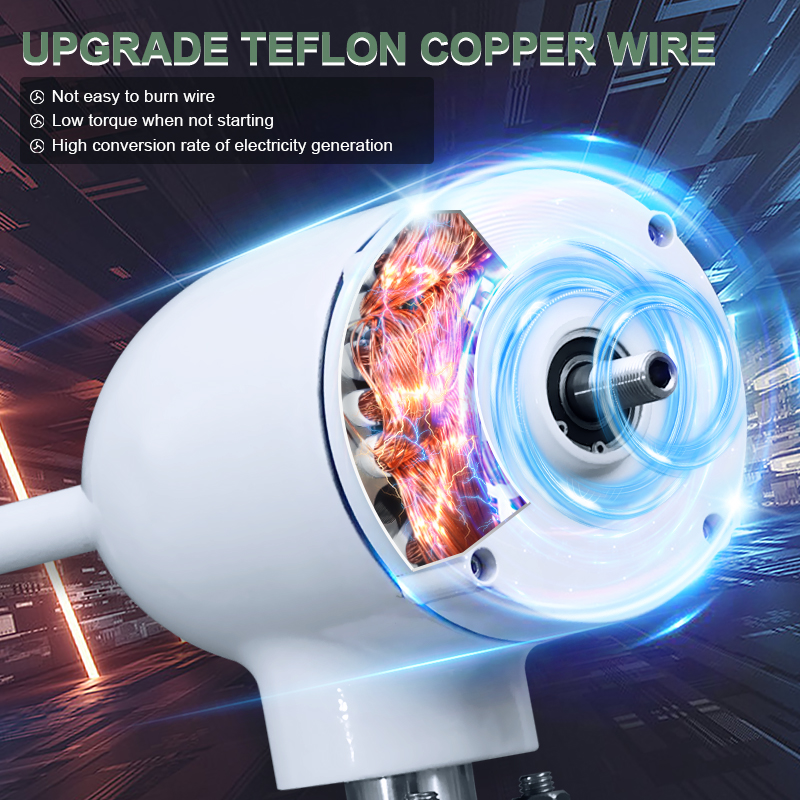

Generator Type: Three-phase permanent magnet AC synchronous generator
Magnet Material: NdFeB
Generator Case: Cast aluminum alloy
Control System: Electromagnet
Overspeed Protection: Electromagnetic brake
Overload Protection: Electromagnetic brake + unloading unit
Operating Temperature: -25°C ~ +45°C
Assembly Weight: 14kg

Get A Quote

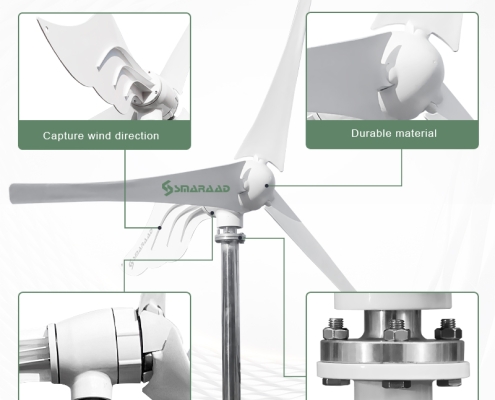

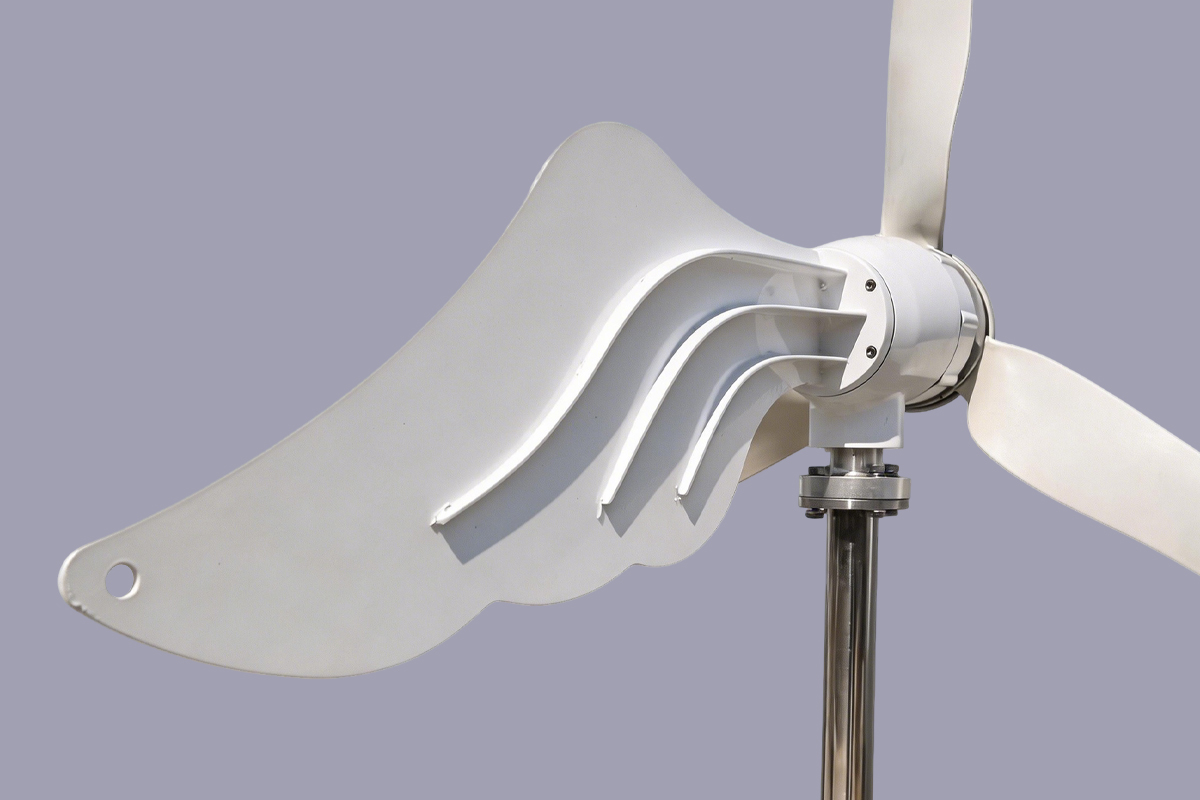

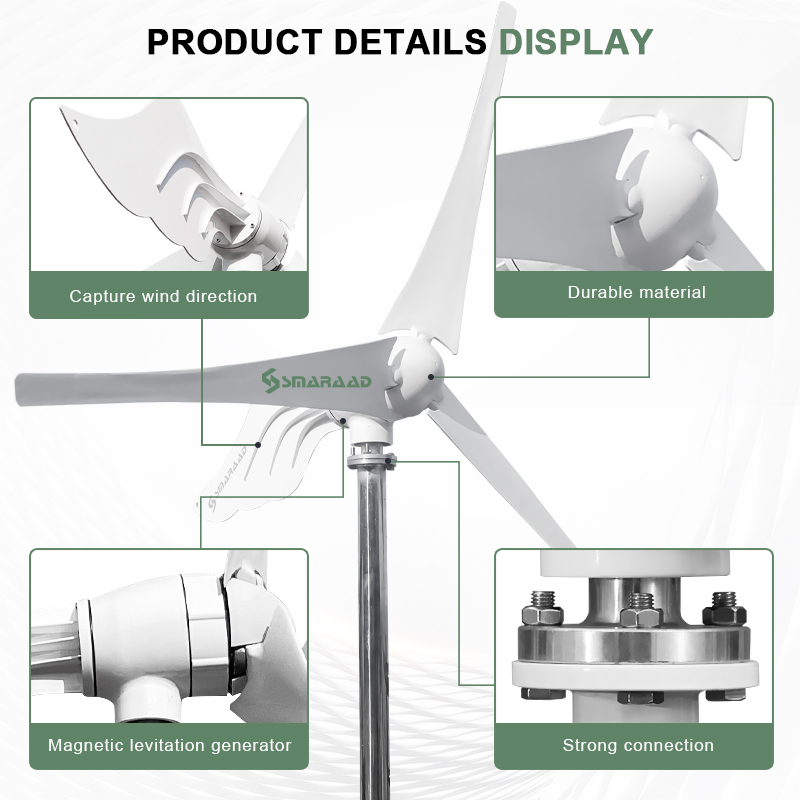

Goldfish Tail Design for Superior Wind Direction Sensing

The turbine’s unique goldfish-tail tail fin optimizes wind capture by efficiently sensing and aligning with wind direction, ensuring the rotor always faces the incoming wind for maximum energy harvesting and consistent performance.

Horizontal Axis Wind Turbine Goldfish Tail Design SM2-2 1200W (6)

Horizontal Axis Wind Turbine Goldfish Tail Design SM2-2 1200W (8)

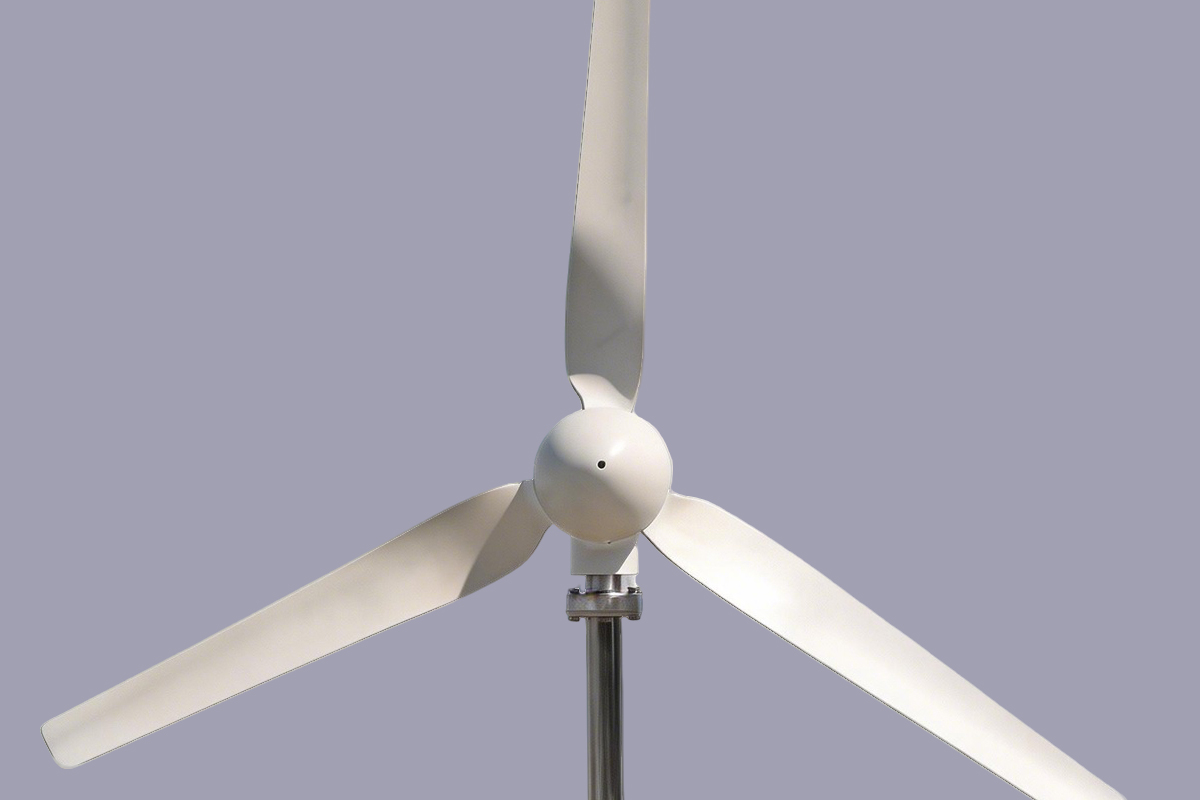

Durable Nylon Fiber Blades

Equipped with three high-strength nylon fiber blades, offering excellent durability, corrosion resistance, and weatherproof performance. The lightweight yet robust blades are designed for long-term use in harsh outdoor environments.

Advanced Safety & Protection Systems

Electromagnetic Brake: Automatically activates to prevent overspeeding in high winds
Dual Overload Protection: Combines electromagnetic brake and unloading unit to protect the turbine and connected systems
Rugged Cast Aluminum Alloy Generator Case: Provides durability and effective heat dissipation

Built to Last in Any Environment

Mounting Height: Adjustable between 2m to 12m
Operating Temperature: -25°C to +45°C
Humidity Tolerance: ≤ 90%
Altitude Capability: ≤ 4500m
Ingress Protection: IP54-rated for dust and water resistance

Whether you’re on a mountain, by the coast, or in an open field — the M2-2 1200W is ready to perform.

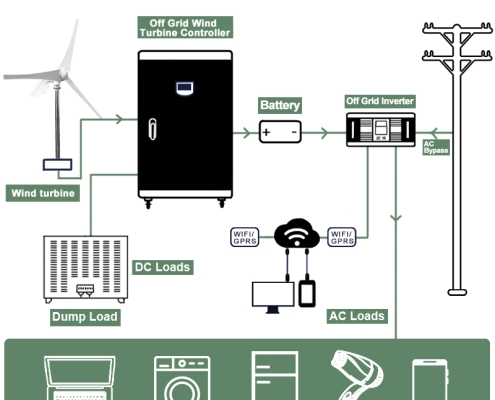

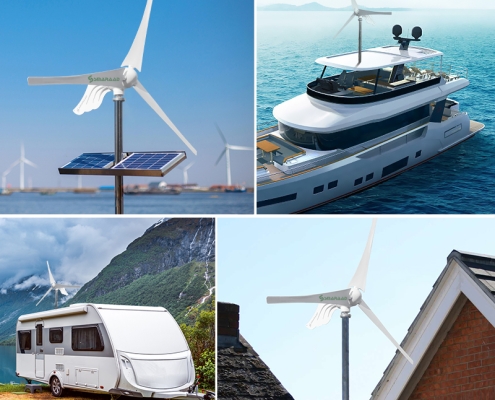

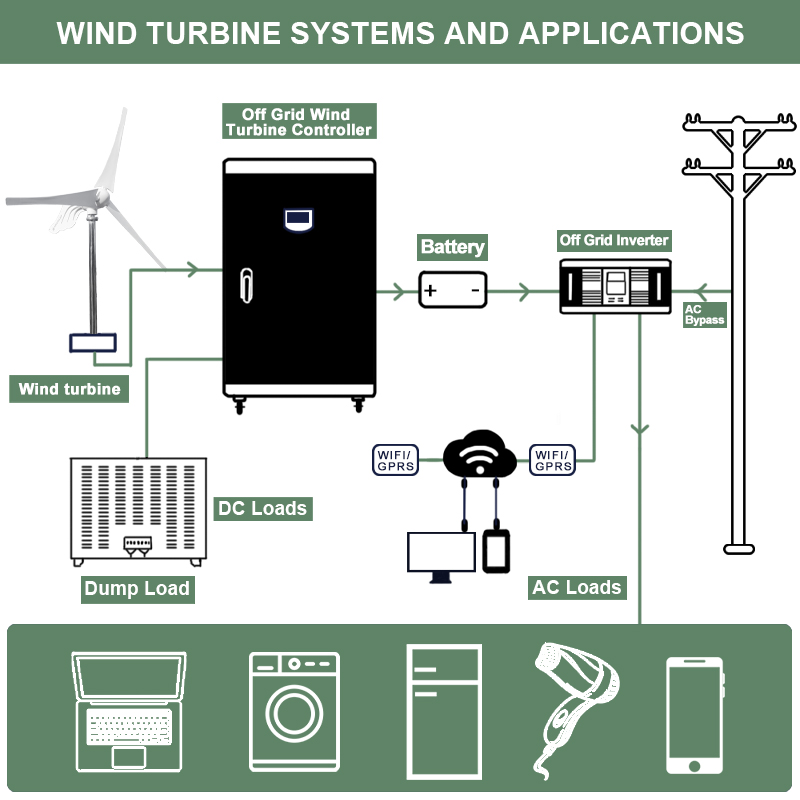

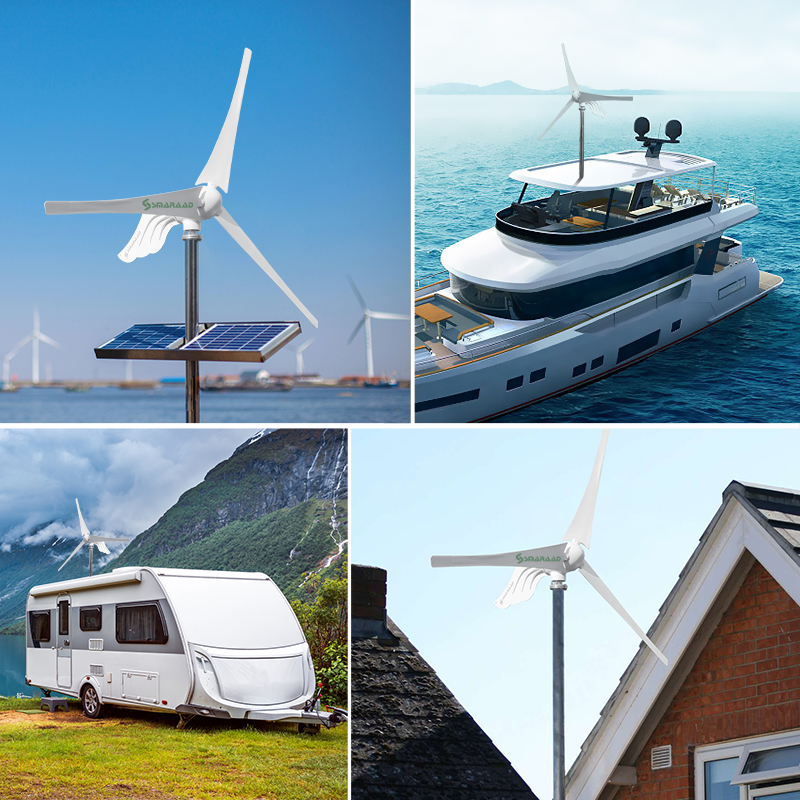

Ideal Applications

Residential off-grid backup power (lights, small appliances, phone chargers)
RV/camping mobile energy systems
Remote outdoor lighting (garden lights, security cameras)
Small farm/ranch auxiliary power (fence chargers, portable water pumps)

Contact Us

For bulk orders, technical support, or installation guidance for the SM2-2-1200 wind turbine, contact our team. We provide tailored renewable energy solutions to meet your power needs, with reliable delivery and after-sales service.
