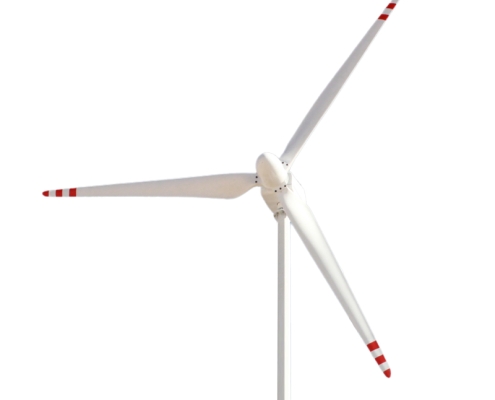

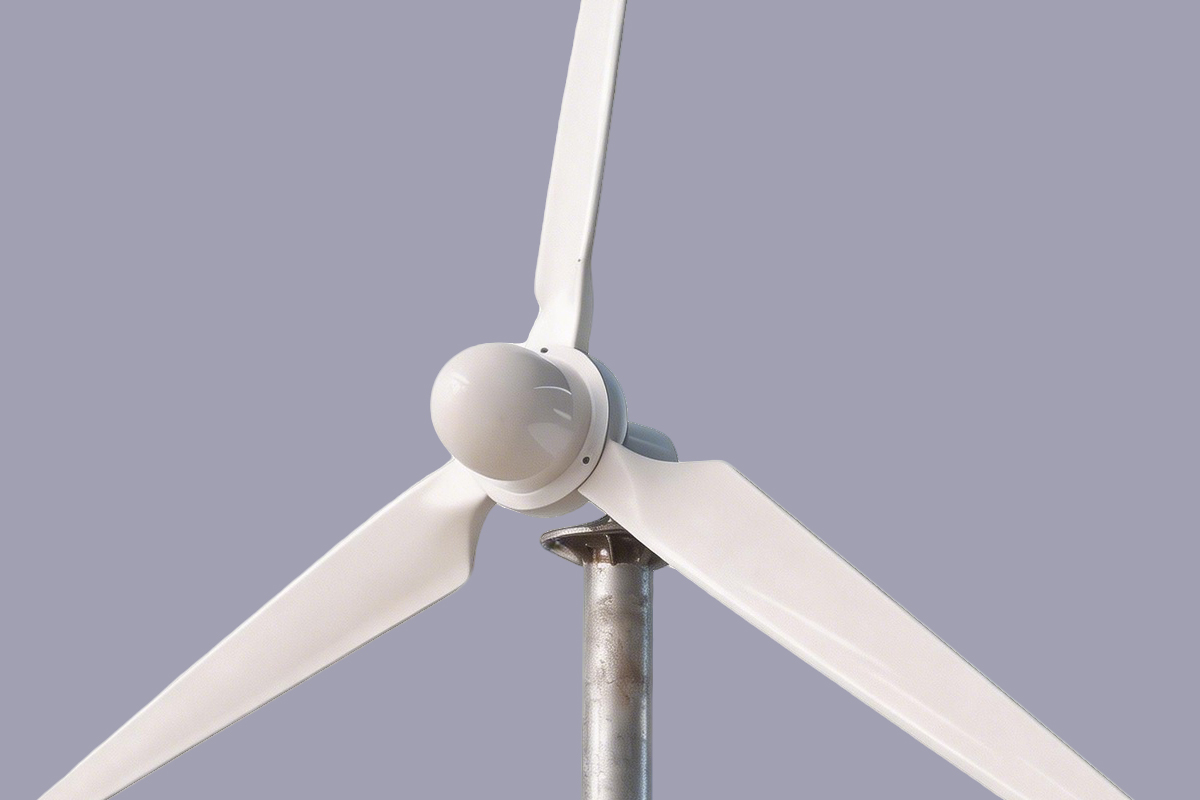

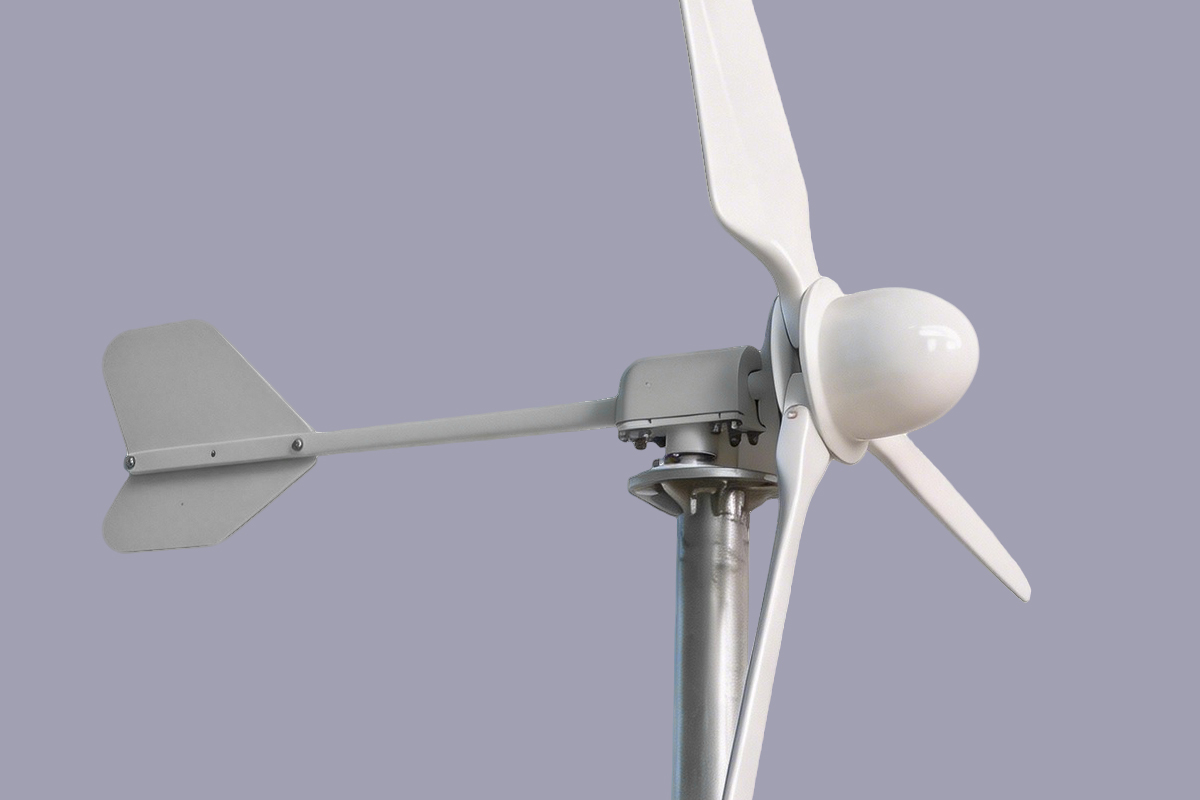

Horizontal Axis Wind Turbine Commercial-Grade SK 2KW-30KW

Sleek, High-Efficiency Commercial-Grade Wind Energy Solutions

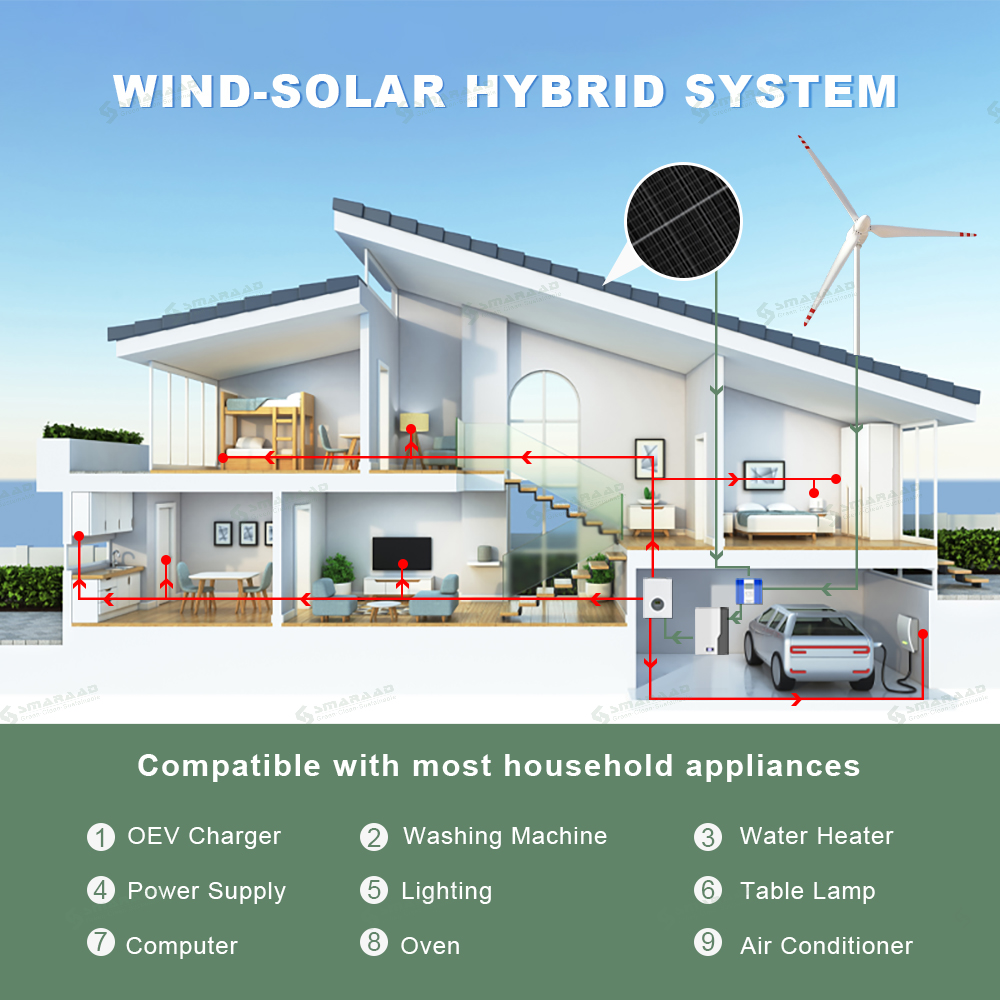

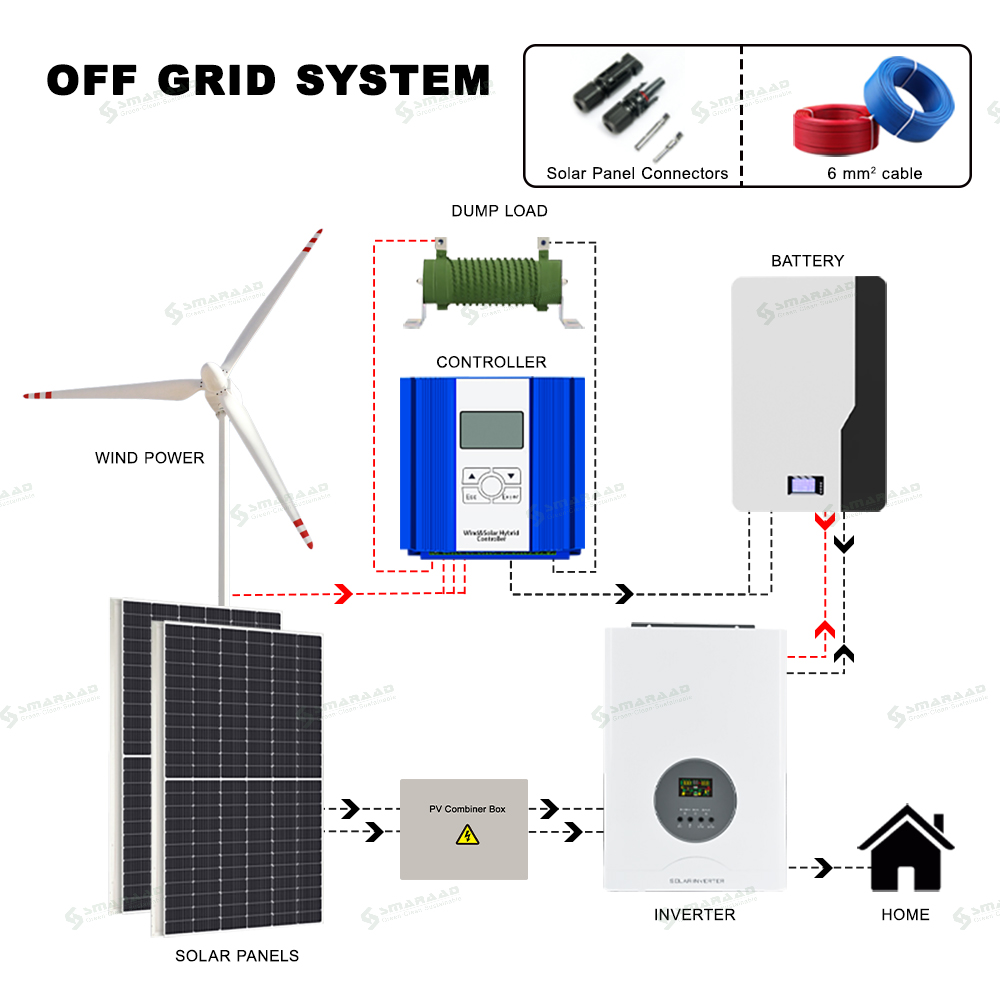

The SK Series Horizontal Axis Wind Turbine is a high-efficiency, durable wind power system designed for residential, commercial, and small-scale industrial applications. With rated power options from 2kW to 30kW, it delivers reliable, cost-effective clean energy for off-grid homes, remote facilities, telecom towers, and wind-solar hybrid systems. Built with premium components and robust safety features, the SK Series is engineered for long-term performance in diverse environments.

Comprehensive Power Range (2kW–30kW)

  • Model Rated Power Max Power Wheel Diameter Blade Length Rated Voltage Start-Up Wind Speed Rated Wind Speed Assembly Weight
    SK-2000 2000W 2200W 2.8m 1.4m 48V-96V 3m/s 10m/s 60kg
    SK-3000 3000W 3100W 3.2m 1.6m 48V-220V 3m/s 10m/s 66kg
    SK-4000 4000W 4200W 3.9m 1.95m 96V-380V 4m/s 12m/s 95kg
    SK-5000 5000W 5800W 4.8m 2.35m 96V-380V 4m/s 12m/s 166kg
    SK-8K 8000W 9000W 5.3m 2.6m 96V-380V 4m/s 15m/s 310kg
    SK-10K 10000W 11000W 5.6m 2.78m 220V-600V 4m/s 15m/s 360kg
    SK-15K 15000W 16000W 6.3m 3.1m 220V-600V 4m/s 15m/s 420kg
    SK-20K 20000W 21000W 7.7m 3.8m 220V-600V 4m/s 15m/s —
    SK-30K 30000W 32000W 9.1m 4.5m 220V-600V 4m/s 15m/s —
