Overview

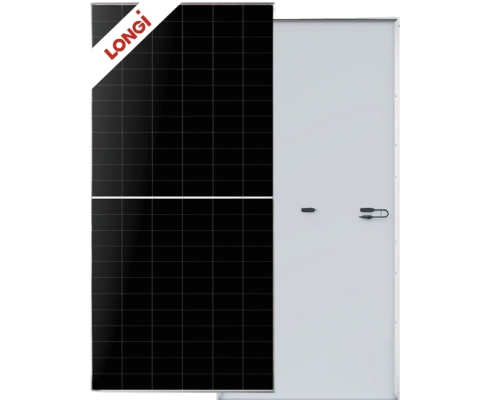

As an authorized distributor of LONGi, SMARAAD proudly offers the LONGi Hi‑MO X10 Scientist LR7‑72HVH monofacial solar panel. Built with N‑type HPBC 2.0 technology, this module delivers 640W–670W output and up to 24.80% conversion efficiency. It features a grid‑free clean appearance, A+ anti‑shading performance, and anti‑local overheating protection, making it ideal for residential, commercial, industrial, and utility‑scale solar projects. Backed by 15‑year product warranty and 30‑year linear power warranty, it ensures stable, high‑yield clean energy for decades隆基
| Item | Specification |
|---|---|
| Cell Type | N‑type HPBC 2.0, monofacial |
| Cell Configuration | 144 cells (6×24) |
| Glass | 3.2mm coated tempered single glass |
| Frame | Anodized aluminum alloy |
| Junction Box | IP68, split type, 3 bypass diodes |
| Cable | 4mm², length customizable |
| Dimensions | 2382 × 1134 × 30mm |
| Weight | 28.5kg |
| Power Tolerance | 0~+3% |
| Max System Voltage | DC1500V (IEC) |
| Fuse Rating | 25A |
| NOCT | 45±2℃ |
| Operating Temperature | -40℃ ~ +85℃ |
| Safety Class | Class II |
| Fire Rating | IEC Class C |
| Front Load | 5400Pa |
| Rear Load | 2400Pa |
| Hail Resistance | 25mm ⌀ @ 23m/s |
