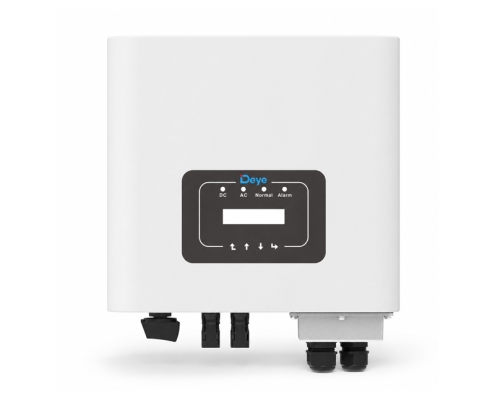

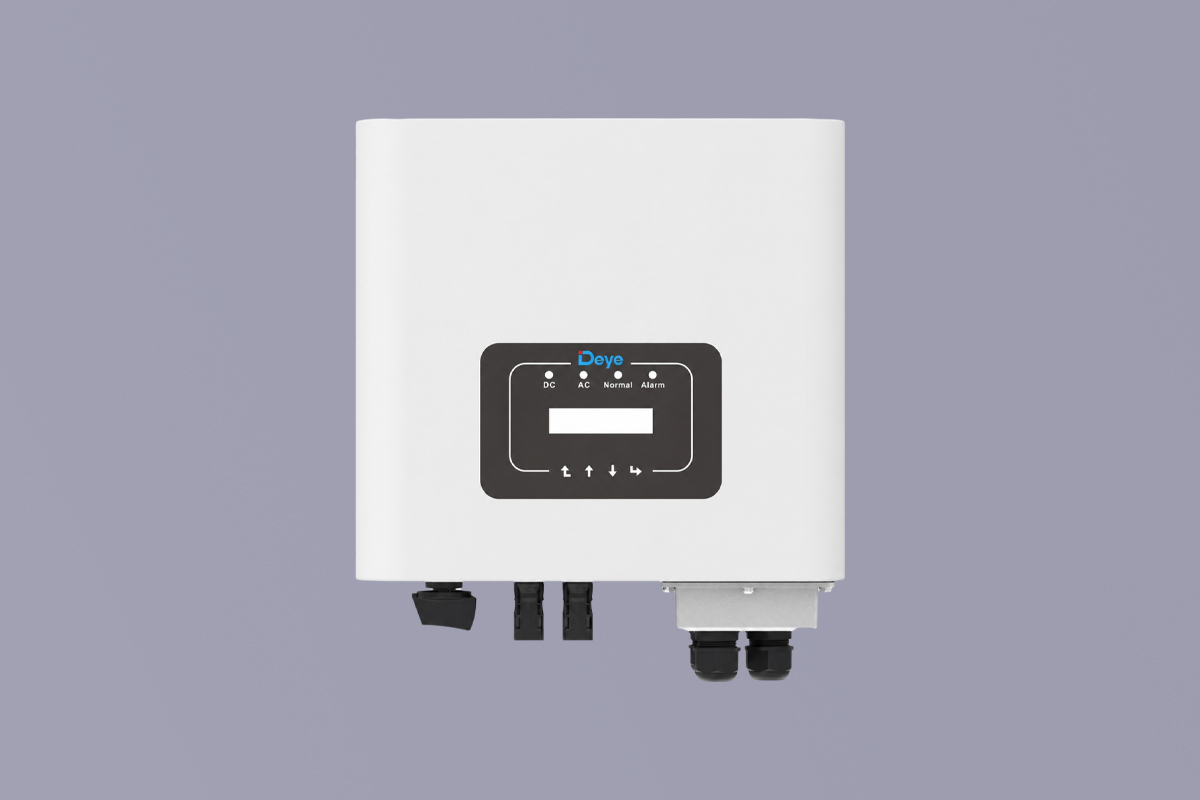

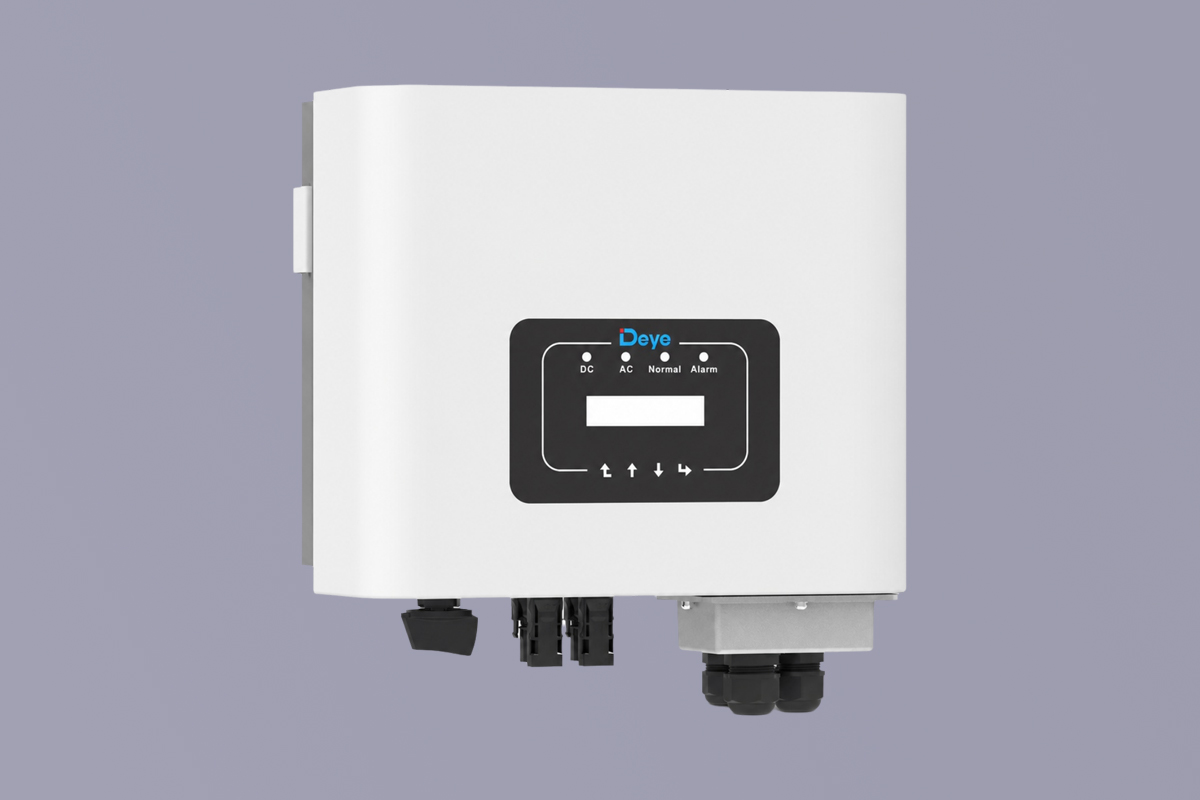

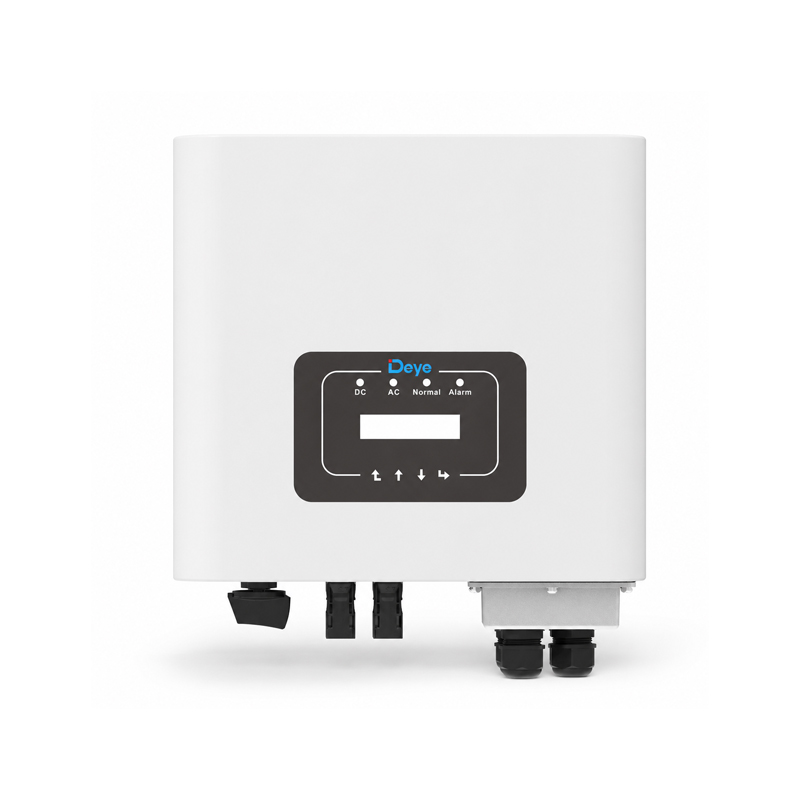

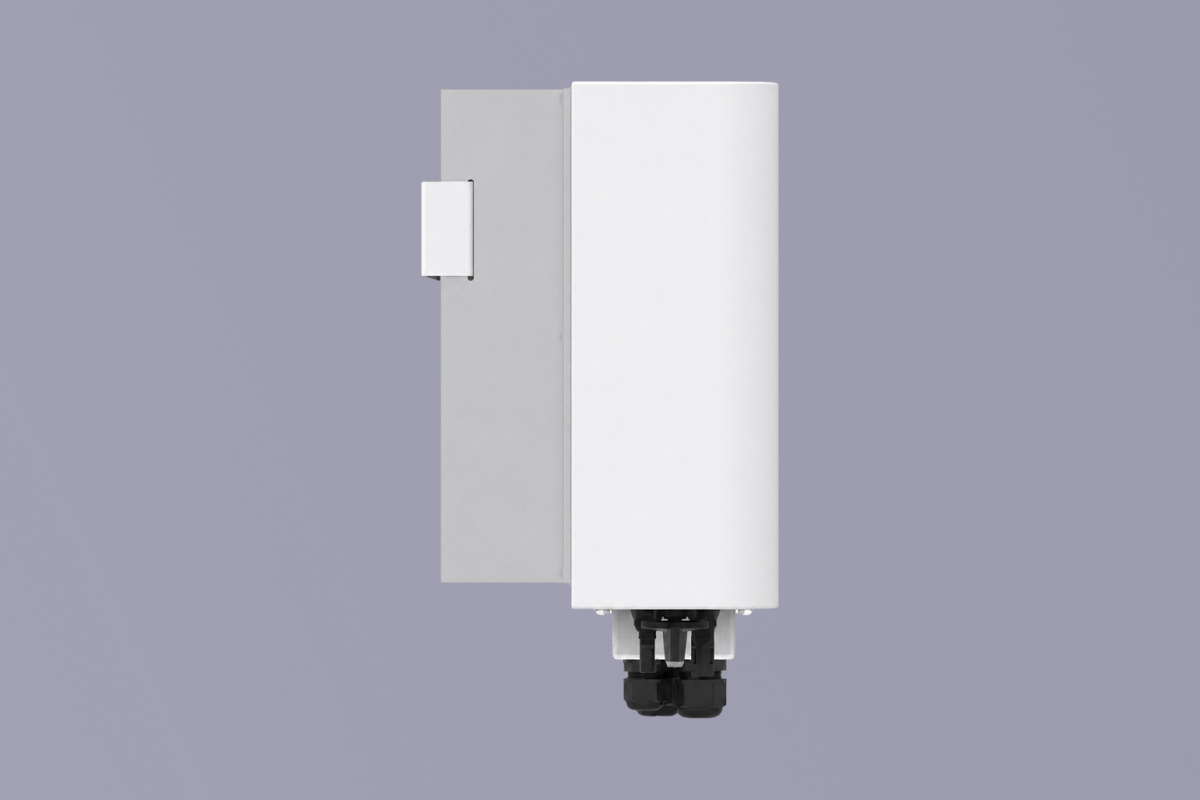

DEYE SUN-3.6/4/4.2/4.6/5/5.2/6K-G05P1-EU-AM2 Single-Phase String On-Grid Inverter

Authorized Distributor: SMARAAD | Residential Energy Storage Hybrid Inverter

Overview

As an official authorized distributor of DEYE, SMARAAD supplies the SUN-3/3.6/5/6K-SG03LP1-EU single-phase hybrid storage inverter. This all-in-one hybrid inverter supports on-grid, off-grid, and AC coupling retrofit solutions, compatible with lead-acid and lithium batteries. It allows up to 16 units parallel connection, supports diesel generator charging, and features an IP65 colorful touch LCD for easy operation. Designed for residential energy storage, peak shaving and emergency backup power.

Dual MPPT trackers, max conversion efficiency up to 97.5%
Ultra-low startup voltage 80V, wide MPPT voltage range
Frequency droop control, compatible with diesel generators
Optional intelligent string monitoring & anti-PID function
Extra-wide AC output voltage range
Support zero export & VSG operation mode
IP65 dustproof & waterproof cabinet, natural silent cooling
Complete electrical protection, Type II surge protection on DC & AC sides
LED indicator for running status, lightweight compact design
5-year standard warranty, extended warranty available

Get A Quote

Basic Information

Item	Parameter
Model Series	SUN-3.6K / 4K / 4.2K / 4.6K / 5K / 5.2K / 6K-G05P1-EU-AM2
Product Type	Single-phase non-isolated string on-grid inverter
Installation	Wall-mounted
Protection Grade	IP65
Cooling Mode	Natural cooling
Noise Level	≤35dB
Display	LED indicator light
Operating Temp	-25℃ ~ +60℃, power derating above 45℃
Humidity Range	0% ~ 100% non-condensing
Max Altitude	3000m
Dimension (W×H×D)	305 × 280 × 180mm (excluding connectors & bracket)
Net Weight	7.7kg
Standard Warranty	5 years, extendable
Certification	IEC 61727, IEC 62116, EN 50549, CE, EMC standard compliant

DC PV Input Parameters

Item	3.6K	4K	4.2K	4.6K	5K	5.2K	6K
Max DC Input Power	4.7kW	5.2kW	5.5kW	6kW	6.5kW	6.8kW	7.8kW
Max PV Input Voltage	550V	550V	550V	550V	550V	550V	550V
Startup Voltage	80V	80V	80V	80V	80V	80V	80V
MPPT Operating Range	70~500V	70~500V	70~500V	70~500V	70~500V	70~500V	70~500V
Rated PV Voltage	360V	360V	360V	360V	360V	360V	360V
MPPT Tracker Quantity	2	2	2	2	2	2	2
Strings per MPPT	1+1	1+1	1+1	1+1	1+1	1+1	1+1

AC Output Parameters

Item	3.6K	4K	4.2K	4.6K	5K	5.2K	6K
Rated AC Apparent Power	3.6kVA	4kVA	4.2kVA	4.6kVA	5kVA	5.2kVA	6kVA
Max AC Apparent Power	3.96kVA	4.4kVA	4.62kVA	5.06kVA	5.5kVA	5.72kVA	6.6kVA
Rated Output Current	15.7A	17.4A	18.3A	20A	21.8A	22.7A	26.1A
Max Output Current	17.3A	19.1A	20.1A	22A	24A	25A	28.7A
Grid Connection	Single-phase L+N+PE
Rated Voltage Range	0.85Un ~ 1.1Un
Power Factor Range	0.8 lagging ~ 0.8 leading
THDi (Rated Load)	＜3%
DC Injection Component	＜0.5% In

Built-In Protection Functions

AC overcurrent/overvoltage/short-circuit protection, overheat protection, insulation resistance detection, DC component monitoring, anti-islanding protection, built-in DC switch, residual current detection, optional AFCI arc fault protection; Type II lightning surge protection on DC & AC sides.

Ideal Applications

Household rooftop grid-connected photovoltaic power systems
Small commercial distributed PV projects
Diesel-solar hybrid microgrid power generation
Zero-export self-consumption solar systems
Renovation & expansion of existing photovoltaic power stations

Contact Us

For quotations, technical drawings, bulk orders and technical support of DEYE SUN-3.6/4/4.2/4.6/5/5.2/6K-G05P1-EU-AM2 inverters, please contact SMARAAD sales team. We provide customized residential grid-tied PV solutions with stable delivery and complete after-sales service.
