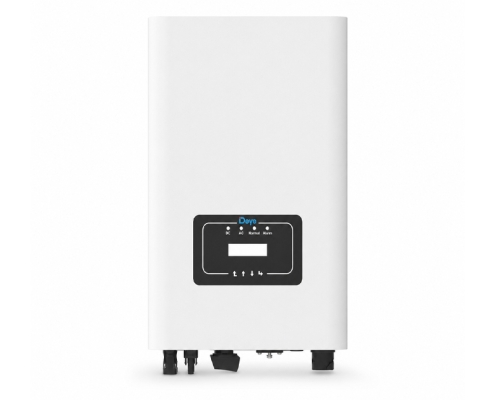

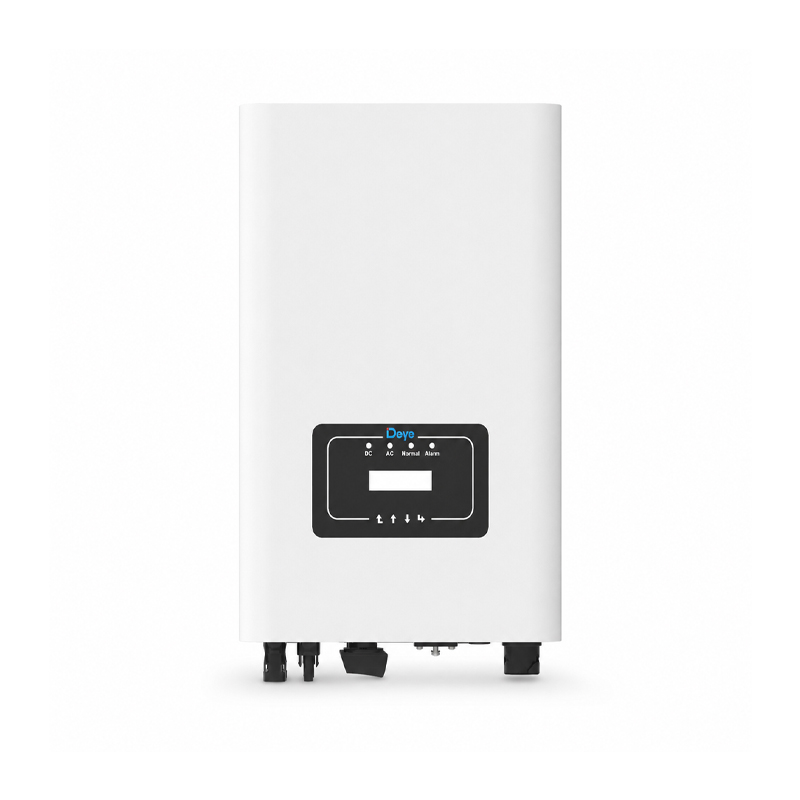

DEYE SUN-3456789101215K-G06P3-EU-AM2-P1 Three-Phase String On-Grid Inverter

Authorized Distributor: SMARAAD

Overview

As an official authorized distributor of DEYE, SMARAAD supplies SUN 3–15kW three-phase string grid-tied inverters. Equipped with dual MPPT trackers and up to 98.5% peak efficiency, this series supports diesel generator compatibility, optional string monitoring and anti-PID functions. Designed for residential and small commercial distributed PV systems.

2 independent MPPT trackers, max efficiency up to 98.5%
Frequency droop control for diesel generator hybrid systems
Optional intelligent string monitoring & anti-PID function
Ultra-wide AC output voltage range
Natural silent cooling, IP65 outdoor enclosure
Complete multi-layer electrical protection
Type II surge protection for DC & AC sides
LED operation indicator
5-year standard warranty, extendable

Get A Quote

Basic Information

Item	Parameter
Model Series	SUN-3K / 4K / 5K / 6K / 7K / 8K / 9K / 10K / 12K / 15K-G06P3-EU-AM2-P1
Product Type	Three-phase non-isolated string on-grid inverter
Installation	Wall-mounted
Protection Grade	IP65
Cooling Mode	Natural cooling
Display	LED indicator lights
Operating Temp	-25℃ ~ +60℃, power derating above 45℃
Humidity	0–100% non-condensing
Max Altitude	3000m
Standard Warranty	5 years, extendable
Certifications	IEC 61727, IEC 62116, EN 50549, CE, full EMC compliance

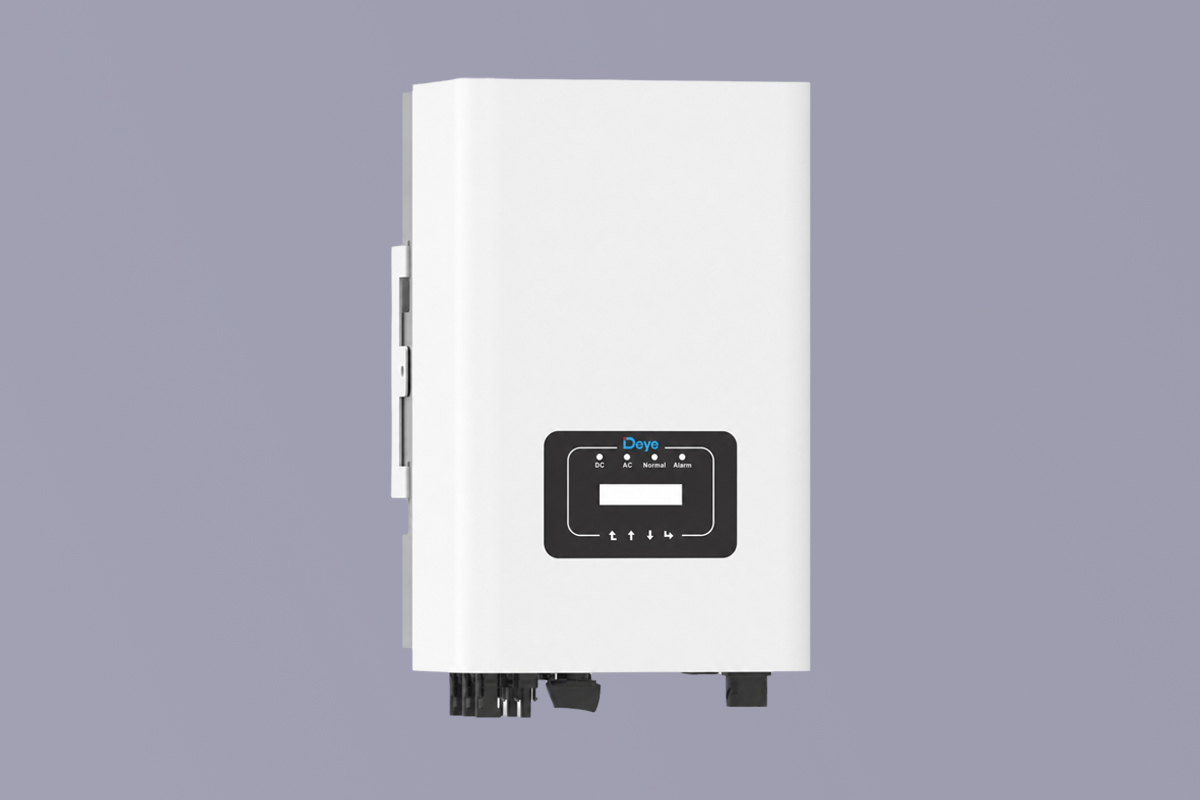

DEYE SUN-3456789101215K-G06P3-EU-AM2-P1 Three-Phase String On-Grid Inverter (2)

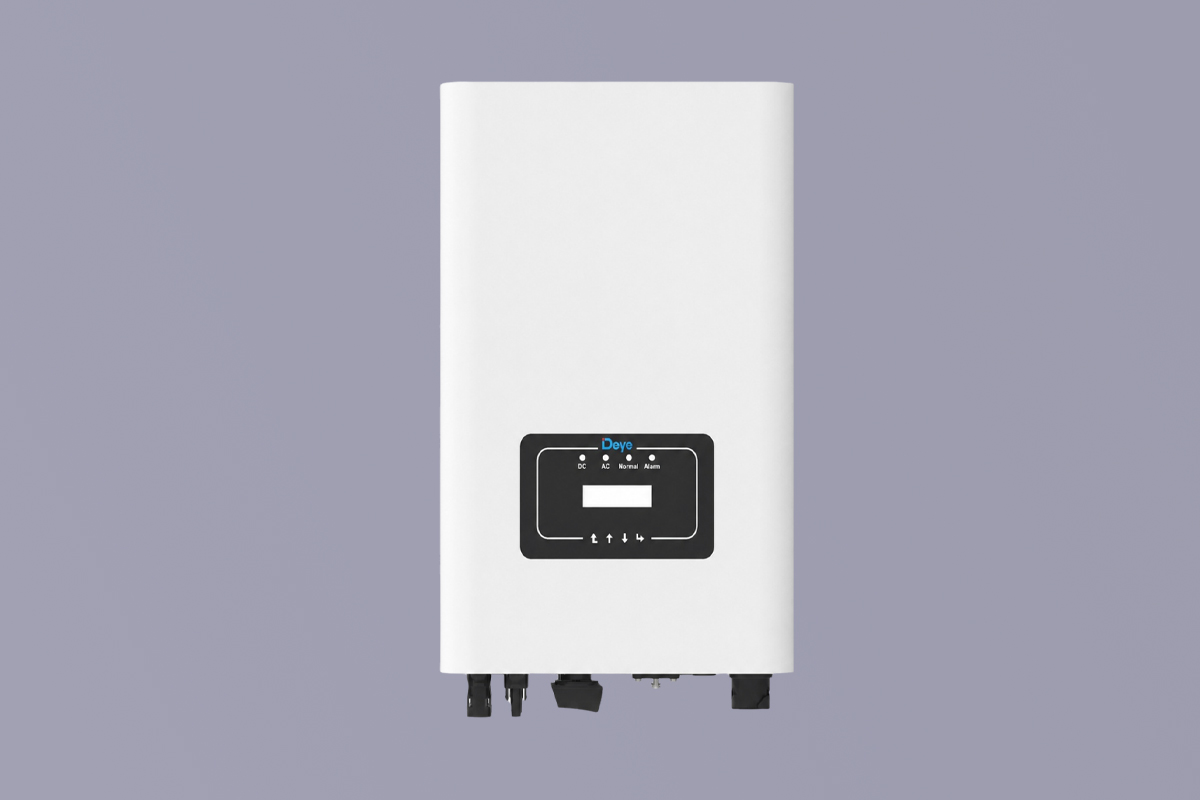

DEYE SUN-3456789101215K-G06P3-EU-AM2-P1 Three-Phase String On-Grid Inverter (3)

DC PV Input Parameters

Item	SUN-3K	SUN-6K	SUN-10K	SUN-15K
Max DC Input Power	3900W	7800W	13000W	19500W
Max PV Voltage	1000V	1000V	1000V	1000V
Startup Voltage	180V	180V	180V	180V
MPPT Operating Range	200–850V	200–850V	200–850V	200–850V
MPPT Quantity	2	2	2	2
Strings per MPPT	2+2	2+2	2+2	2+2

AC Output Parameters

Item	SUN-3K	SUN-6K	SUN-10K	SUN-15K
Rated AC Apparent Power	3kVA	6kVA	10kVA	15kVA
Max AC Apparent Power	3.3kVA	6.6kVA	11kVA	16.5kVA
Rated Output Current	4.3A	8.7A	14.4A	21.7A
Max Output Current	4.7A	9.5A	15.8A	23.9A
Grid Connection	3L/N/PE, 400V 50Hz
Output Voltage Range	0.85Un ~ 1.1Un
Power Factor	0.8 lagging ~ 0.8 leading
THDi (Rated Load)	＜3%
DC Injection Component	＜0.5% In

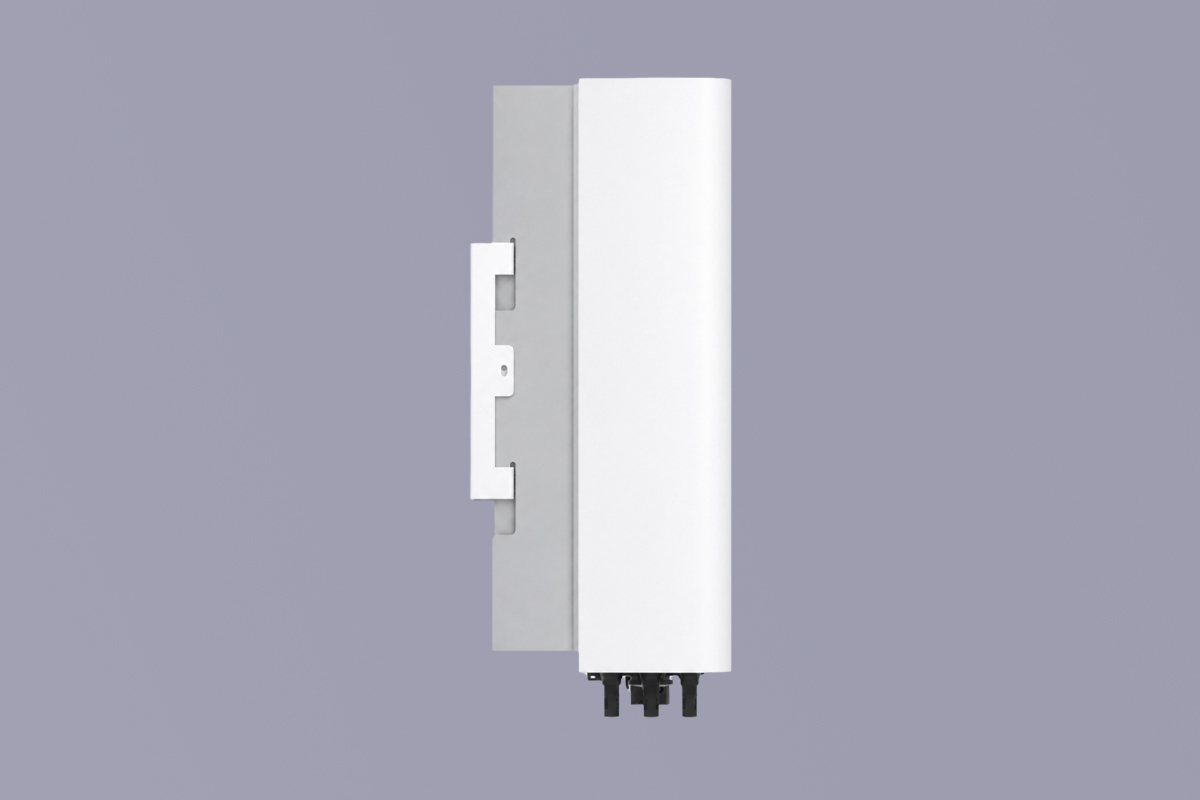

DEYE SUN-3456789101215K-G06P3-EU-AM2-P1 Three-Phase String On-Grid Inverter (4)

Integrated Protection List

DC reverse polarity protection, AC overcurrent/overvoltage/short-circuit protection, overheat protection, insulation impedance detection, DC component monitoring, anti-islanding protection, built-in DC switch, residual current detection, optional AFCI arc fault protection; DC & AC Type II lightning surge protection.

Ideal Applications

Three-phase household rooftop PV power stations
Small commercial distributed solar systems
Diesel-solar hybrid microgrid power generation
PV system renovation & expansion projects
Zero-export self-consumption photovoltaic systems

Contact Us

For quotations, technical drawings, bulk orders and technical support of SUN-3~15K-G06P3 series inverters, contact SMARAAD sales team. We provide customized three-phase PV solutions with stable delivery.
