DEYE SUN-M60/80/100G4-EU-Q0 Micro Inverter

Authorized Distributor: SMARAAD

Overview

As official authorized DEYE distributor, SMARAAD supplies SUN-M series micro inverters (600W/800W/1000W). This micro inverter features dual independent MPPT, module-level monitoring, built-in WiFi and IP67 waterproof housing. Optimized for balcony plug-and-play PV systems, it meets European DIN safety standards with ultra-fast AC shutdown for maximum household safety.

Dual MPPT trackers & module-level real-time monitoring
IP67 dust & waterproof outdoor enclosure
Integrated WiFi for cloud remote monitoring
<100ms rapid AC discharge, compliant with DIN safety standards
Complete NS protection with self-diagnosis function
External relay design, lower operating temperature & long service life
Isolated topology, natural silent cooling
10-year standard factory warranty

Get A Quote

Basic Information

Item	Specification
Model Series	SUN-M60G4-EU-Q0 / SUN-M80G4-EU-Q0 / SUN-M100G4-EU-Q0
Topology	Isolated micro inverter
Protection Grade	IP67
Cooling Mode	Natural cooling
Communication	Built-in WiFi (Deye Cloud)
Operating Temp	-40℃ ~ +65℃, power derating above 45℃
Humidity	0–100% non-condensing
Dimension (W×H×D)	280.5 × 190 × 40 mm (excluding connectors)
Net Weight	3 kg
Standard Warranty	10 Years
Certifications	DIN VDE, IEC 62109, VDE-AR-N 4105, CE & full EMC compliance

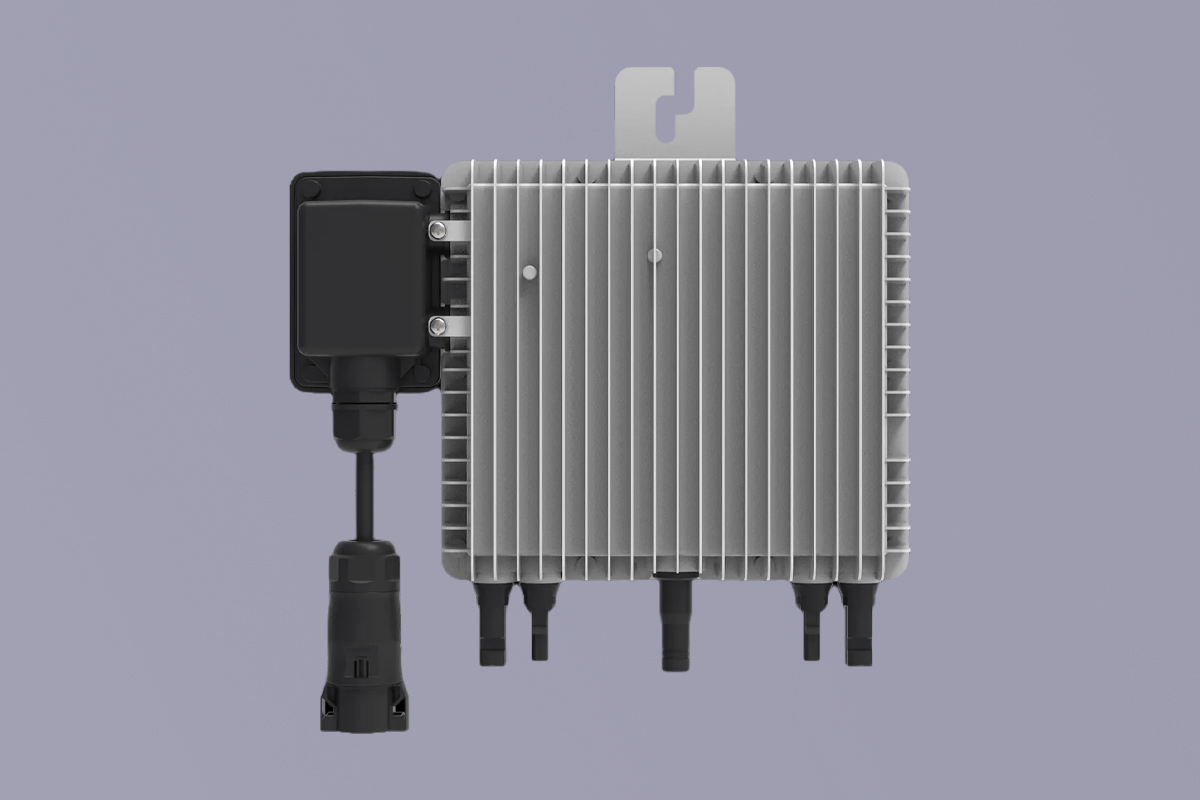

DEYE SUN-M6080100G4-EU-Q0 Micro Inverter (3)

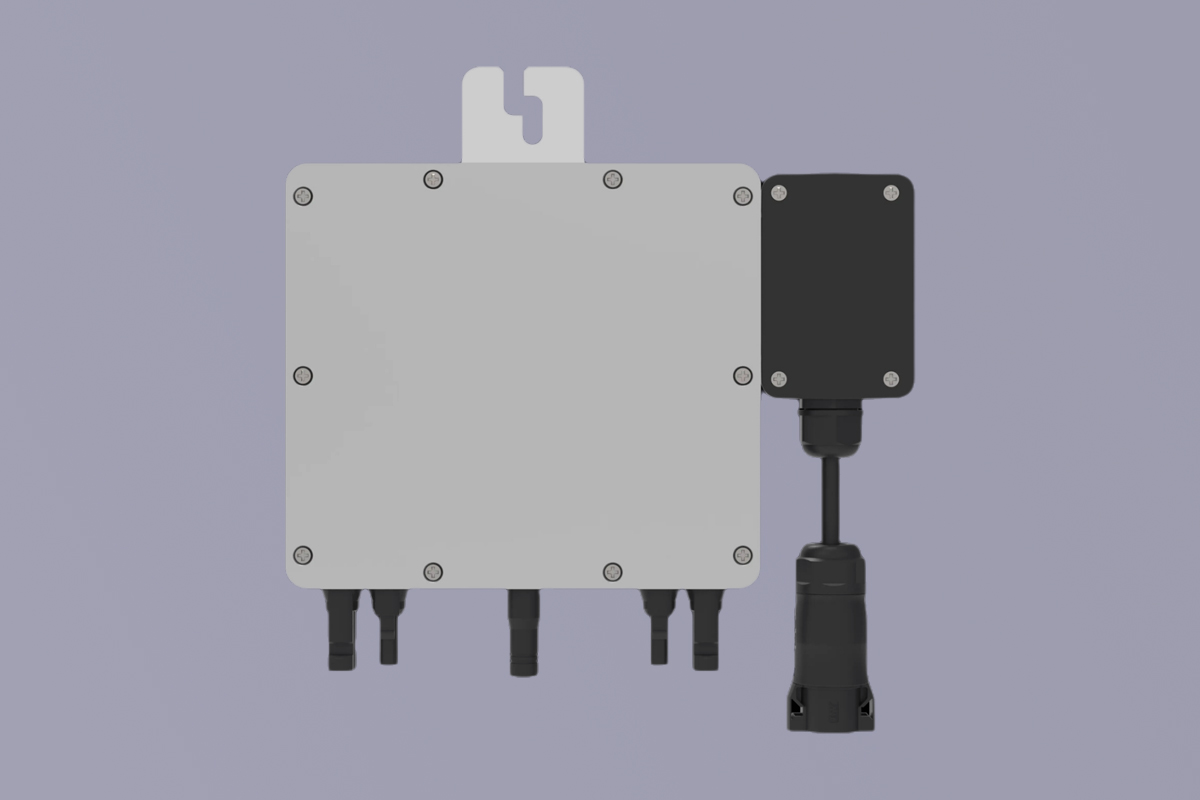

DEYE SUN-M6080100G4-EU-Q0 Micro Inverter (2)

DC PV Input Parameters

Item	All Models
Max PV Input Voltage	60 V
Startup Voltage	20 V
MPPT Operating Range	25 ~ 55 V
Rated PV Voltage	42.5 V
Max Operating DC Current	13 A + 13 A
Max DC Short Circuit Current	19.5 A + 19.5 A
MPPT Quantity / Strings per MPPT	2 / 1 string each tracker

AC Output Parameters

Item	SUN-M60	SUN-M80	SUN-M100
Rated AC Active Power	600 W	800 W	1000 W
Max AC Apparent Power	600 VA	800 VA	1000 VA
Rated Output Current	2.7 A	3.5 A	4.4 A
Max Output Current	2.8 A	3.7 A	4.6 A
Grid Connection	Single-phase L+N+PE
Rated Grid Voltage	220/230 V (0.85Un ~ 1.1Un)
Grid Frequency Range	45 ~ 55 Hz
Power Factor Range	0.95 lagging ~ 0.95 leading
THDi (Rated Load)	＜3%
DC Injection Component	＜0.5% In
Max Units Per Branch	8 pcs

Integrated Protection Functions

DC reverse polarity protection, AC overcurrent/overvoltage/short-circuit protection, overheat protection, insulation impedance detection, DC component monitoring, anti-islanding protection, rapid shutdown, NS self-test protection; Type II surge protection on DC & AC sides.

Ideal Applications

European balcony plug-and-play mini PV systems
Small household rooftop distributed solar
Balcony portable solar power stations
Apartment residential self-consumption PV
Low-power off-grid small solar systems
