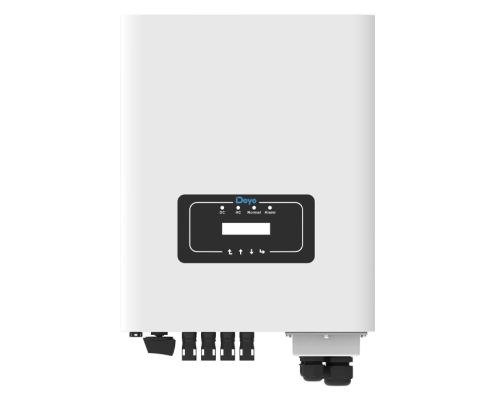

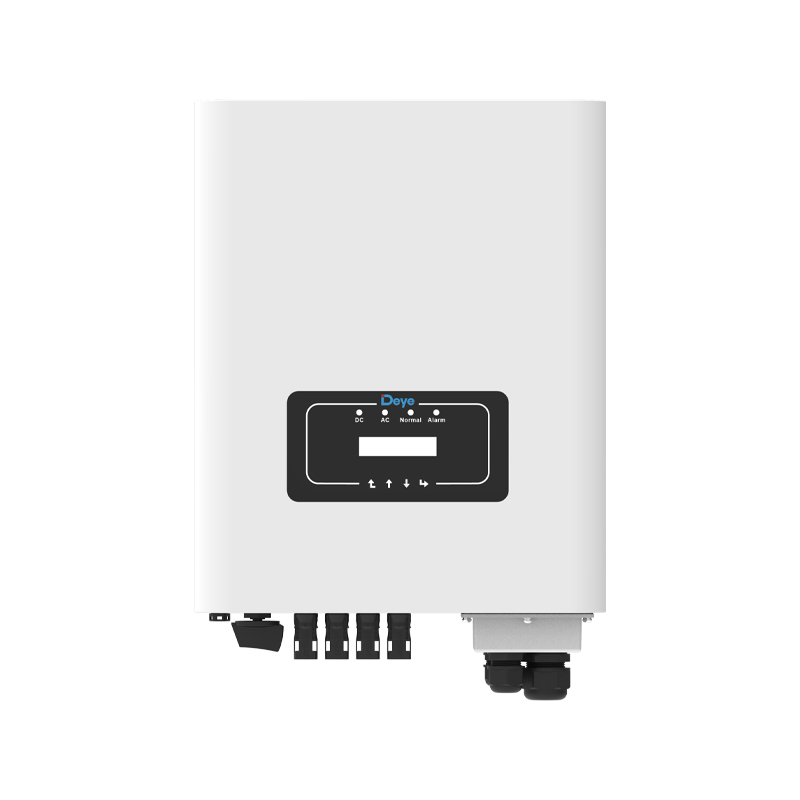

DEYE SUN-9/10K-G02P1-EU-AM2 Single-Phase String On-Grid Inverter

Authorized Distributor: SMARAAD

Overview

As official authorized DEYE distributor, SMARAAD supplies SUN 9~10kW single-phase grid-tied string inverters. Equipped with dual independent MPPT trackers and ultra-low 80V startup voltage, it supports diesel generator parallel, optional string monitoring and anti-PID function. Ideal for medium-sized residential and small commercial distributed PV systems.

Dual MPPT trackers, max conversion efficiency up to 97.7%
Ultra-low startup voltage 80V for weak light performance
Frequency droop control compatible with diesel generators
Optional intelligent string monitoring & anti-PID function
Wide AC voltage range, zero export & VSG operation modes
IP65 outdoor cabinet, silent natural cooling
Full electrical protection & Type II DC/AC surge protection
5-year standard warranty, extendable

Get A Quote

Basic Information

Item	Specification
Model Series	SUN-9K / 10K-G02P1-EU-AM2
Inverter Type	Non-isolated single-phase string inverter
Mounting	Wall-mounted
Protection Grade	IP65
Cooling Mode	Natural cooling
Noise Level	≤35dB
Operating Temp	-25℃ ~ +60℃, power derating above 45℃
Humidity	0–100% non-condensing
Max Altitude	3000m
Dimension (W×H×D)	330 × 410 × 213.5 mm
Net Weight	14.8kg
Standard Warranty	5 years
Certifications	IEC 61727, IEC 62116, EN 50549, CE & full EMC compliance

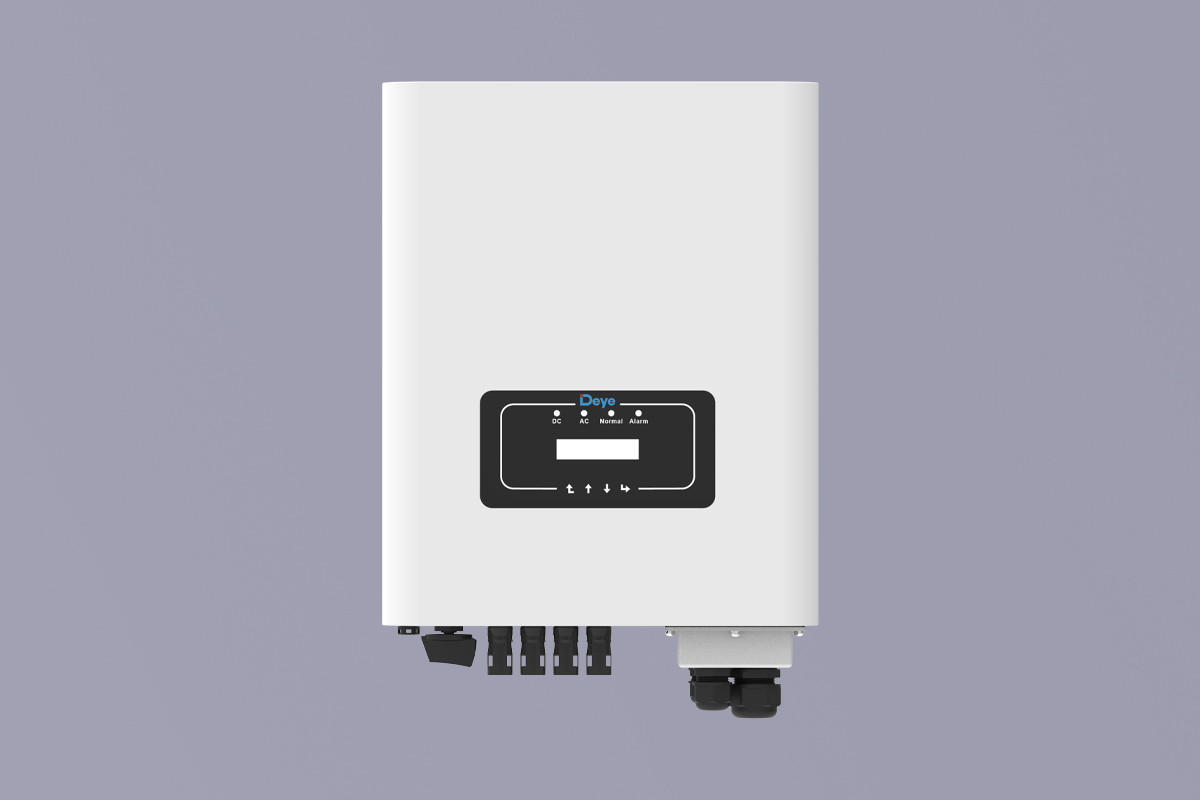

DEYE SUN-910K-G02P1-EU-AM2 Single-Phase String On-Grid Inverter (2)

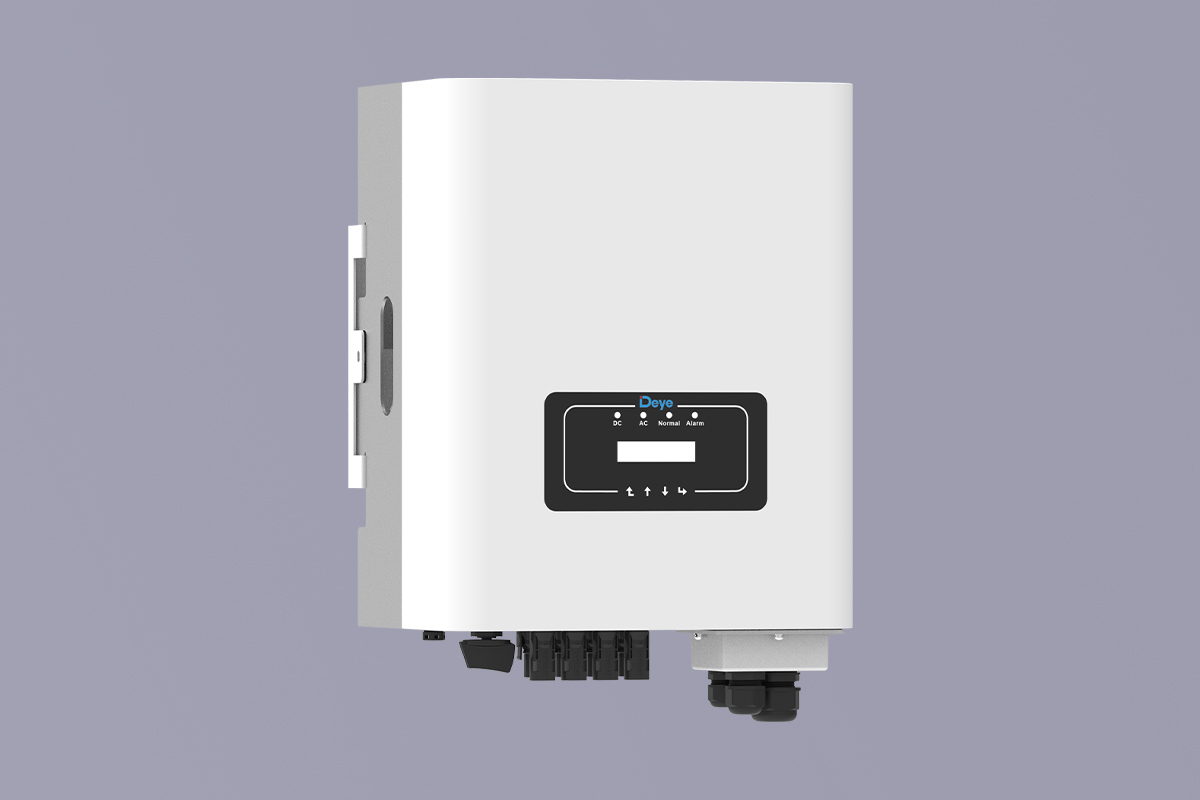

DEYE SUN-910K-G02P1-EU-AM2 Single-Phase String On-Grid Inverter (3)

DC PV Input Parameters

Item	SUN-9K	SUN-10K
Max DC Input Power	13.5kW	15kW
Max PV Voltage	550V	550V
Startup Voltage	80V	80V
MPPT Operating Range	70–500V	70–500V
Rated PV Voltage	360V	360V
Max Operating DC Current	26+26A	26+26A
Max DC Short Circuit Current	39+39A	39+39A
MPPT Quantity / Strings per MPPT	2 / 2+2	2 / 2+2

AC Output Parameters

Item	SUN-9K	SUN-10K
Rated AC Active Power	9kW	10kW
Max AC Apparent Power	9.9kVA	11kVA
Rated Output Current	41/39.2A	45.5/43.5A
Max Output Current	45/43.1A	50/47.9A
Grid Connection	Single-phase L+N+PE, 220/230V 50Hz
Power Factor Range	0.8 lagging ~ 0.8 leading
THDi (Rated Load)	＜3%
DC Injection Component	＜0.5% In

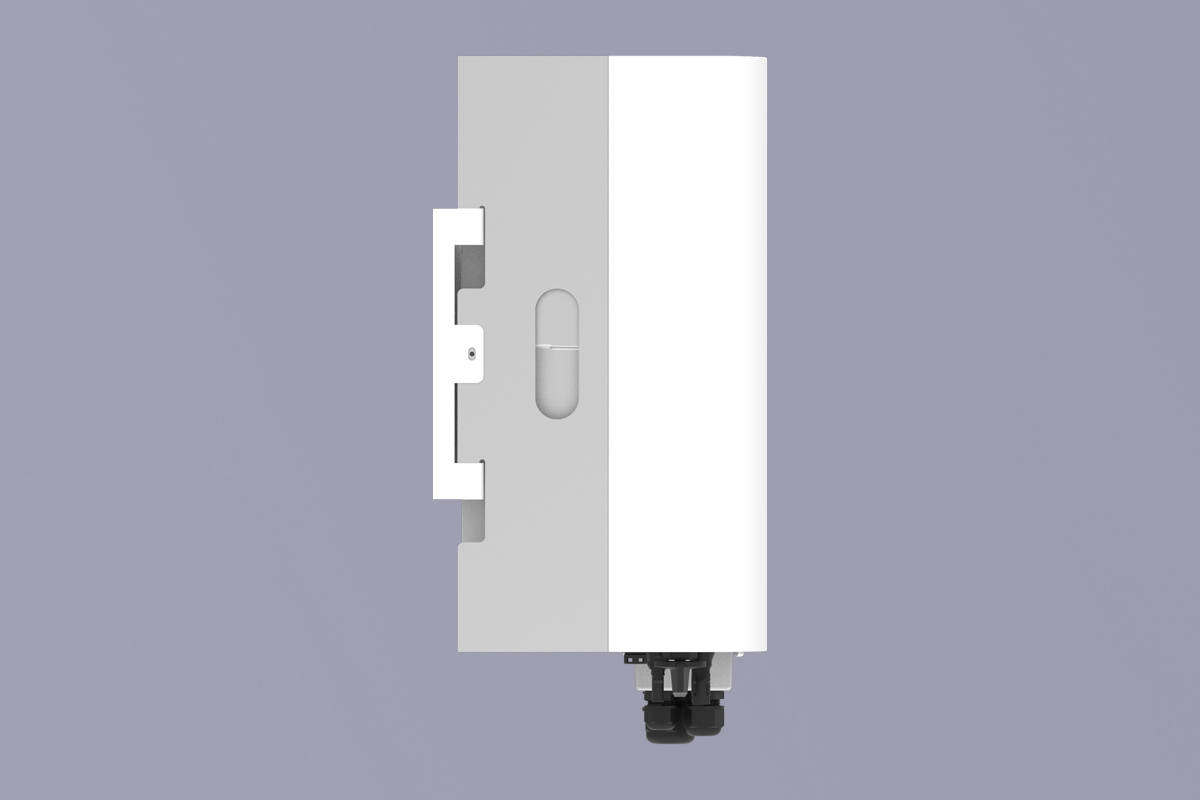

DEYE SUN-910K-G02P1-EU-AM2 Single-Phase String On-Grid Inverter (4)

Integrated Protection List

DC reverse polarity protection, AC overcurrent/overvoltage/short-circuit protection, overheat protection, insulation impedance detection, DC component monitoring, anti-islanding protection, built-in DC switch, residual current detection, AFCI arc fault protection; Type II lightning surge protection on DC & AC sides.

Ideal Applications

Medium-size household rooftop PV systems
Small commercial distributed solar power stations
Diesel-solar hybrid microgrid power generation
Zero-export self-consumption photovoltaic projects
PV system renovation & expansion

Contact Us

For quotations, technical datasheets, bulk orders and technical support of SUN-9/10K-G02P1-EU-AM2 inverters, contact SMARAAD sales team. We provide customized residential & small commercial PV solutions with stable delivery.
